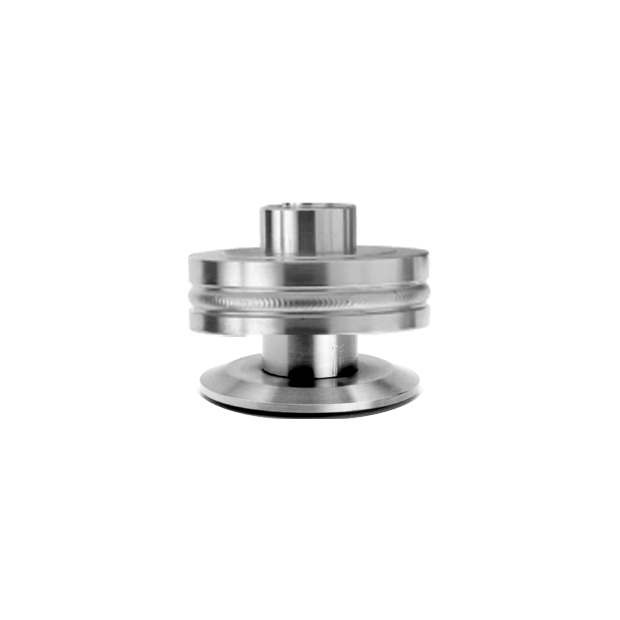

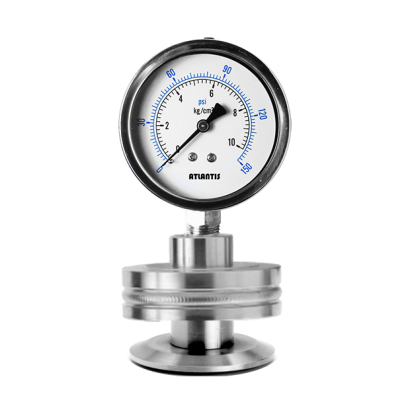

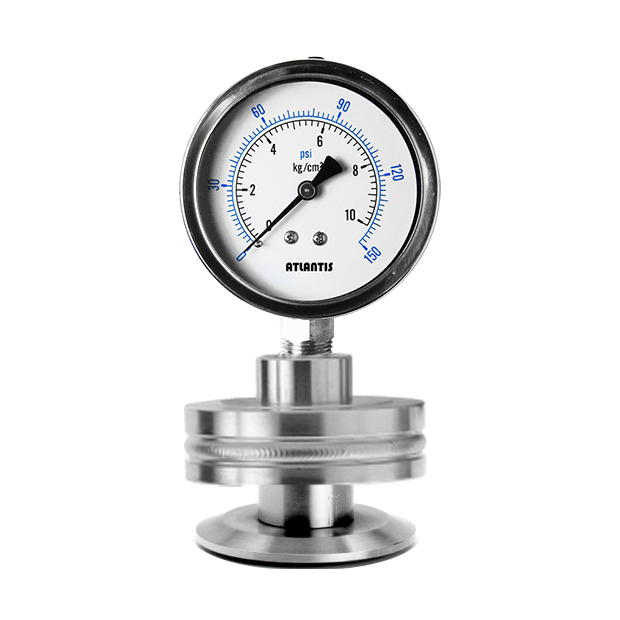

Diaphragm Pressure Gauge All welded Diaphragm Seals with Small Base DS170(W)
Diaphragm Pressure Gauge All welded Diaphragm Seals with Small Base DS170(W)
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities.
DS170(W) + Ferrule series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction…etc.
DS170(W) + Ferrule series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction…etc.
DETAIL
APPLICATIONS
Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities.
DS170(W) + Ferrule series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction…etc.
SPECIFICATIONS
Instruments All stainless pressure gauges or pressure transmitters
▼
Process Connection （Tri-Clamp）
Diaphragm housing material：SUS304；SUS316；SUS316L
Tri-clamp － 1/2“ ； 3/4” ； 1” ；
1-1/2“ ； 2” ； 2-1/2“
Other clamp sizes available made-to-order
▼
Diaphragm Housing
Diameter：Φ70 mm (standard)
Material：SUS304；SUS316；SUS316L
▼
Diaphragm SUS316L
▼
Coating (option) Teflon；PFA
▼
Temperature
medium +80℃；ambient 10 to 60℃
for medium 80~400℃ or ambient below 10℃ available made-to-order
▼
Pressure Range
Tri-clamp 1/2“ ； 3/4” ； 1” ；
1-1/2“ ：
0/2.5 ~ 0/40 kg/cm2 (bar)
Tri-clamp 2” ：
-760mmHg ~ 40kg/ cm2 (bar)
Tri-clamp 2-1/2“ ：
-760mmHg ~ 40kg/ cm2 (bar)
▼
Accessory
Clamp ring (ferrule)
