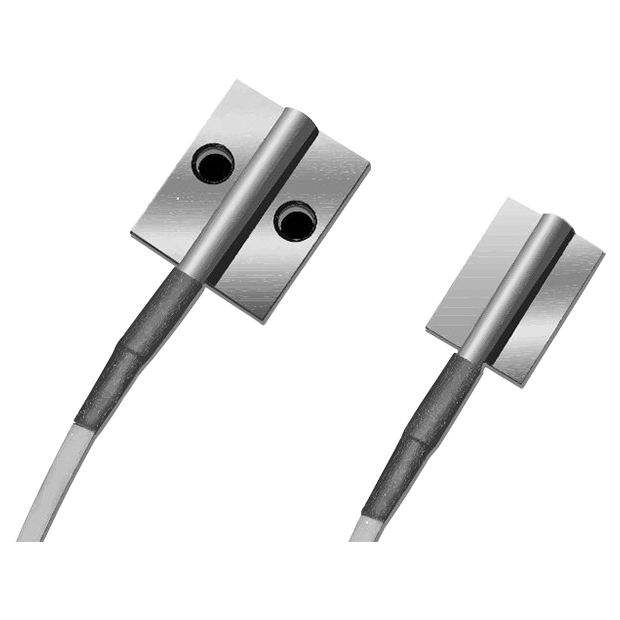

Surface Mounting Type Temperature Sensor STS-02
Surface Mounting Type Temperature Sensor STS-02
Features
■ Specially designed for metal／plastic rough surface temperature measurement
■ Surface adhesive／bolt-on type available for various environments
■ Temperature measurement range: -40 to 250℃
■ Fast respond to ambient temperature
■ High accuracy - comply with DIN IEC751 A Class
■ Easy installation
■ Weather-proof, anti-corrosive design
■ Specially designed for metal／plastic rough surface temperature measurement
■ Surface adhesive／bolt-on type available for various environments
■ Temperature measurement range: -40 to 250℃
■ Fast respond to ambient temperature
■ High accuracy - comply with DIN IEC751 A Class
■ Easy installation
■ Weather-proof, anti-corrosive design
DETAIL
Model: STS-02
Features
■ Specially designed for metal／plastic rough surface temperature measurement
■ Surface adhesive／bolt-on type available for various environments
■ Temperature measurement range: -40 to 250℃
■ Fast respond to ambient temperature
■ High accuracy - comply with DIN IEC751 A Class
■ Easy installation
■ Weather-proof, anti-corrosive design
Main specifications
▼Installation type
Surface adhesive (with high heat-resistance adhesive)／Bolt-on
▼Sensor type
Pt100／Pt500／Pt1000／K type thermocouple
▼Measurement range
-40 to 250℃
▼Ambient temperature
-40 to 250℃
▼Storage temperature
-10 to 70℃
▼Storage humidity
20~90%RH
▼Applicable media
Corrosive media that compatible with SS316 such as gasoline, acetone, clean liquid acid and alkali agent
▼Protection level
IP68
▼Accessory
Mounting screws
Other specifications
▼Plate material
SS316
▼Plate size
Surface adhesive▼
15 x 20 x 1mm
Bolt-on▼
20 x 25 x 1mm
▼Signal cable material
PVC／Silicone rubber／Teflon
▼Signal cable length
5M／10M
Other length available upon request
▼Response time
≤ 15secs
▼Accuracy
Comply with
DIN IEC751 A Class
▼Thermal conductivity
<100℃: ≥0.8W/mk
>120℃: >1.5W/mk ASTM D5470
▼Mechanical strength
Tension▼
950psi ASTM D412
Extensibility▼
300% ASTM D412
Tear strength▼
150 lb/in2 ASTM D624
▼Weight
About 200g (exclude wire)
