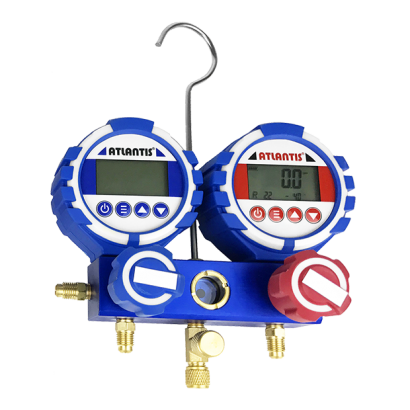

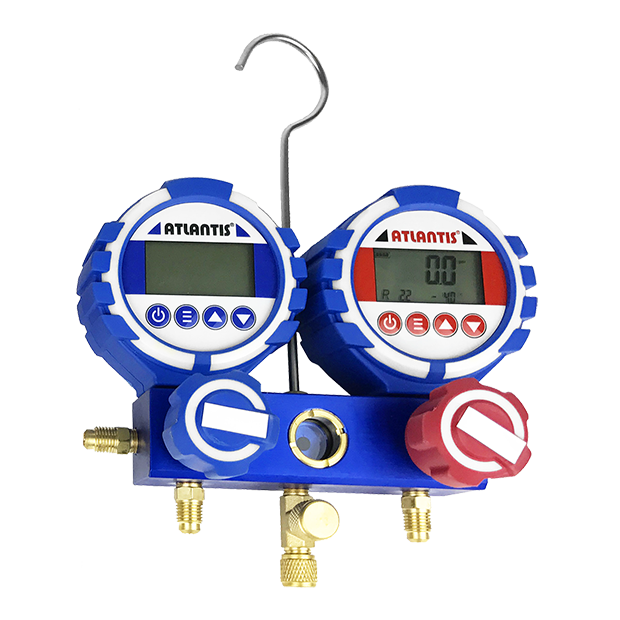

Digital Refrigeration Gauge (Dual Gauge Type) FDPG-2-S1
Digital Refrigeration Gauge (Dual Gauge Type) FDPG-2-S1
FDPG-2-S1 dual digital refrigeration gauge can simultaneously display pressure and temperature on LCD screen. It also applicable to measure vacuum pressure.
FDPG-2-S1 is suitable in pressure and temperature measurement for non-corrosive refrigeration, liquid and alcohols. It has been widely applied in vacuum refrigeration system assembly and maintenance operation.
FDPG-2-S1 is suitable in pressure and temperature measurement for non-corrosive refrigeration, liquid and alcohols. It has been widely applied in vacuum refrigeration system assembly and maintenance operation.
DETAIL
Model: FDPG-2-S1
Introduction
FDPG-2-S1 dual digital refrigeration gauge can simultaneously display pressure and temperature on LCD screen. It also applicable to measure vacuum pressure. FDPG-2-S1 is suitable in pressure and temperature measurement for non-corrosive refrigeration, liquid and alcohols. It has been widely applied in vacuum refrigeration system assembly and maintenance operation.
Features
■ Dual digital refrigeration gauge with four 1/4”SAE and one 3/8”SAE connections to separately display pressure and temperature from different refrigerant source
■ Maximum measurable pressure 725psi
■ The hook design ensures easy-storage and prevents gauge from external impact.
■ 9 types of applicable refrigerants
■ 4-digit LCD screen with backlight, high refresh rate
■ Auto switch unit to inHg once vacuum pressure is detected
Main Specifications
▼Size
3.2”
▼Dimension
180 x 245 x 75mm
▼Pressure connection
1/4”SAE x4
3/8”SAE x1
▼Pressure range
Pressure: 0…725 psi
Vacuum pressure: -29.5…0 inHg
▼Applicable refrigerants
9 types
R22, R134A, R1234yf, R290, R404A, R407C, R410A, R32, R507
Not applicable to R171 (ammonia) and ammoniacontained refrigerants
▼Ambient temperature
-10 to 50℃ / -44 to 122℉
▼Storage temperature
-20 to 60℃ / -4 to 140℉
▼Ambient humidity
10~90% RH
▼Accessory
Blue refrigeration pipe x1
Yellow refrigeration pipe x1
Red refrigeration pipe x1
Other Specifications
▼Housing material
ABS/PC/TPE
▼Screen display
4-digit LCD with backlight
Screen size: 43 (W) x 24 (H)
Switchable pressure unit: psi, bar, kPa, MPa, kg/cm2
Switchable temperature units: ℃ / ℉
▼Refresh rate
1 sec/times
▼Resolution
Pressure: 1psi / 0.1bar / 10kPa / 0.01MPa / 0.1kg/cm2
Vacuum pressure: 0.5inHg
▼Accuracy
Pressure: ±2psi / ±0.2bar / ±20kPa / ±0.02MPa / ±0.2kg/cm2
Vacuum pressure: ±1inHg
▼Power supply
9V LR battery x1
Continuous working hours: 20 hrs
▼Maximum pressure
1.5xF.S.
▼Weight
1035g (exclude battery)
