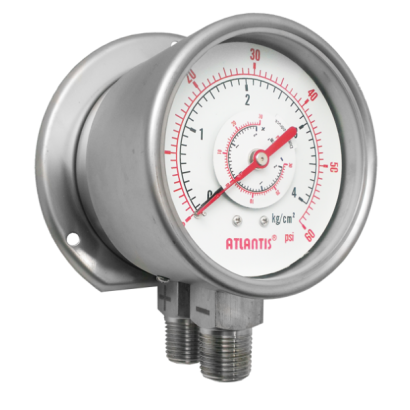

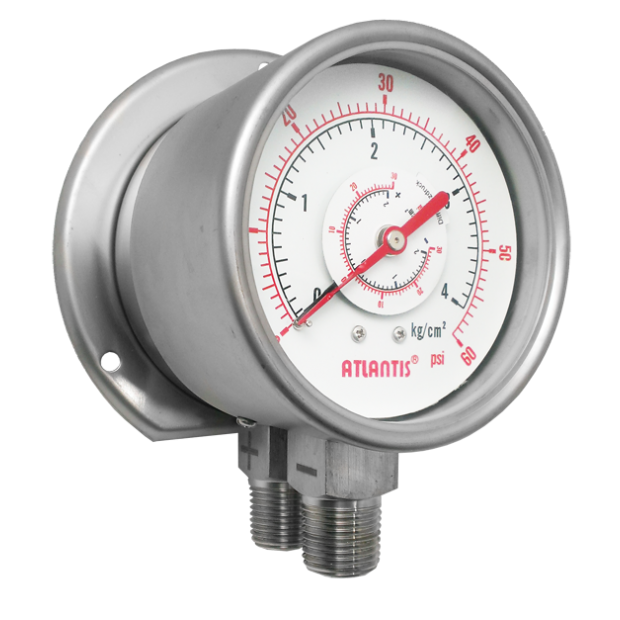

Model: MDB
Feature
■ OEM service
■ Dual Bourdon tubes front / rear measurement
■ Welded connection
■ All stainless steel design
■ Long service life
■ Max. Accuracy 1.6%
Main Specifications
▼Size
4”, 6”
▼Installation type

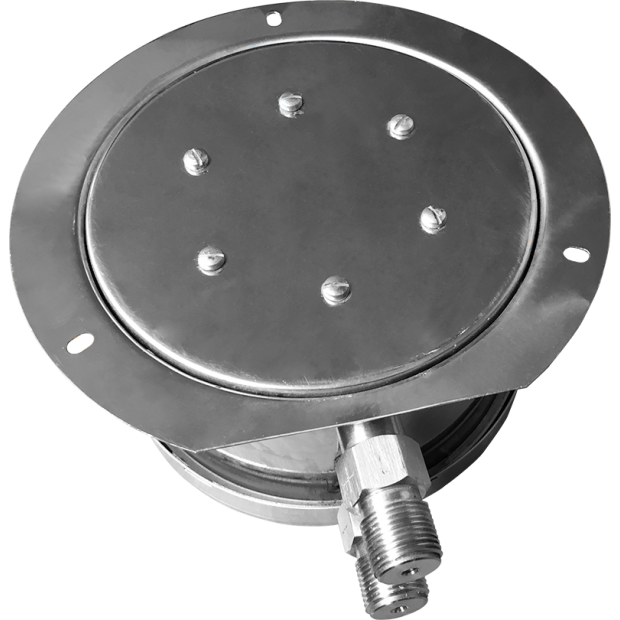

Bottom mount (A)／Bottom mount with front flange (BF)／Bottom mount with back flange (BB)
▼Window
PC (Standard)
Option: Acrylic／Safety glass
▼Pressure connection
Material: SS304
Welded connection
Dual Bourdon tubes front／rear connection
Thread size: 1/2”
Thread type: PT／NPT／PF
▼Thread hole pitch (Calculate from the center of the thread)
32mm (Standard)
23／26.5／35／37mm (Option)
▼Differential pressure range
0…1 to 60 bar
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+100°C
▼Temperature drift
Standard: 20°C
Every±8°C
max. error ±0.5% F.S
▼Protection level
IP54
Other Specifications
▼Ring
Stainless steel
▼Ring mount
Screw fixed
▼Case
SS 304
▼Pointer
Standard pointer▼
Aluminum with black enamel
Dial pointer▼
±50% indicates the positive and negative value of different pressure
▼Dial face
Red and black scale
▼Measuring elements
Dual bourdon tubes
Material: SS304
▼Movement
Copper alloy
▼Accuracy
2.5% (Standard)／
1.6% (Option)
▼Maximum static pressure
1* full scale
▼Operation pressure
Standard: 0.9* full scale
Fluctuation: 0.8* full scale
