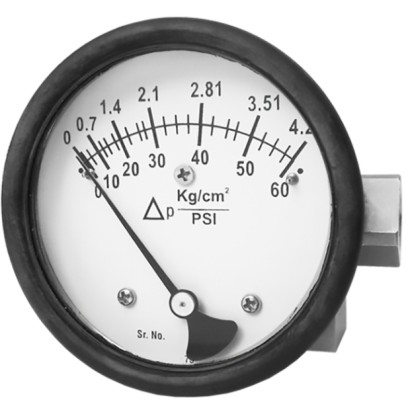

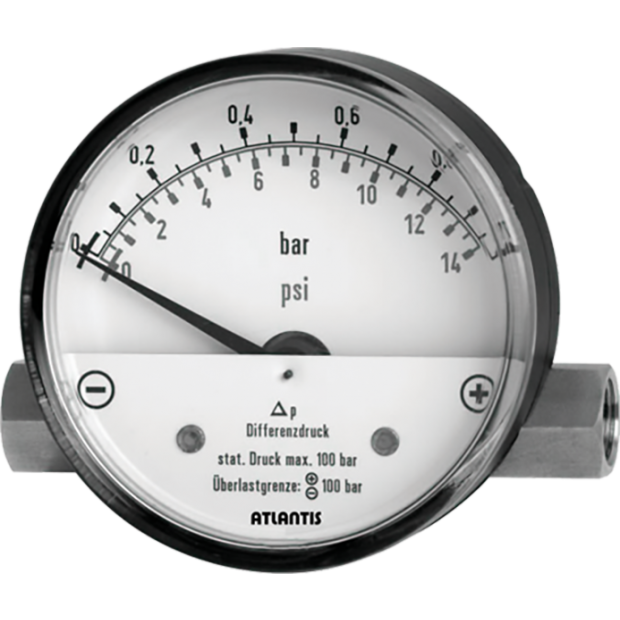

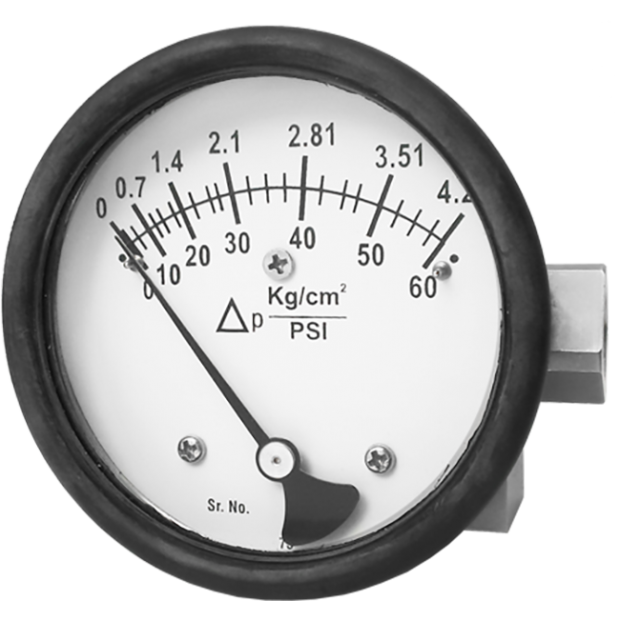

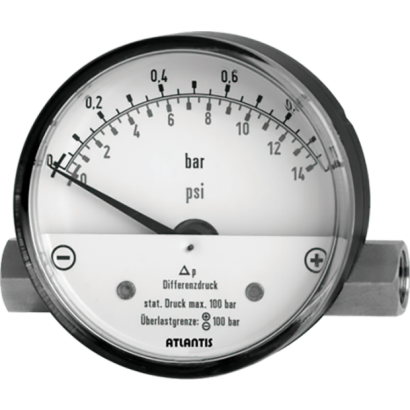

Model: MDH-90EXC
Features
■ OEM service
■ Adopts magnetic piston as measuring elements
■ Optional diaphragm as measuring elements with aluminum case available
■ Wide pressure range application: Micro/low/medium/high pressure
■ Full scale reading have been calibrated to ensure its high accuracy
Main Specifications
▼Size
Φ2.5", Φ4", Φ4.5"
(option: Φ96mm)
▼Window
Safety glass
▼Installation type
Left-right side mount (LR)／Bottom mount (A)／Back mount (AD)
▼Connection material
Magnetic piston▼
SS316
Diaphragm▼
Aluminum alloy
▼Pressure connection
Size: 1/4”,1/2”
Type: BSP (F), NPT (F)
Other thread specifications are available, please specify
▼Differential pressure range
0…9 to 100 psi (Minimum measureable pressure 25mmAq available upon request)
▼Applicable fluid
Liquid and gas that compatible with stainless steel
▼Liquid-filling (option)
Glycerin／Silicone oil
▼Ambient temperature
0°C to +60°C
▼Fluid temperature
+80°C
▼Protection level
IP54
Other Specifications
▼Ring material
Rubber
▼Ring mount
Outside bayonet Snap-in
▼Case
Magnetic piston▼
SS316
Diaphragm▼
Aluminum alloy
▼Pointer
Aluminum with black enamel
▼Dial face
All black scale
▼Measuring elements
Magnetic piston／Diaphragm
▼Movement
Stainless steel
▼Accuracy
±3.0%F.S.
(option: ±2.0%F.S.)
▼Operating pressure
Steady Pressure 0.9* full scale
Fluctuating pressure 0.8* full scale
▼Static pressure
≤100bar (option: 200/400bar)
