Model: MP-SUS
Introduction

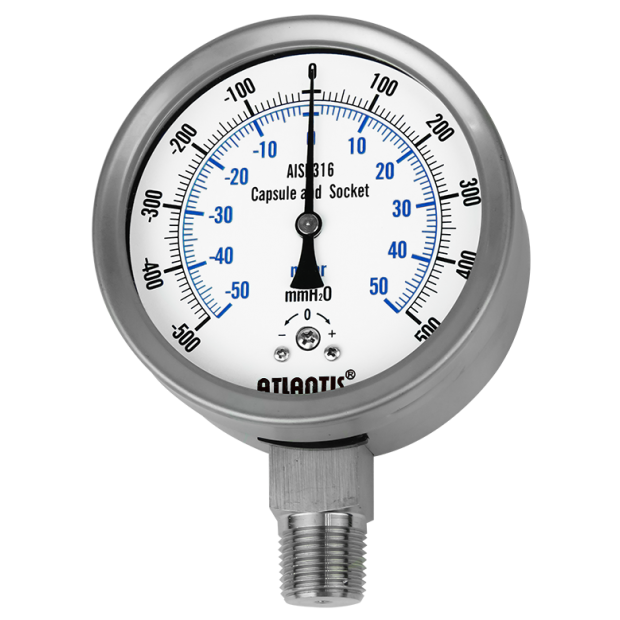

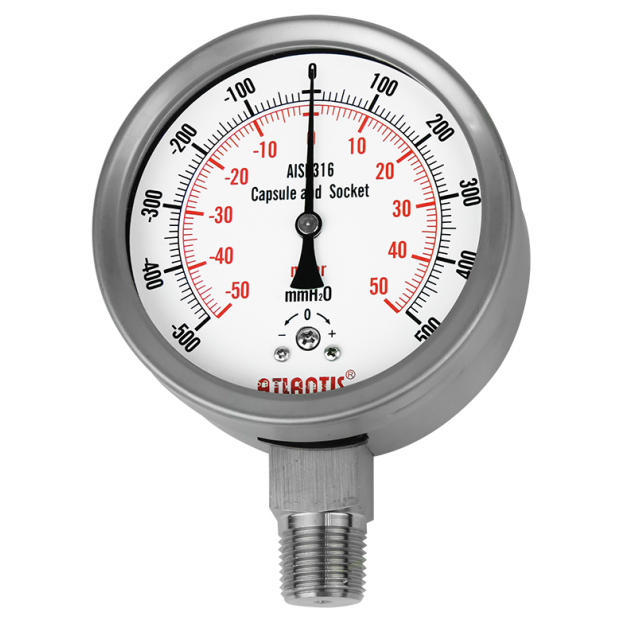

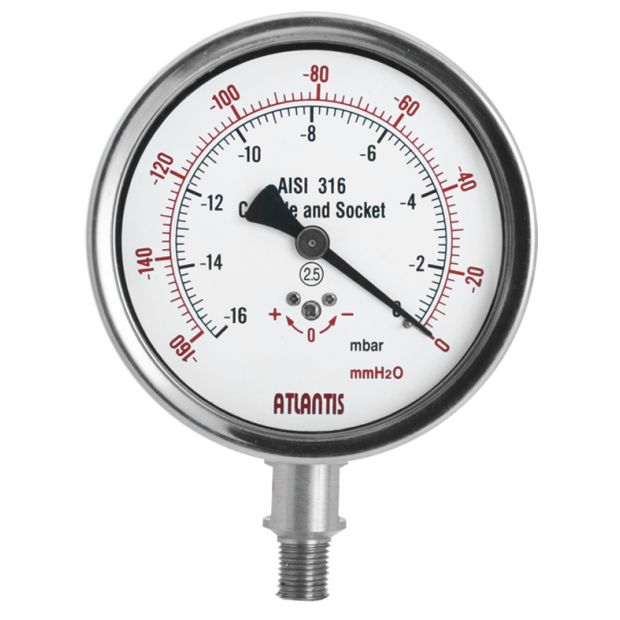

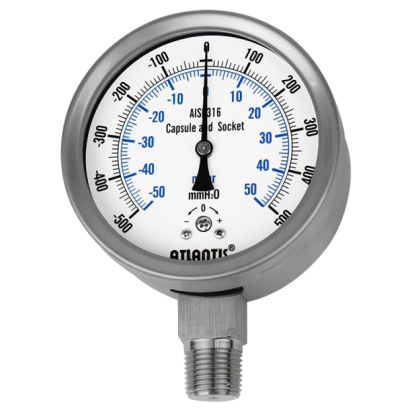

MP-SUS pressure gauge is suitable for slightly corrosive media micro pressure measurement in sanitary required environment.
Features
■ OEM service
■ Specially design for micro pressure measurement
■ All stainless steel design
■ Welded connection structure
■ Minimum measurable micro pressure ±25 mmAq (Only available for 6”)
Main specifications
▼Size
4”,6”
▼Installation type
Bottom mount (A) / Bottom mount with flange (B) / Back mount (eccentric thread) (ADE) / Back mount with flange (eccentric thread) (BDE) / Back mount with U-Clamp (Eccentric thread) (UDE) /
Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
▼Window
Glass / Safety glass
▼Pressure connection
Material: SS316
Thread size: 1/4”, 3/8”,1/2”
Thread type: BSPT, NPT, PF
Other thread specifications please specify before order
▼Pressure range
Gauge pressure▼
4”: 0…160 to 6000 mmAq
6”: 0…25 to 6000mmAq
Negative pressure▼
-6000….0 mmAq
Compound pressure▼
4”: ±80 to ±3000mmAq
6”: ±15 to ±3000mmAq
▼Applicable fluid
Liquid and gas that compatible with SS316
▼Ambient temperature
-20°C to +60°C
▼Fluid temperature
+100°C
▼Temperature drift
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54 (Option: IP65)
Other Specifications
▼Ring material
Stainless steel
▼Ring mount
Inside bayonet
▼Case
SS304
With air outlet
▼Pointer
Aluminum with black enamel
▼Dial fact
Blue & black scale
Adjustable screw on dial face
Pressure unit, scale & color can be customized upon request
Micro pressure unit▼
kPa, mbar, mmH2O, mmAq, mmWC, inH2O
▼Measuring elements
Capsule
Material: SS316
▼Movement
Stainless steel
▼Accuracy
±3% (Option: ±1.6%)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
