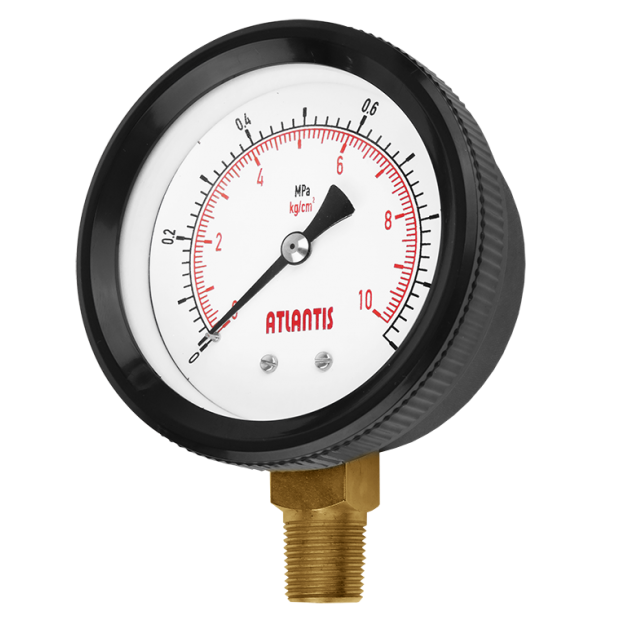

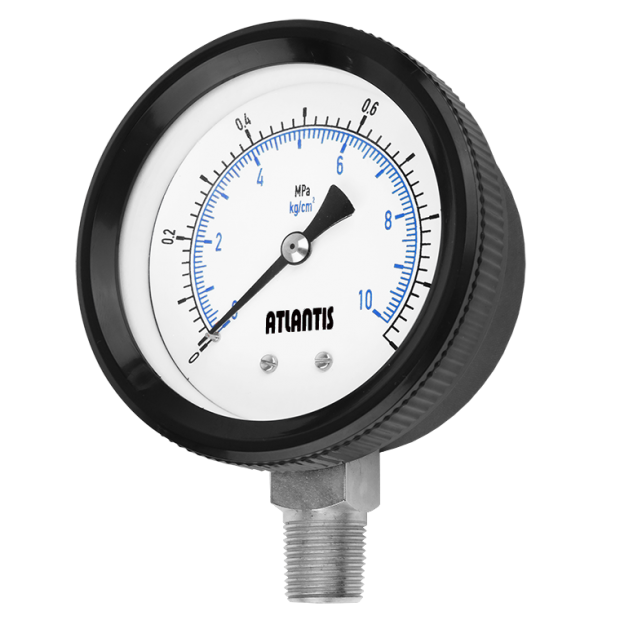

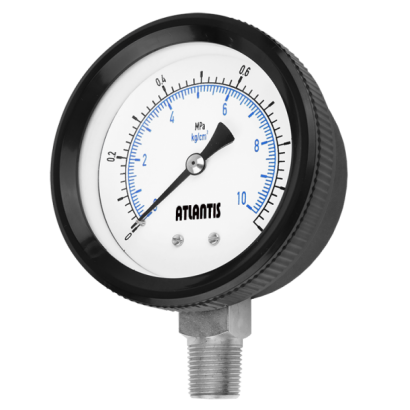

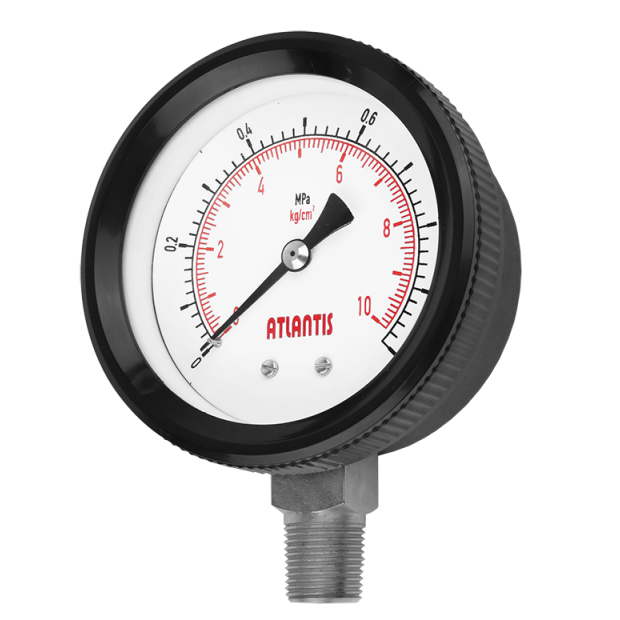

Model: ABS
Introduction
ABS plastic case pressure gauge has various size and installation type for selection. It applicable to measure slight corrosive media that compatible with connection’s material.
Features
■ OEM service
■ Affordable price
■ Case material adopts reinforced plastic ABS
Main specifications
▼Size
1.5”, 2”, 2.5”,3”, 4”
▼Installation type
Bottom mount (A)／Back mount (ADC)
▼Window
PC
▼Pressure connection
Material: copper alloy / SS304
Thread size: 3/8”,1/2”, 1/4”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…1 to 350 bar
Negative pressure▼
-1…0bar／-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C (Copper alloy)
+100°C (Stainless steel)
▼Temperature drift
Every 12°C
max. error: ±0.3% F.S
▼Protection level
IP54 (Std.) / IP65 (option)
Other specifications
▼Ring
Reinforced plastic ABS
▼Ring mount
Outside bayonet
▼Case
Reinforced plastic ABS
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Other pressure unit, scale & color available upon request
▼Measuring elements
Bourdon tube
Material: copper alloy／SS304
▼Movement
Copper alloy
▼Accuracy
±3% (Option: ±2.5%, ±1.6%)
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
▼Other requests
Third party notarized documents
Inspection report
Tag
Customized dial face (scale, color, etc.)
Install a diaphragm seal
Peak hold pointer
Dampened movement
Indicator (red, green yellow)
