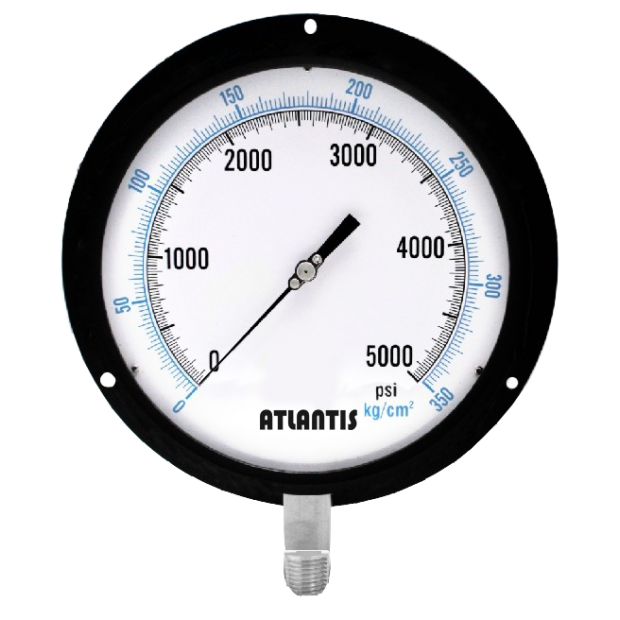

Aluminum Case Large Size Pressure Gauge LS-AL

LS-AL are supplied with an aluminum back flange case with black enamel. Large size pressure gauge are suitable where the distance is a factor and the gauge needs expanded dial face to increase its legibility without visual error.

quantity :

－＋

Aluminum Case Large Size Pressure Gauge
Model: LS-AL

Introduction
LS-AL are supplied with an aluminum back flange case with black enamel. Large size pressure gauge are suitable where the distance is a factor and the gauge needs expanded dial face to increase its legibility without visual error.

Features
■ OEM service
■ Adopts aluminum case with black enamel design
■ 8”~12”expanded dial face increases legibility
■ Specially design for apparatuses need to read pressure value from remote place
■ Impact and vibration resistance

Main Specifications
▼Size
8”, 10”, 12”
▼Installation type
Bottom mount with flange (B) /
Lower back mount with flange (BDE)
▼Window
Material: Glass
With rubber O-ring sealed
▼Pressure connection
Material: Copper alloy / SS316 / Monel K400
With rubber O-ring sealed
Size: 3/8”, 1/2”, 3/4”
Type: BSPT, NPT, PF
Other thread spec. available upon request
▼Pressure range
Positive pressure▼
0…0.4 to 1600bar
Vacuum pressure▼
-1 bar/-30inHg/-76cmHg
Compound pressure▼
-1…0 to 100bar
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Ambient temperature
-40°C to +80°C (Dry)
▼Media temperature
+60°C (Brass)
+125°C (Stainless steel)
+300°C (with cooling element)
▼Temperature error
Every ±12℃
max. error: ±0.3% F.S
▼Protection level
IP54

Other Specifications
▼Ring
Aluminum alloy with black enamel
Threaded ring
▼Case
Aluminum alloy with black enamel
▼Pointer
Anodized Aluminum with black enamel
▼Dial face
Blue and black scale
Customized pressure unit on dial (single/dual scale)
▼Measuring elements
Bourdon tube
Material: Copper alloy / SS316 / Monel K500
▼Movement
Stainless steel
With overload & underload stops
▼Accuracy
±1.6%F.S. (standard) / ±1.0%F.S. (option)
▼Operating pressure
Stabilization: 0.75* full scale
Fluctuation: 0.9* full scale
Impulse: 1.3* full scale
▼Weight
2.1-2.5 kg (8”)
2.7-3.1 kg (10”)
3.2-3.6 kg (12”)
