Model: LS-SUS
Introduction

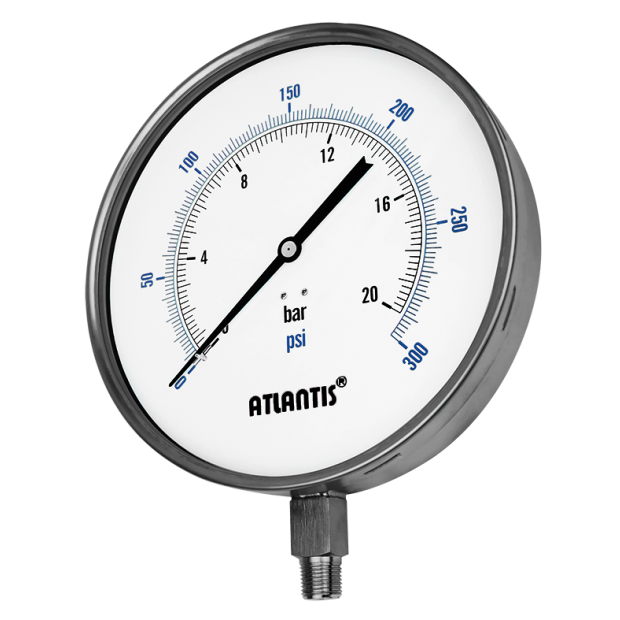

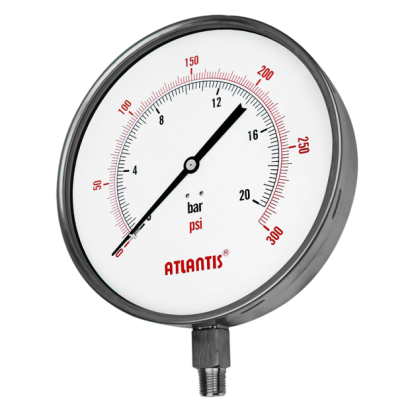

LS series pressure gauge features large dial face with clear readings, which is suitable for large apparatuses that require remote reading.
Features
■ OEM service
■ All Stainless steel design
■ Large size dial face increases legibility
■ Specially design for apparatuses need remote reading
■ Longer service life
Main Specifications
▼Size
8”, 10”
▼Installation type
Bottom mount (A)／Bottom mount with flange (B) / Back mount with flange (BDC)／Back mount with flange (Eccentric thread) (BDE)
▼Window
PC
(Option: tempered glass)
With O-ring sealed
▼Pressure connection
Material: SS304, SS316
Welded connection
Size: 3/8”, 1/2”, 3/4”
Type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar
Negative pressure▼
-1…0bar
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+120°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54
Other Specifications
▼Ring
Stainless steel
▼Ring mount
Inside bayonet
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue & black scale
Special large dial face
Pressure unit, scale, color can be customized upon request
▼Measuring elements
Bourdon tube
Material: SS304, SS316
▼Protection design (option)
Blow-out back
▼Movement
Stainless steel
▼Accuracy
±1.0%F.S. (standard) / ±0.5%F.S. (option)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
