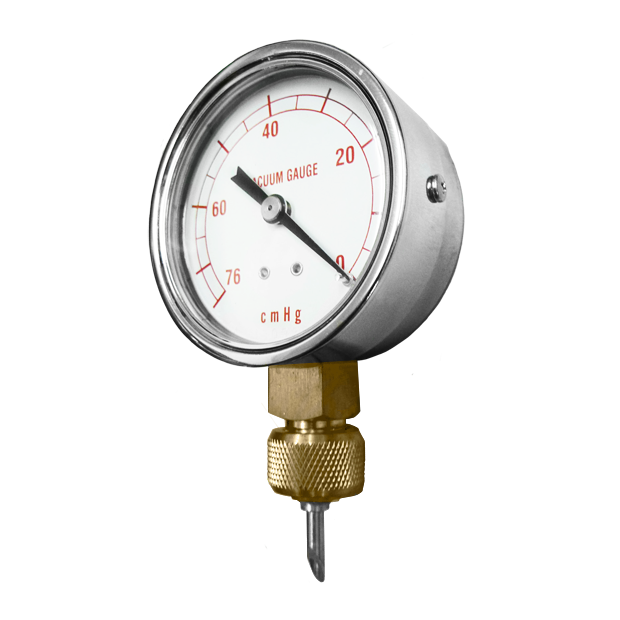

Can Vacuum Tester CVT
Can Vacuum Tester CVT
Features
■ Vacuum gauge with penetration needle
■ Specially designed for testing can vacuum
■ Socket material adopts silicone rubber
■ Vacuum gauge with penetration needle
■ Specially designed for testing can vacuum
■ Socket material adopts silicone rubber
DETAIL
Model: CVT
Features
■ Vacuum gauge with penetration needle
■ Specially designed for testing can vacuum
■ Socket material adopts silicone rubber
Main Specification
▼Size
2.5”
▼Window
PC
O-ring sealed
▼Pressure connection
Material: Copper alloy
1/4”PF
▼Pressure range
-76…0cmHg
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+65°C
▼Protection level
IP54
▼Accessory
Vacuum gauge with penetration needle
Copper nut
Silicone rubber socket
Other Specifications
▼Ring
Stainless steel
Screw fixed
▼Case
SS 304
▼Pointer
Aluminum with black enamel
▼Dial face
Red scale
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
±2.0%F.S.
