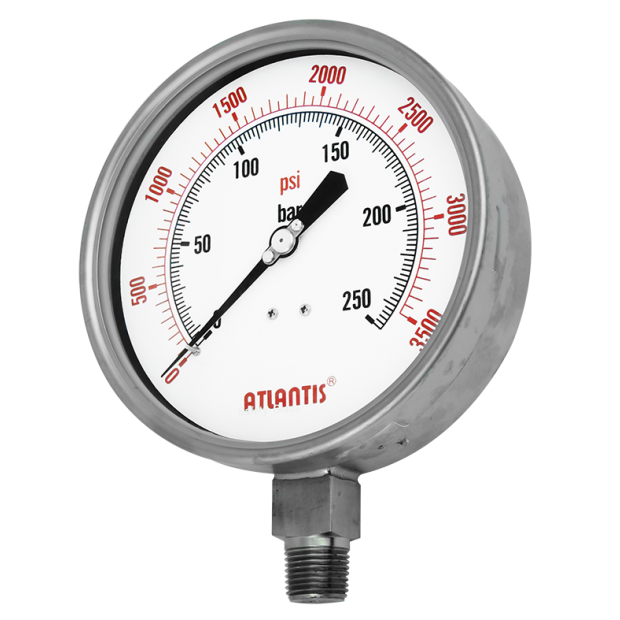

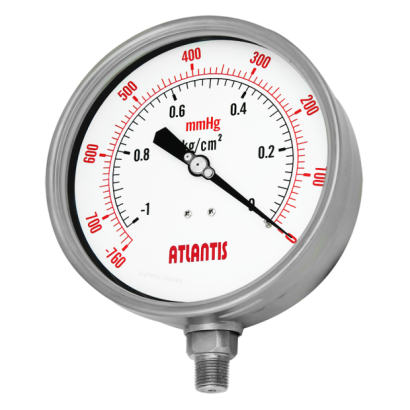

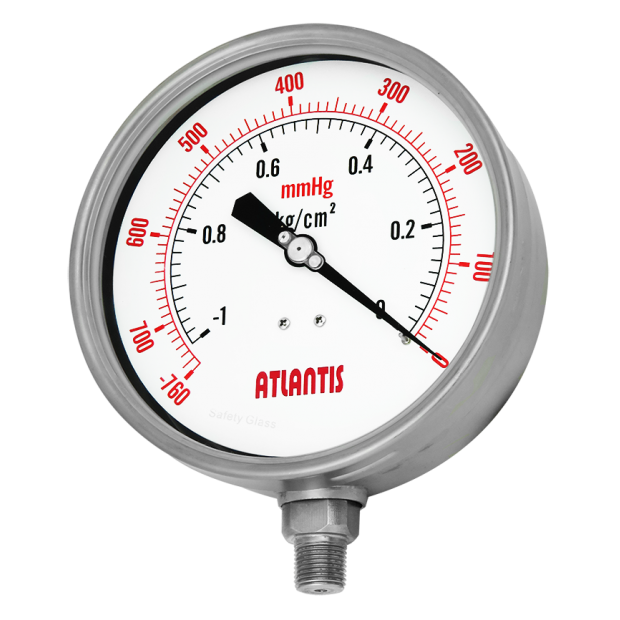

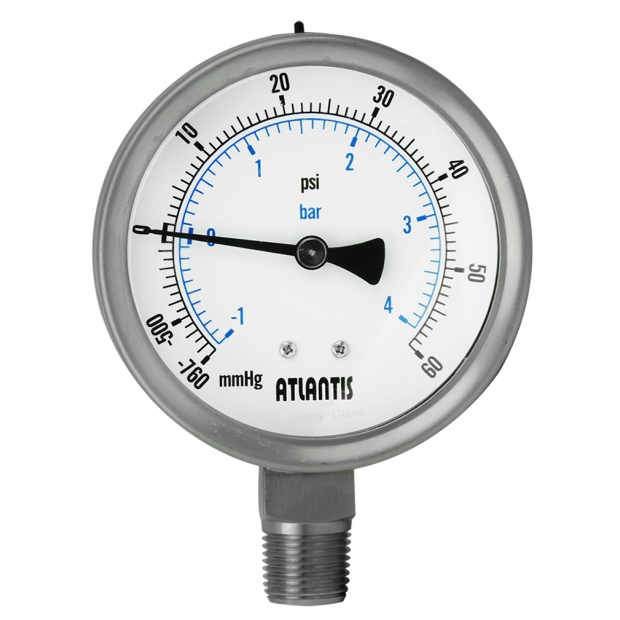

Model: SP-SUS
Introduction
This pressure gauge uses stainless steel dampened movement with excellent shockproof effect. Applicable for vibration but non-oil environment.
Features
■ OEM service
■ All stainless steel design
■ Dampened movement - specially design for shockproof environment
■ Suitable for use no oil environment with shockproof requirement
Main Specifications
▼Size
4”, 6”
▼Installation type
Bottom mount (A)／Bottom mount with flange (B)／Back mount (Eccentric thread) (ADE)／Back mount with flange (Eccentric thread) (BDE)／Back mount with U-clamp (Eccentric thread) (UDE)／
Back mount with flange and U-clamp (Eccentric thread) (UBDE)
▼Window
Safety glass
▼Pressure connection
Material: SS304
Thread size: 1/4”,3/8”,1/2”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 400bar
Negative pressure▼
-1…0bar／-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+120°C
▼Temperature error
Every 12°C
max. error±0.3% F.S
▼Protection level
IP54 (option: IP65)
Other Specifications
▼Ring
Stainless steel
▼Ring mount
Inside bayonet (Option: Outside bayonet)
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Pressure unit, scale, color, etc., can be customized upon request.
▼Measuring elements
Bourdon tube
Material: SS304
▼Additional protection (option)
Blow out back
▼Movement
Dampened movement
Material: stainless steel
▼Accuracy
±2.5%
(Option: ±1.6%, ±1%, ±0.5% )
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
