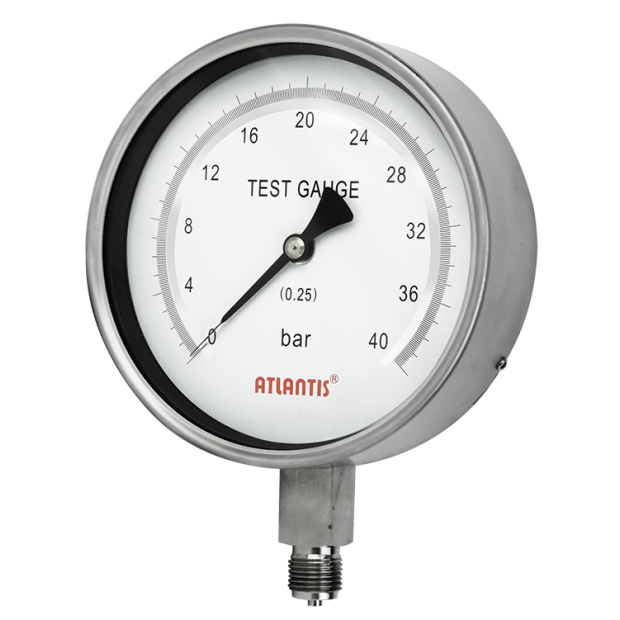

All Stainless Steel Precision Test Pressure Gauge TPG-SUS
All Stainless Steel Precision Test Pressure Gauge TPG-SUS
TPG series precision test pressure gauge features high accuracy with affordable price, which is suitable for calibration authority or laboratory that need high accuracy pressure measurement.
DETAIL
Model: TPG-SUS
Introduction
TPG series precision test pressure gauge features high accuracy with affordable price, which is suitable for calibration authority or laboratory that need high accuracy pressure measurement.
Features
■ OEM service
■ Stainless steel case pressure gauge with high accuracy performance
■ Accuracy can up to ±0.16%F.S.
■ Pointer adopts knife edge design, indicating the reading accurately
Main Specifications
▼Size
6”, 8”
▼Installation type
Bottom mount (A)／Bottom mount with flange (B)
▼Window
PC
Option: Tempered glass / Safety glass
With rubber O-ring sealed
▼Pressure connection
Material: SS304, SS316
With rubber O-ring sealed
Size: 3/8”, 1/2”
Type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar
Negative pressure▼
-1…0bar
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with Stainless steel
▼Ambient temperature
5°C to 40°C
▼Fluid temperature
+40°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54
Other Specifications
▼Ring
Stainless steel
Screw fixed
▼Case
SS304
▼Pointer
Aluminum with black enamel
Knife edge design
▼Dial face
Special dial face for precision readings
External zero adjustment
Pressure unit, scale, color can be customized upon requests
▼Measuring elements
Bourdon tube
Material: SS304 / SS316 / 50 chromium-vanadium steel
▼Movement
Copper alloy
▼Accuracy
±0.4%F.S. (Standard) / ±0.25%F.S. (Standard) / ±0.16%F.S. (Option: available for size 8”)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
