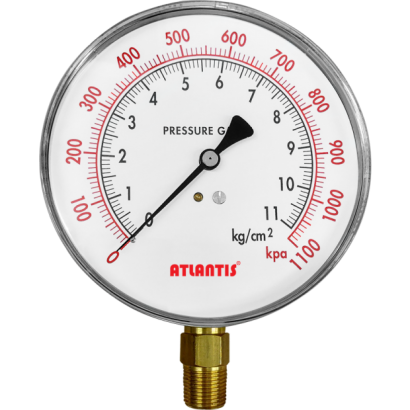

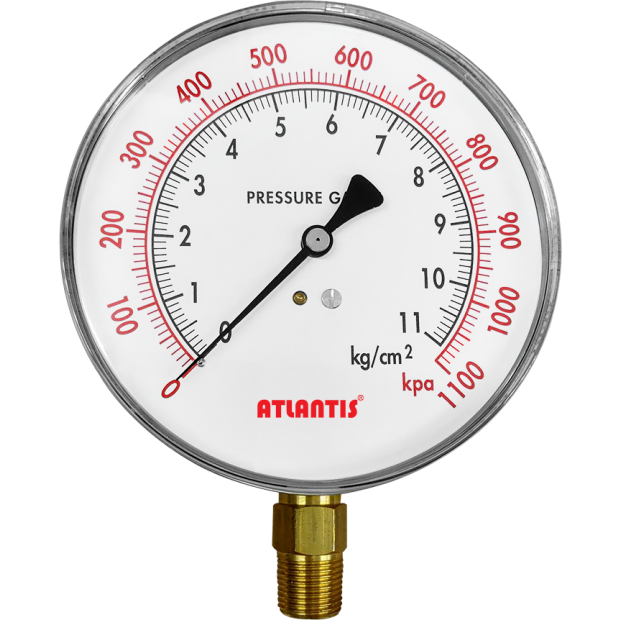

4.5／5”Stainless Steel Case Pressure Gauge With Zero Adjustment ZSC-4.5
4.5／5”Stainless Steel Case Pressure Gauge With Zero Adjustment ZSC-4.5
This special 4.5”black steel case pressure gauge with zero adjustment is suitable for general engineering or other application that required field pointer calibration.
DETAIL
Model: ZSC-4.5
Introduction
This special 4.5”black steel case pressure gauge with zero adjustment is suitable for eneral engineering or other application that required field pointer calibration.
Features
■ OEM services
■ Special size 4.5/5”
■ Stainless steel case design
■ Adjustable screw for field pointer calibration
Main Specifications
▼Size
4.5”(125mm)
▼Installation type
Bottom mount (A)
▼Window
PC
▼Pressure connection
Material: Copper alloy
1/4”PT (Standard), 1/4”NPT (Option), 3/8”PT ( Option )
Other thread specs can be customized upon request
▼Pressure range
0…2 to 28bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every 12℃
max. error±0.3% F.S
▼Protection level
IP43
Other Specifications
▼Ring
Stainless steel
▼Ring fixed
Snap-in／Screw fixed
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Adjustable screw on dial face
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
±2.5%F.S. (Standard), ±1.6%F.S. ( Option )
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
