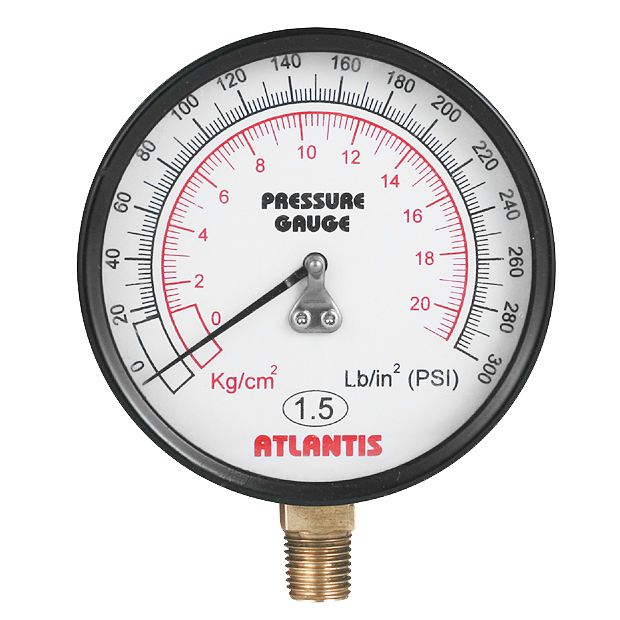

High Cost-Effective Plating Pressure Gauge (Diaphragm Type) HCP-EPG

HCP-EPG pressure sensor adopts heat treatment stainless steel diaphragm. The diaphragm with the expansion and contraction features, which can measure high pressure and ensure its service life and performance. High shock-resistance is ensured to prevent pressure gauge damaged by instant high pressure.

quantity :

－＋

High Cost-Effective Plating Pressure Gauge (Diaphragm Type)
Model: HCP-EPG

Introduction
HCP-EPG pressure sensor adopts heat treatment stainless steel diaphragm. The diaphragm with the expansion and contraction features, which can measure high pressure and ensure its service life and performance. High shock-resistance is ensured to prevent pressure gauge damaged by instant high pressure.

Features
■ OEM service
■ Anti-drop design - no gear and welding parts
■ High instant pressure resistance - piston is used to reduce instance high pressure
■ Shock-resistance design

Main Specifications
▼Size
2”／2.5”／3.5”／4.5”
▼Installation type
Bottom mount (A) / Back mount (ADC) (For 3.5”, bottom mount is the only installation type )
▼Window
Glass / Acrylic (No sealing / PE gasket)
▼Pressure connection
Material: copper alloy
No sealing connection
Size: 1/4”,3/8”
Type: BSPT, NPT
Other thread specs. please specify before order
▼Pressure range
0~30inHg~400psi (Compound pressure: 30inHg~0~150psi to 30inHg~0~400psi)
▼Applicable fluid
Liquid and gas that compatible with connection's material
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
-20°C to +60°C
▼Temperature error
Every ±12 °C
max. error: °C ±0.3% F.S
▼Protection level
IP43
▼Drop test
Max. 1.5m

Other Specifications
▼Ring
Steel with black enamel
Inside bayonet
▼Back housing
Steel with black enamel
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, color can be customized upon request
▼Measuring elements
Diaphragm & piston
Material: Heat treatment stainless steel
▼Movement
copper alloy
▼Accuracy
3%-2%-3%
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
