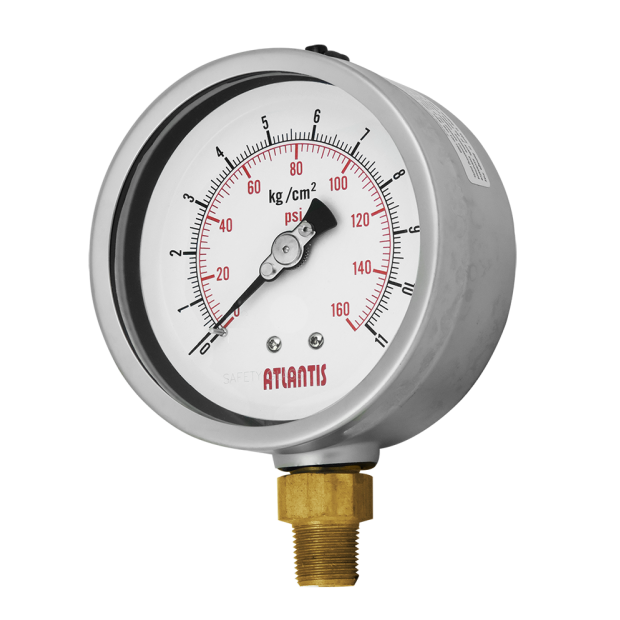

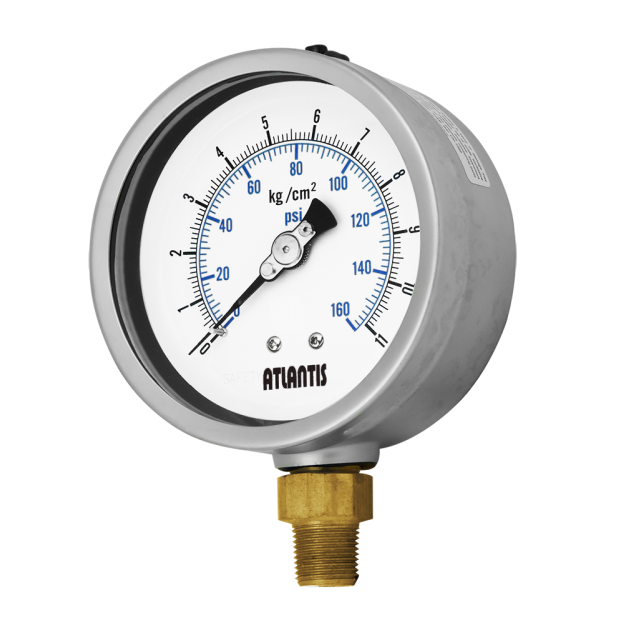

Model: SP-SC
Introduction
This pressure gauge uses stainless steel dampened movement with excellent shockproof effect. Applicable for vibration but non-oil environment.
Features
■ OEM service
■ Sealing connection with O-ring
■ Dampened movement - specially design for shockproof environment
■ Suitable for use no oil environment with shockproof requirement
Main Specifications
▼Size
4”, 6”
▼Installation type
Bottom mount (A)／Bottom mount with flange (B)／Back mount with flange(Eccentric thread) (BDE)／Back mount with U-Clamp(Eccentric thread) (UDE)
▼Window
Tempered glass (Option: Safety glass)
▼Pressure connection
Material: copper alloy (Option: Stainless steel)
Thread size: 1/4”, 3/8”, 1/2”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…1 to 350bar
Negative pressure▼
-1…0bar／-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every 12°C
Max. error ±0.3% F.S
▼Protection level
IP54 (Option: IP65)
Other Specifications
▼Ring
Stainless steel
▼Ring mount
Inside bayonet
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale Pressure unit, scale, color, etc., can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Protection design (option)
Blow out back
▼Movement
Dampened movement
Material: stainless steel
▼Accuracy
±2.5%F.S. / ±1.6%F.S. ( Option) / ±1.0%F.S. ( Option)
▼Operation pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
