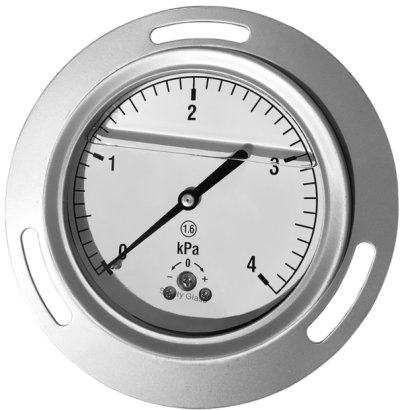

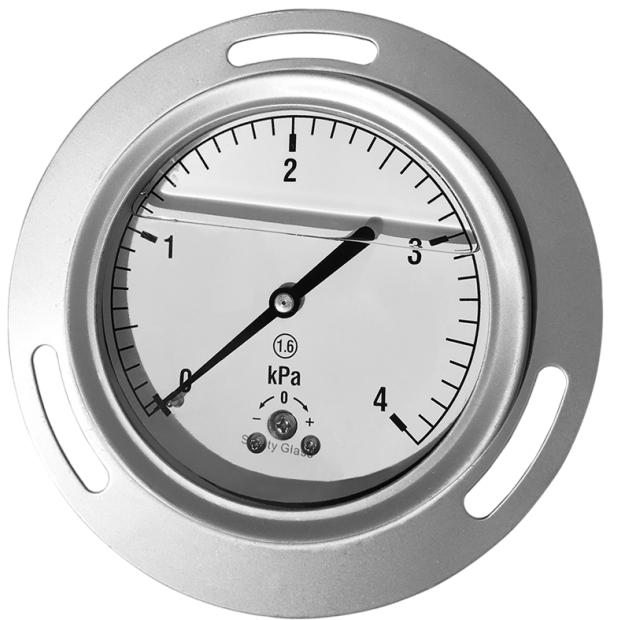

Stainless Steel Case Micro Pressure Gauge (Liquid-filling Type) MP-SC-L

Stainless Steel Case Micro Pressure Gauge (Liquid-filling Type)
Model: MP-SC-L

Introduction
MP-SC-L micro pressure gauge filled with liquid to provide superior vibration performance and longer service life.

Features
■ OEM service
■ Micro pressure gauge with liquid-filling, ensuring vibration-proof performance
■ Longer service life compared to general type micro pressure gauge
■ Minimum measurable pressure－160mmAq

Main specifications
▼Size
2.5”／3”／4”／6”
▼Installation type
Bottom mount (A)／Back mount (ADC)／Back mount with flange (BDC)
▼Window
PC／Acrylic
Option: safety glass (Only available for 4”& 6”)
▼Pressure connection
Material: copper alloy
Thread size: 1/4”, 3/8”, 1/2”
Thread type: BSPT, NPT, PF
Other thread specifications please specify before order
▼Pressure range
0….300 to 6000 mmAq (Minimum measurable pressure 160 mmAq is available for 6”only)
▼Applicable media
Liquid and gas that compatible with copper alloy
▼Liquid-filling
Silicone oil／Glycerin
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
+60°C
▼Temperature drift
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP65

Other Specifications
▼Ring material
Stainless steel
▼Ring mount
Snap-in / Screw fixed
▼Case material
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Black scale
Special dial face for micro pressure gauge
Available micro pressure unit▼
kPa, mbar, mmH₂O, mmAq, mmWC, inH₂O
▼Measuring elements
Capsule
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
±4% (option: ±3%)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
