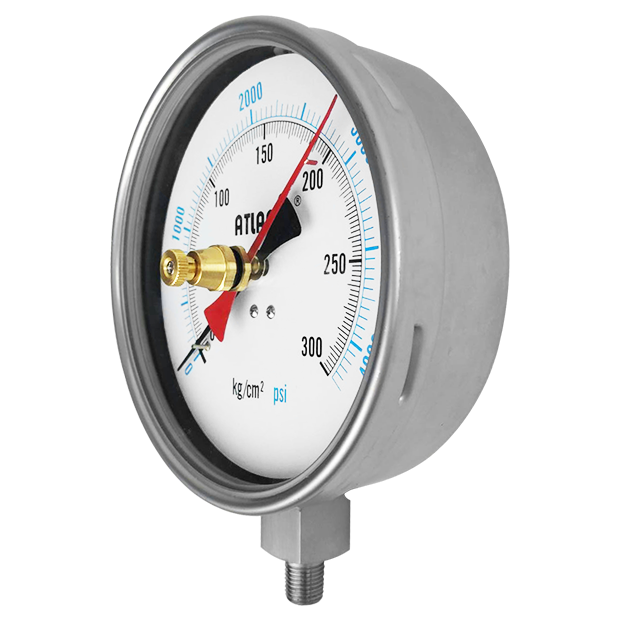

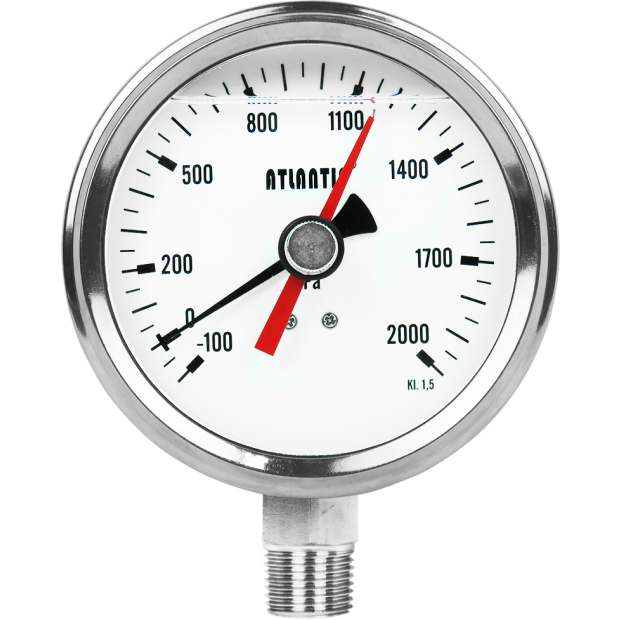

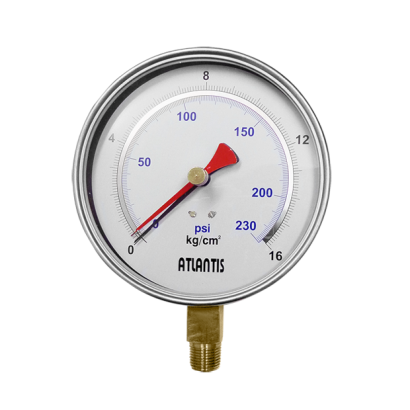

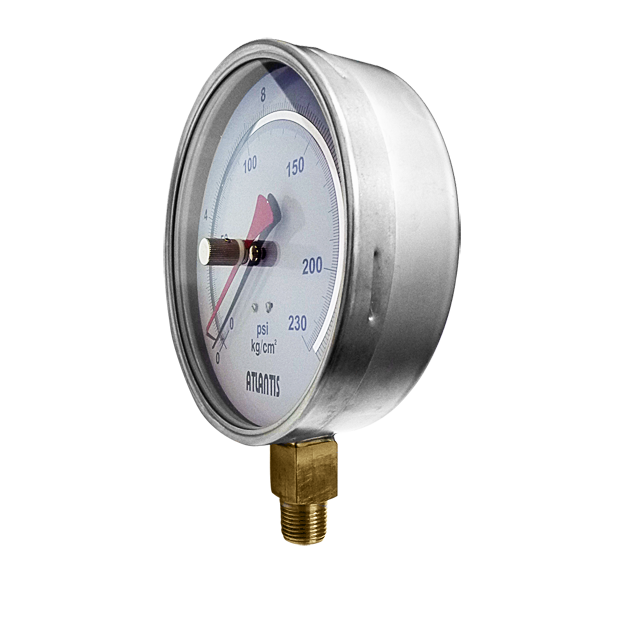

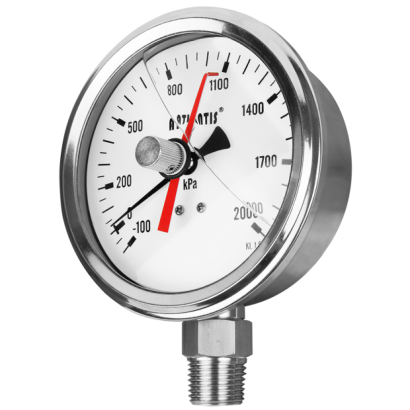

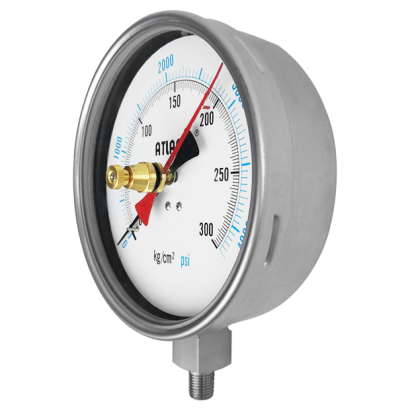

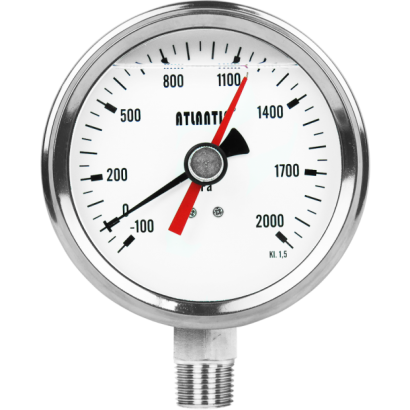

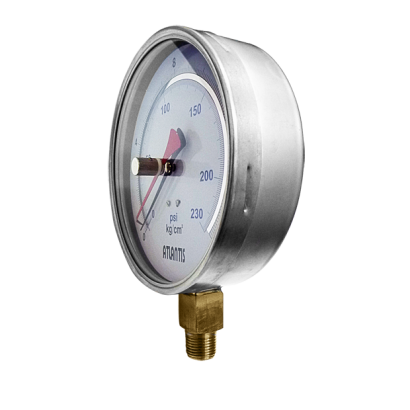

Pressure Gauge with Peak Hold Pointer PHPG

Pressure Gauge with Peak Hold Pointer PHPG

Peak hold pointer can indicate the peak pressure value, ensuring the safety management in field operation.
  • Pressure Gauge with Peak Hold Pointer
  • Pressure Gauge with Peak Hold Pointer
  • Pressure Gauge with Peak Hold Pointer
  • Pressure Gauge with Peak Hold Pointer
  • Pressure Gauge with Peak Hold Pointer
  • Pressure Gauge with Peak Hold Pointer
DETAIL

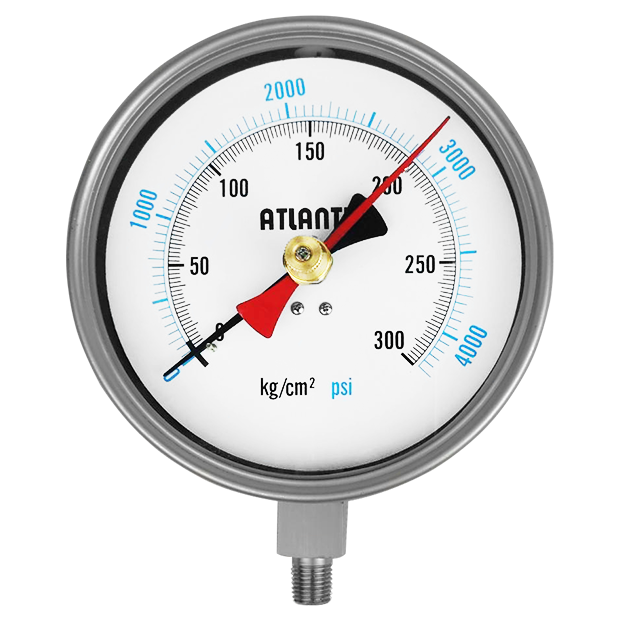

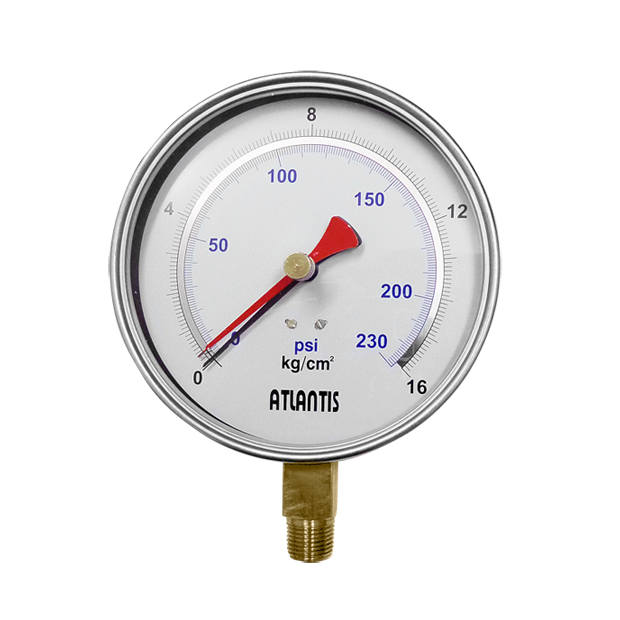

Pressure Gauge with Peak Hold Pointer
Model: PHPG


Introduction
Peak hold pointer can indicate the peak pressure value, ensuring the safety management in field operation.

Features
■ Record peak pressure value
■ IP54 for dry type (Standard) / IP65 for liquid-filled type (Option)


Main Specifications
▼Size
2.5”4”
▼Installation type
Bottom mount (A) / Bottom mount with flange (B) / Back mount (centric thread) (ADC) / Back mount with flange (centric thread) (BDC) / Back flange with flange (eccentric thread) (BDE)
▼Window
PC / Glass
O-ring sealed / PE gasket
▼Process connection
Material:
Copper / Stainless steel
Thread size: 1/8”, 1/4”, 3/8”, 1/2”
Thread spec.: BSPT / NPT / PF
▼Pressure range
Gauge pressure▼
0…1 to 1000 bar
Negative pressure▼
-1…0 bar
Compound pressure▼
-1…1 to 20 bar
▼Ambient temperature
-20°C to +60°C
▼Fluid temperature
+60°C (Copper alloy type)
+100°C (Stainless steel type)
▼Protection level
IP54 for dry type (Standard) / IP65 for liquid-filled type (Option)

Other Specifications
▼Ring
Stainless steel
▼Pointer
Aluminum with black enamel
▼Peak hold pointer
Aluminum with black enamel/ Red plastic
▼Measuring elements
Bourdon tube
Material: Copper / Stainless steel
▼Accuracy
Standard: ±1.6%F.S.
Option: ±1.0%F.S.
