Model: EPG
Introduction

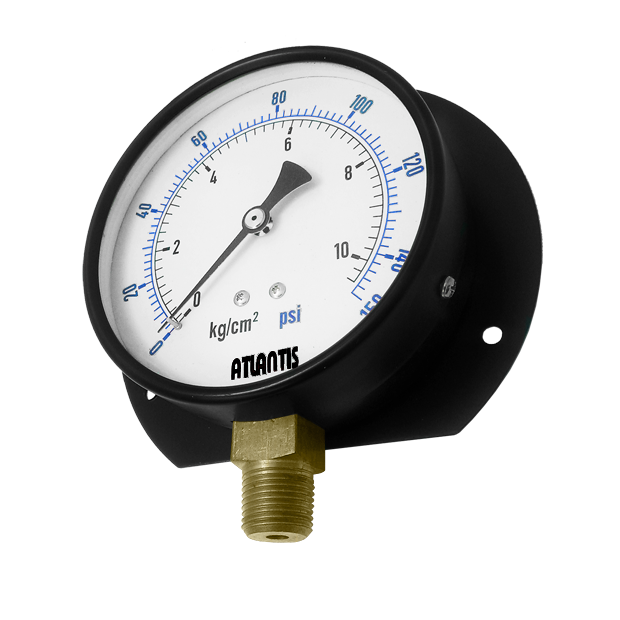

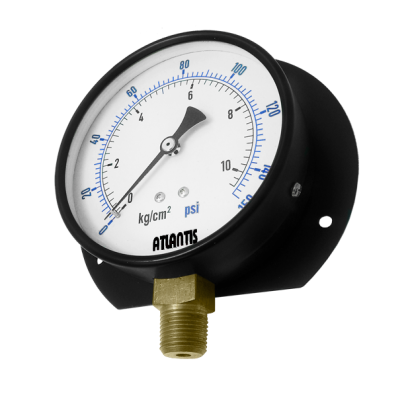

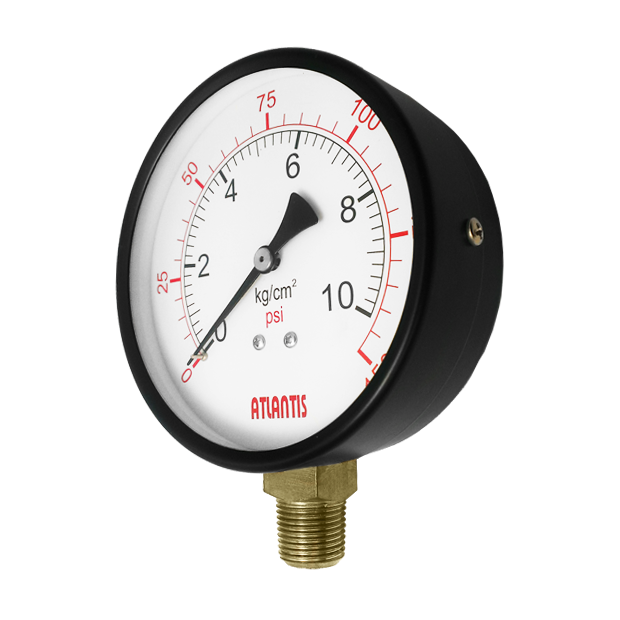

Basic screw-type black iron shell pressure gauge, available in various diameters and installation types, commonly used in mechanical equipment and pipelines that do not experience significant pulsation or vibration. It is suitable for measuring non-corrosive media compatible with the connection parts.
Features
■ OEM service
■ Affordable price
■ General type pressure gauge
Main Specifications
▼Size
1.25”, 1.5”, 2”, 2.5”, 3”, 4”, 4.5”, 6”, 8”, 10”
▼Installation type
Bottom mount (A) / Bottom mount with flange (B) / Back mount (ADC) / Back mount with flange (centric thread) (BDC) / Back mount with flange (eccentric thread) (BDE) / Back mount with U-clamp (UDC)
▼Window
PC / Glass
Option: Safety glass
PE gasket
▼Pressure connection
Material: copper alloy, electroplated screw threads
Thread size: 1/8”,1/4”,3/8”,1/2”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 350 bar
Negative pressure▼
-1…0bar／-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Non-viscous and crystalline liquids and gases compatible with the connecting section
▼Ambient temperature
-20°C to +60°C
▼Fluid temperature
+60°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
Other Specifications
▼Ring
Steel with black enamel
Screw fixed
▼Back housing
Steel with black enamel
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Pressure unit, scale, & color can be customized upon request
▼Measuring elements
Bourdon tube
Material: copper alloy
▼Movement
Copper alloy
▼Accuracy
±2.5％F.S.(Below Ø2”)
±2.0％F.S.(Ø2”~Ø10”)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
▼Other requests
Third party notary report
Inspection report
Tag
Install diaphragm seal
Internal stop pin (Over-pressure protection)
Dampened movement / Oil cup
Window－Safety glass
Peak hold pointer
Epoxy coating
Chrome-plated ring
Chrome-plated thread
Chrome-plated case
Silver solder welding - max fluid temperature can up to +180℃
