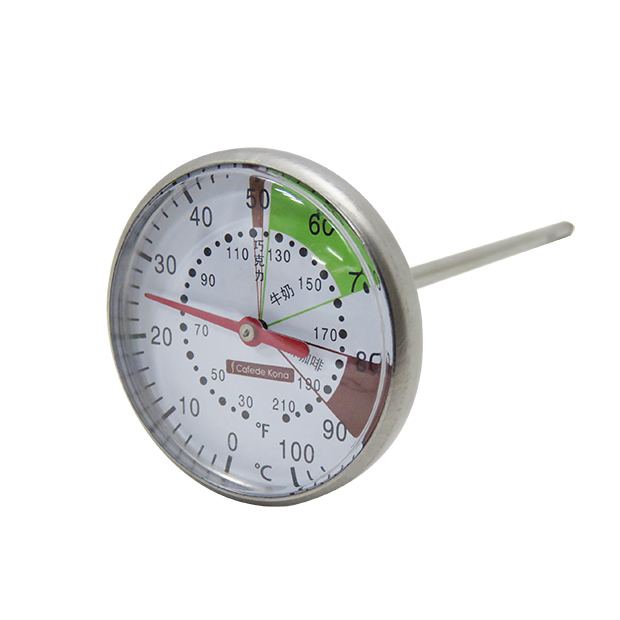

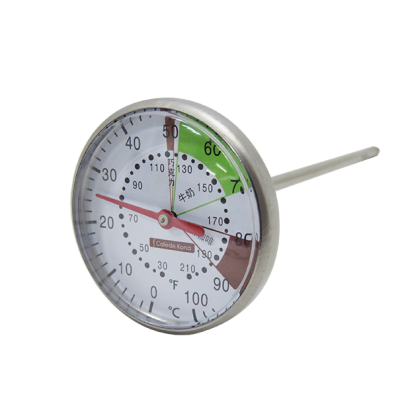

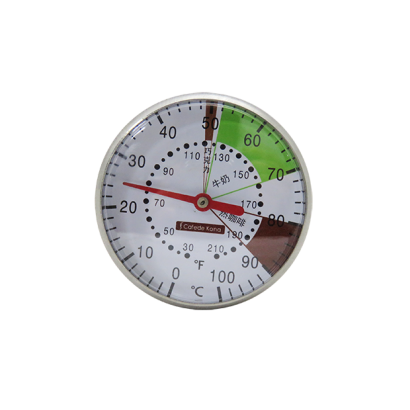

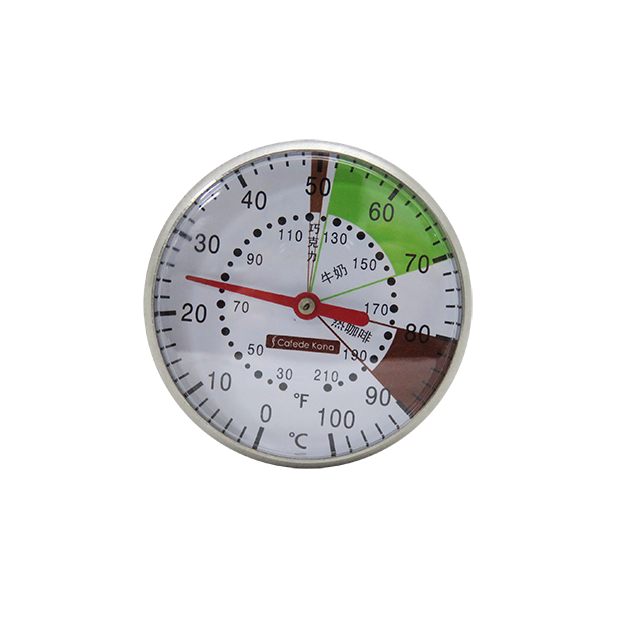

Bi-metal Thermometer (For Instant Drink Type) BTT-D
Bi-metal Thermometer (For Instant Drink Type) BTT-D
BTT-D thermometer is suitable for direct liquid temperature measurement such as brewing coffee, heating milk and instant drink.
DETAIL
Model: BTT-D
Introduction
BTT-D thermometer is suitable for direct liquid temperature measurement such as brewing coffee, heating milk and instant drink.
Features
■ OEM service
■ Stem material adopts food grade SS304 Housing material adopts SS430
■ Customizable stem outer diameter and length

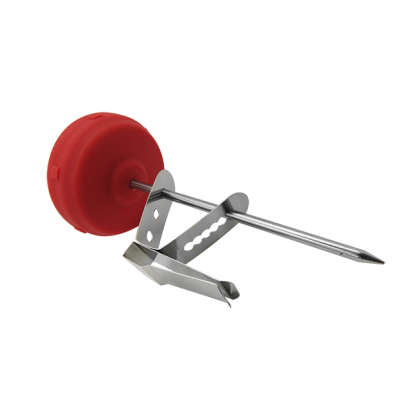

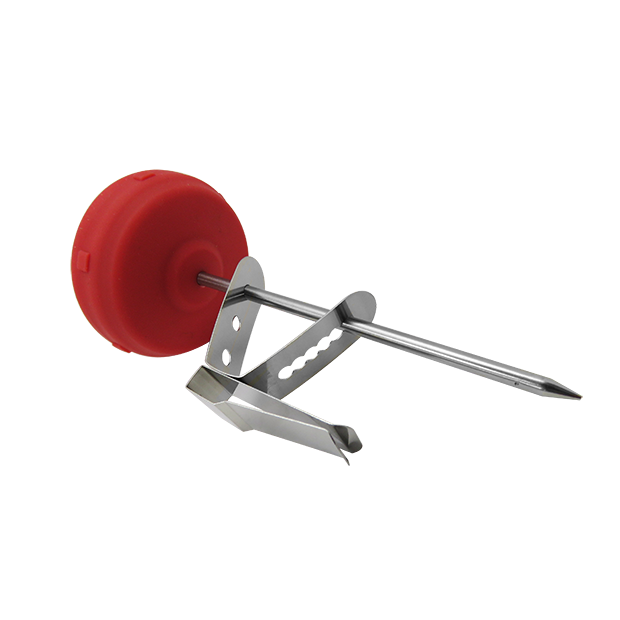

■ Additional protection: silicone rubber protective case (option)
■ Optional accessory: fix clamp and plastic stem case (option)
Main Specifications
▼Size
1.38”(35mm)
▼Installation type
Back connection
▼Connection
Standard: hex nut
Option:
Thread connection 1/16”PF
Other specification available upon request
▼Window
PC
▼Stem
Material: SS 304
Outer diameter: 3.8mm (standard)
Length: 123mm (standard)
Other stem outer diameter and length available upon request
▼Temperature range
Min.: -30°C
Max.: 200°C
(Custom temperature scale range available within -30 to 200°C)
▼Applicable fluid
Media that compatible with SS 304
▼Protection level
IP 54
Other Specifications
▼Housing material
SS430
▼Pointer
Aluminum with red enamel / Aluminum with black enamel
▼Dial face
Black scale on white board ℃ / ℉ single / dual scale
Common beverage temperature icon
Customizable dial face
▼Measuring elements
Bi-metal
Temperature sensing area: last 2”-4”of stem
▼Temperature accuracy
1.5%
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
