Digital Pressure Switch DPS-X829

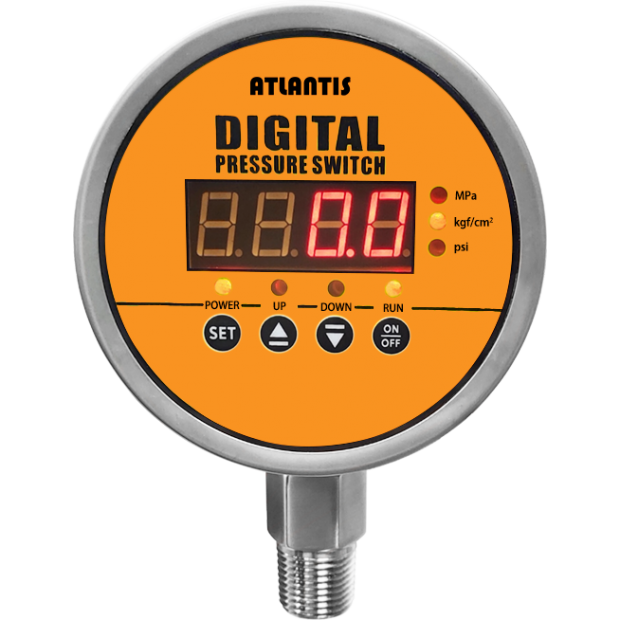

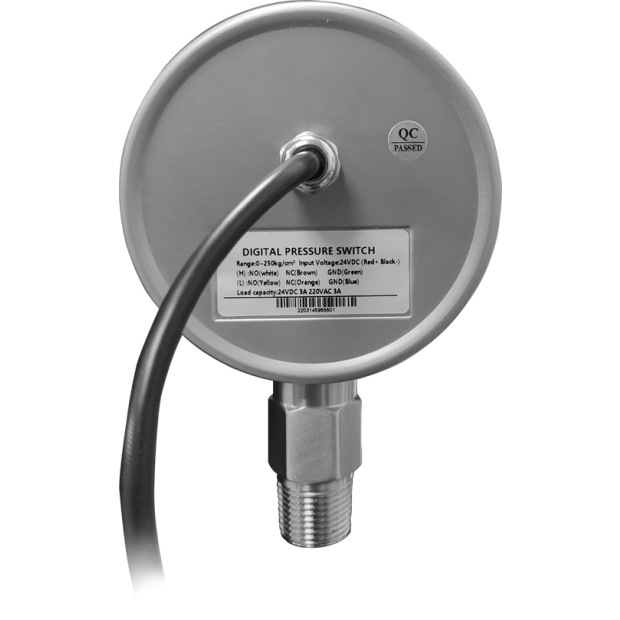

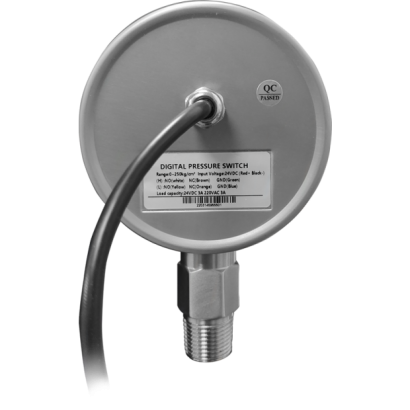

Digital Pressure Switch DPS-X829
The DPS-X829 is an intelligent digital pressure switch that integrates pressure measurement, display, and control. It can be set up with two normally open and normally closed alarms, and can also achieve high and low pressure control for two channels. The design focueseon stability, taking into account the actual
conditions on-site, and features strong resistance to electromagnetic interference, surge protection, and reveres connection protection. It is suitable for applications in automated production lines, hydraulic system, and other fields.
conditions on-site, and features strong resistance to electromagnetic interference, surge protection, and reveres connection protection. It is suitable for applications in automated production lines, hydraulic system, and other fields.
DETAIL
Model: DPS-X829
Introduction
The DPS-X829 is an intelligent digital pressure switch that integrates pressure measurement, display, and control. It can be set up with two normally open and normally closed alarms, and can also achieve high and low pressure control for two channels. The design focueseon stability, taking into account the actual conditions on-site, and features strong resistance to electromagnetic interference, surge protection, and reveres connection protection. It is suitable for applications in automated production lines, hydraulic system, and other fields.
Features
■ OEM service
■ Features multiple functions such as one-key reset and three display unit switching.
■ Capable of achieving two independent pressure alarms or controls.
■ Various wiring methods, can be used as a controller, switch, or digital pressure gauge.
■ Adjustable sampling rate.
■ Custom transmitters can be made according to industry needs.
Main Specifications
▼Size
2.5”, 3”, 4”
▼Installation type
Bottom mount / Embedded with edge
▼Electrical connection
Direct wiring / Plug-in connector
▼Pressure range
-0.1~0~0.6…1…1.6…2.5…6…10…25…40…160 MPa
▼Connection
Material: Stainless steel 304
1/4”PT
1/4”NPT
1/2”NPT
G1/2”
Other thread specifications please specify
▼Applicable media
Gases or liquids compatible with SS 304
▼Working temperature
-20°C to 80°C
▼Protect level
IP65
Other Specifications
▼Case material
SS 304
▼Screen display
4-digit LED
▼Update frequency
5 times / second
▼Pressure unit
MPa, kgf/cm2, psi (or kPa, kgf/cm2, psi)
▼Alarm method
Dual relay signal
(each group normally open and normally closed)
▼Power supply voltage
12VDC / 24VDC / 110VAC / 220VAC / 380VAC
▼Alarm range
1%~99% adjustable
▼Overload pressure
Range x2 (<10MPa)
Range *1.5 (>10MPa)
▼Load capacity
220VAC 5A / 24VDC 5A
▼Accuracy
±0.5%F.S.
±1.0%F.S. (100~160 MPa)
▼Long-term stability
±0.25%F.S. / year
▼Electrical protection
Reverse polarity protection, antibattery interference design
