Temperature and Humidity Signal Transmitter THT-R Series
Temperature and Humidity Signal Transmitter THT-R Series
The THT-R series temperature and humidity transmitters use a thin-film polymer capacitive humidity sensor and a platinum (PT100Ω) temperature sensor, allowing for precise measurement of temperature and relative humidity. They provide long- term stable signal output and are convenient and quick for installation, disassembly, wiring, and adjustment. They are suitable for places, environments, and industrial applications that require monitoring of temperature and humidity, as well as process control.
DETAIL
Model: THT-R Series
Introduction
The THT-R series temperature and humidity transmitters use a thin-film polymer capacitive humidity sensor and a platinum (PT100Ω) temperature sensor, allowing for precise measurement of temperature and relative humidity. They provide long-term stable signal output and are convenient and quick for installation, disassembly, wiring, and adjustment. They are suitable for places, environments, and industrial applications that require monitoring of temperature and humidity, as well as process control.
Features
■ OEM service
■ Optional current output / voltage output
■ Sensor material uses RTD Pt100Ω
■ Three installation types available
■ Accuracy ±2.0% RH / ±0.3℃
■ Waterproof and dustproof enclosure, compliant with IP65 standards
■ Built-in two-point calibration
Main specifications
▼Size
Φ90 x 54mm
(The base has fixed holes, no need for a mounting bracket)
Fixed hole distance：87±1mm
▼Installation type

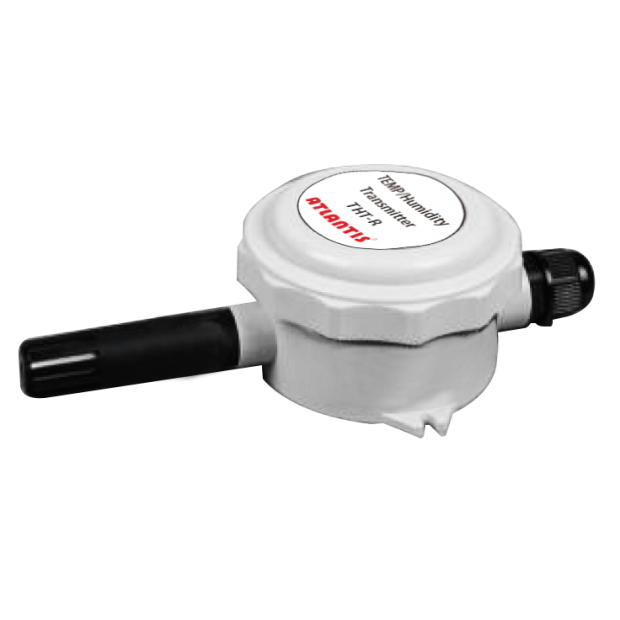

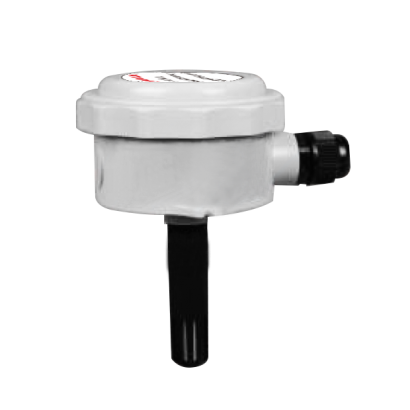

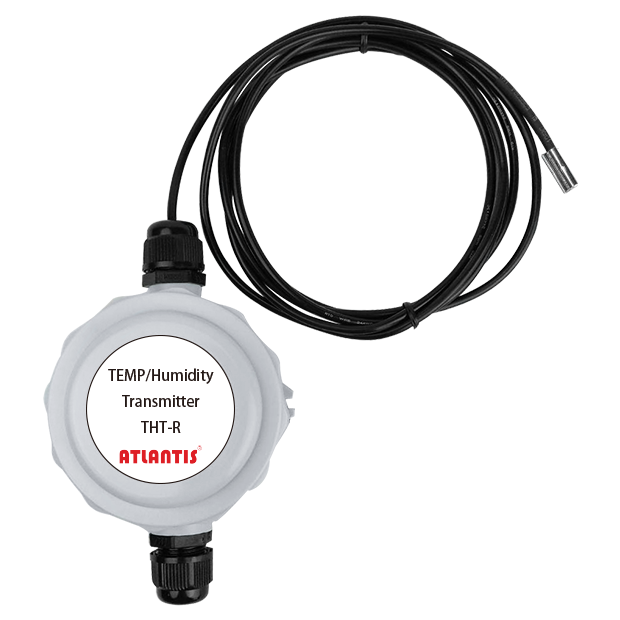

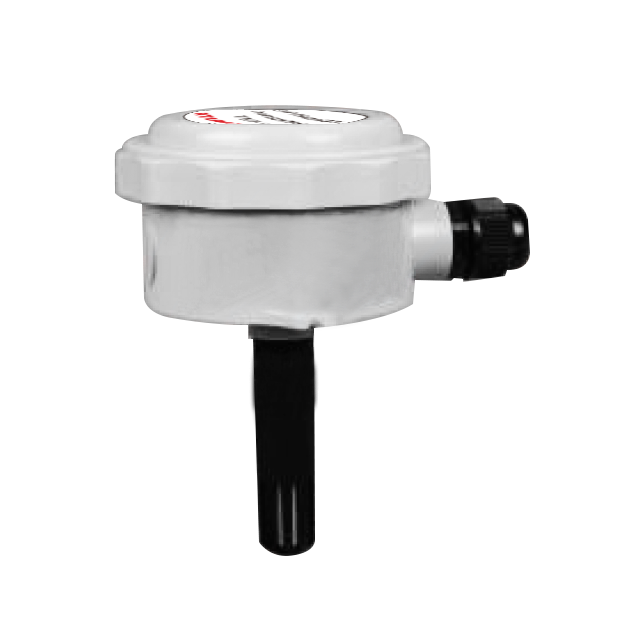

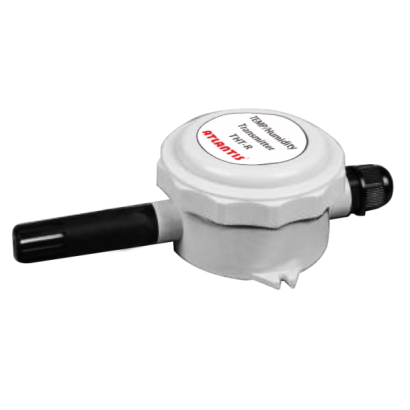

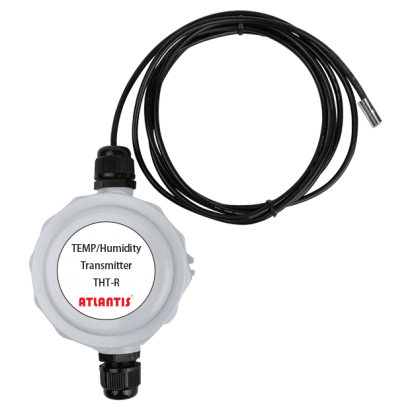

Wall mount / Duct / Remote reading
▼Temperature and humidity range
0~100% RH
0~100℃, -20~+80℃, 0~ 50℃, -40~+60℃
Other temperature range can be specified
▼Operating temperature range
-40℃~+85℃ (-40℉~+185℉)
▼Sensor protection
Dustproof (standard)
Interference filter cover (optional)
▼Protection level
IP65
Main specifications
▼Case
ABS
▼Output signal
Type A: Current output type
Temperature and humidity: 4-20mA (2-wire system)
Type V: Voltage output type
0-1V / 0-5V / 0-10V / 1-5V
▼Sensor material
Temperature: RTD Pt100Ω
DIN, IEC 751
Humidity: Thin-film polymer capacitive
▼Voltage supply
12-40 VDC , >150mA
▼Connector
Waterproof quick connector and terminal block
Applicable wire outer diameter: Φ5.0~10mm
▼Accuracy
±2.0% RH / ±0.3℃
▼Stability
<1% RH/year
(Normal use in a stable environment)
▼Temperature compensation
±0.008% RH/℃ (@0%RH)
▼Reaction time
Approximately 15 seconds
▼Weight
Approximately 150g
