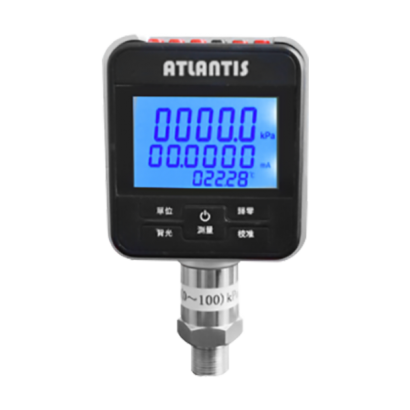

Smart Pressure Calibration Instrument SPC-H4.5
Smart Pressure Calibration Instrument SPC-H4.5
SPC-H4.5 is a professional portable pressure calibrator that features pressure measurement as well as high-precision DC voltage and current measurement capabilities. It undergoes high and low temperature aging and temperature compensation processes before leaving the factory to ensure the accuracy and stability of the product. It is suitable for on-site calibration of precision pressure gauges, general pressure gauges, blood pressure monitors, and other instruments.
DETAIL

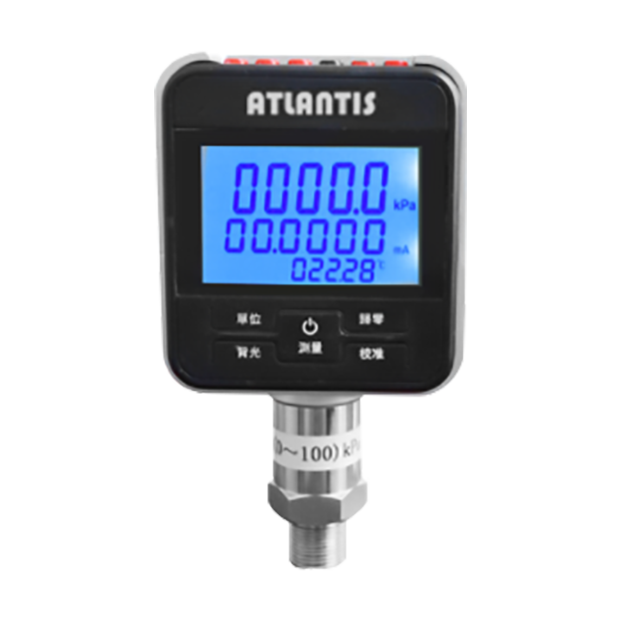

Smart Pressure Calibration Instrument
Model: SPC-H4.5
Introduction
SPC-H4.5 is a professional portable pressure calibrator that features pressure measurement as well as high-precision DC voltage and current measurement capabilities. It undergoes high and low temperature aging and temperature compensation processes before leaving the factory to ensure the accuracy and stability of the product. It is suitable for on-site calibration of precision pressure gauges, general pressure gauges, blood pressure monitors, and other instruments.
Features
■ Accuracy can reach up to ±0.02%F.S.
■ Automatic temperature compensation
■ Dual-row display on LCD screen, easy to set up, with backlight
■ Two-point calibration function, 9 pressure units available
■ Overpressure alarm function
■ Factory reset function
Main Specifications
▼Size (mm)
100 x 130 x 45
▼Output continuation section
M20*1.5
▼Pressure range
-0.1 to 60 MPa
▼Operating temperature
-10~50℃
▼Ambient humidity
<95％
▼Atmospheric pressure
86~106 kPa
▼Temperature compensation
0~50℃
Other Specifications
▼Screen display
6-digitLCD with backlight
▼DC output
DC 24Voutput (≦30mA)
▼Current measurement
0~25mA
▼Voltage measurement
0~25V
▼Accuracy
±0.5% / ±0.2% / ±0.1% /
±0.05% / ±0.02%
▼Communication interface
RS232
▼Power supply
Lithium battery power supply
▼Battery life
Continuous operation for 80
hours
▼Weight
750g
