High-Precision Bluetooth Digital Pressure Gauge (Rotatable) DPG-X112
High-Precision Bluetooth Digital Pressure Gauge (Rotatable) DPG-X112
The DPG-X112 is a high-precision digital pressure gauge that can rotate 330°.It features a splitscreen display with the main screen showing pressure while the secondary screen displays data such as ambient temperature, maximum and minimum pressure values, and range. Data can be exported via Type-c or Bluetooth, and various parameters can be configured. It can be applied in mechanical electronics, engineering machinery, pressure laboratories, and other settings.
DETAIL

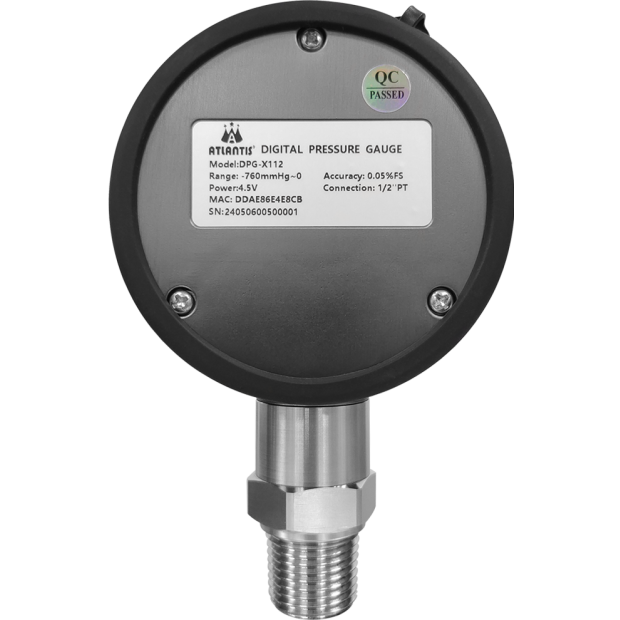

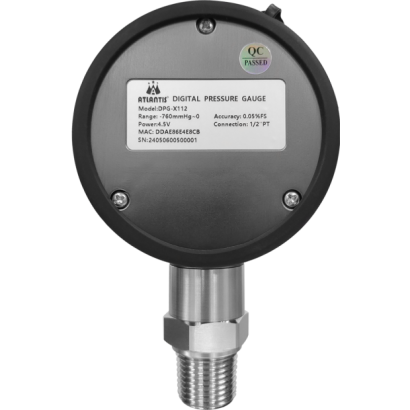

Model: DPG-X112
Introduction
The DPG-X112 is a high-precision digital pressure gauge that can rotate 330°.It features a splitscreen display with the main screen showing pressure while the secondary screen displays data such as ambient temperature, maximum and minimum pressure values, and range. Data can be exported via Type-c or Bluetooth, and various parameters can be configured. It can be applied in mechanical electronics, engineering machinery, pressure laboratories, and other settings.
Features
■ OEM service
■ The dial can rotate 330°
■ Power supply options: type-c + battery or type-c + rechargeable battery
■ Supports Bluetooth connection, allowing for the configuration of various parameters
■ Data can be exported via computer or Bluetooth program
Main specifications
▼Size
3”
▼Pressure connection
Material: SS304
Thread size: M20*1.5, G1/4”, G1/2”, 1/2”, 1/4”
Thread type: NPT, PT
Other specifications can customized
▼Pressure range
-0.1~0~0.1…1…10…70 MPa
▼Applicable fluids
Non-corrosive gases or liquids compatible with the connection part
▼Working temperature
-5℃~40℃
▼Protection level
IP65
Other specifications
▼Shell material
Zinc alloy

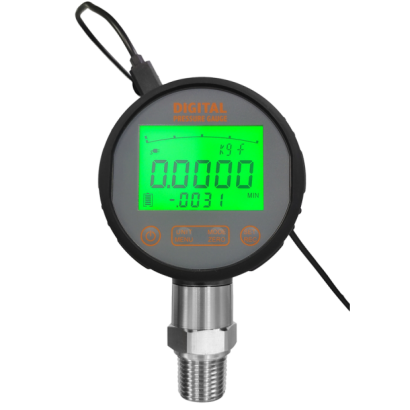

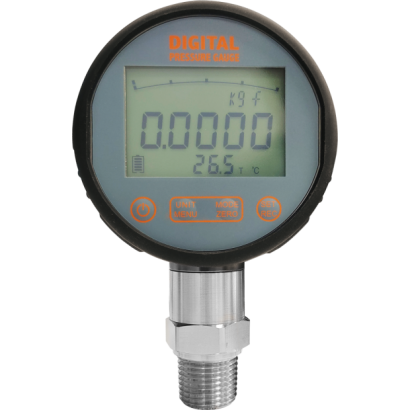

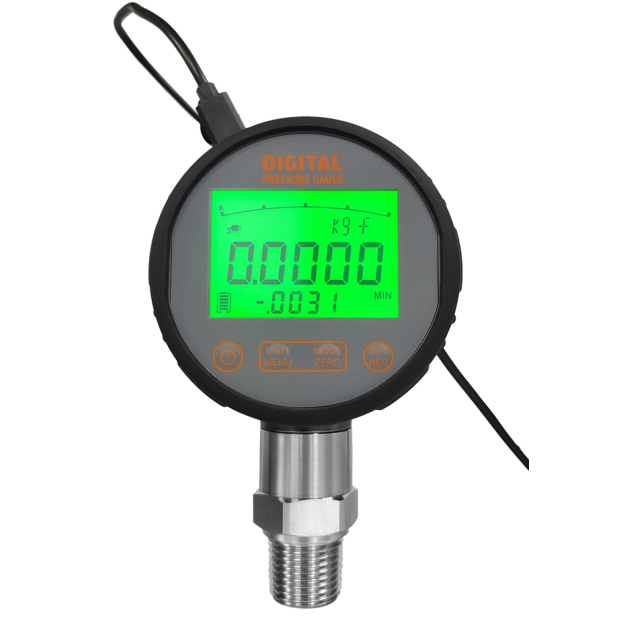

▼Screen display
50mm*35mm
Maximum 5-digit LCD
Green backlight
▼Pressure unit
Kgf/cm2, kPa, inH2O, inWC, Tor, mbar, mH2O, psi, inHg, bar
<Select units based on different ranges>
▼Power supply method
Type-C external power supply + AAA batteries
Type-C external power supply + rechargeable battery
▼Data storage
10 records
27000 per record
▼Accuracy
±0.05%F.S. / ±0.1%F.S. / ±0.5％F.S.
▼Long-term stability
±0.05%F.S. / year
▼Overload pressure
150%
▼Electrical protection
Electromagnetic interference resistant design
