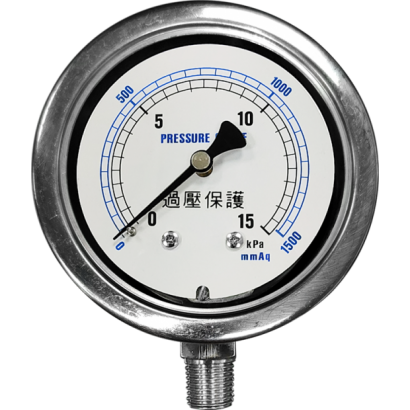

Multi-functional all-steel vertical pressure gauge MF-SUS Series

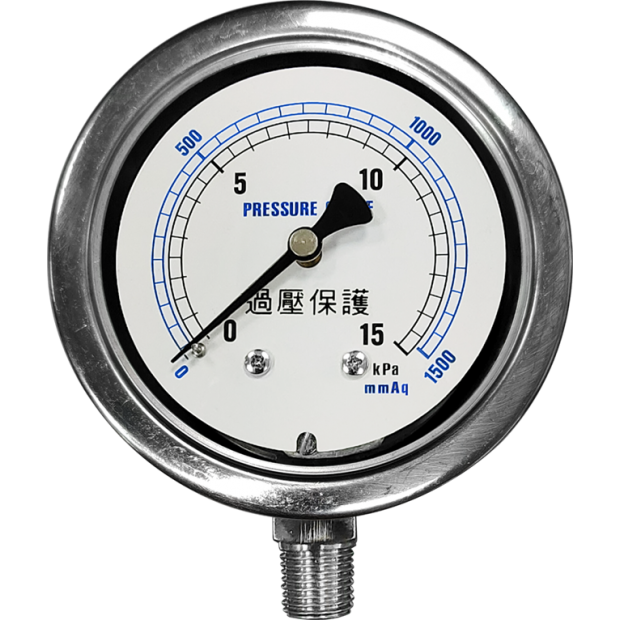

Multi-functional all-steel vertical pressure gauge MF-SUS Series
Multi-functional all-steel vertical pressure gauges with various tooth specifications to chooes from, suitable for measuring mildly corrosive media compatible with stainless steel, especially used in chemical, petrochemical, food industry, biochemistry, and other industries.
DETAIL
Model: MF-SUS Series
Introduction
Multi-functional all-steel vertical pressure gauges with various tooth specifications to chooes from, suitable for measuring mildly corrosive media compatible with stainless steel, especially used in chemical, petrochemical, food industry, biochemistry, and other industries.
Features
■ OEM Service
■ All stainless steel design, can be matched with all steel supply to reduce costs.
■ Multiple tooth rules are available for selection, suitable for various installation environments.
■ Fillable fluid, improve seismic performance and service life.
Main Specifications
▼Size
2.5”, 4”
▼Installation type
Bottom mount (A)
▼Windows
Glass
Option: Safety glass
▼Pressure connection
Material: SS316
Thread size: 1/8”, 1/4”, 3/8”, 1/2”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar (> 1000bar is available madeto-order )
Negative pressure▼
-1…0bar／-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with stainless steel
▼Ambient temperature
Dry: -40℃~60℃
Glycerin-filled: -20℃~60℃
Silicone oil-filled: -40℃~60℃
▼Media temperature
Dry: +100℃
Glycerin filled: +100℃
Silicon oil filled: +100℃
Other Specifications
▼Ring
Stainless steel
▼Ring connection
Bayonet , Crimp(Limit Φ2.5”)
▼Housing
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Other pressure unit, scale & color available upon request
▼Measuring elements
Bourdon tube
Material : SS316
▼Protective design
Can be equipped with explosion-proof holes (Limited to Φ4”)
▼Movement
Stainless steel
▼Accuracy
±1.5% F.S. (Φ2.5”)
±1% F.S. (Φ4”)
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
▼Other requests
Third party notarized documents
Inspection report
Tag
Customized dial face (scale, color, unit, etc.)
Install a diaphragm
Dampened movement
Peak hold pointer
Case material: SS316
External indicator (Red, green, yellow)
