Digital Pressure Gauge
DPG-X062 Digital Pressure Gauge
DPG-X062 Digital Pressure Gauge
DPG-X062 is an economic cost, convenient use and high performance digital pressure gauge, suitable for various instrument. It adopts latest temperature compensation technology to ensure ±1.0%F.S. accuracy.
DETAIL
Model: DPG-X062
Introduction
DPG-X062 is an economic cost, convenient use and high performance digital pressure gauge, suitable for various instrument. It adopts latest temperature compensation technology to ensure ±1.0%F.S. accuracy.
Features
■ OEM service
■ Switchable unit, zero reset, backlight and automatic shutdown
■ LCD screen with backlight ensures clear reading in the dark place
■ Adoptstemperature compensation technology, full scale accuracy±1.0%
Main Specifications
▼Installation type

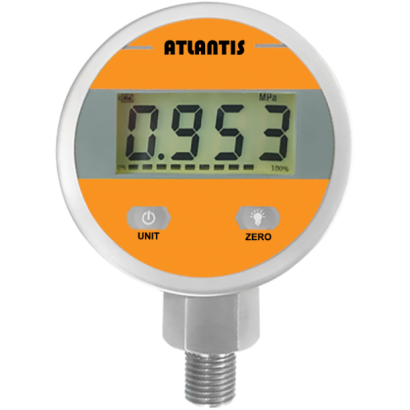

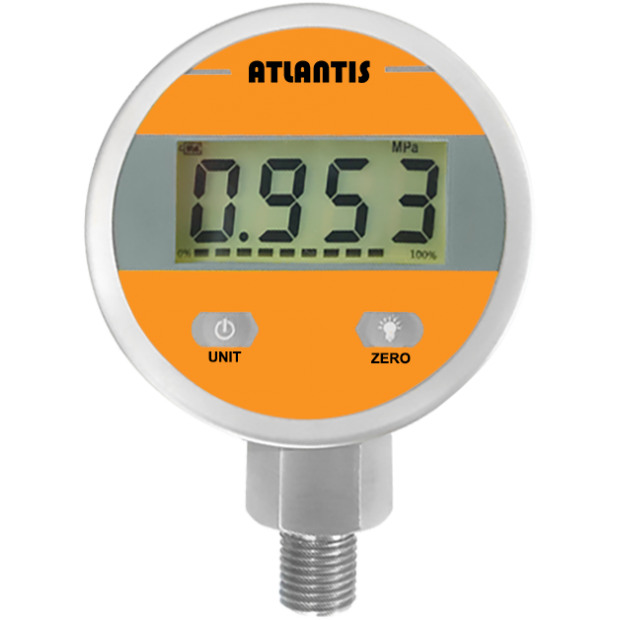

Bottom mount

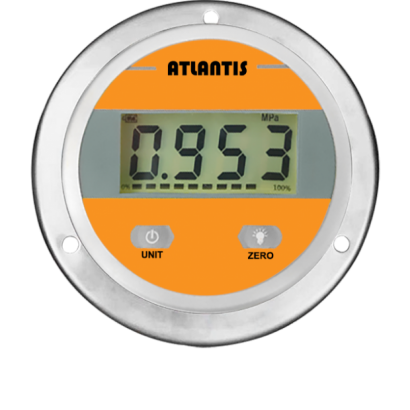

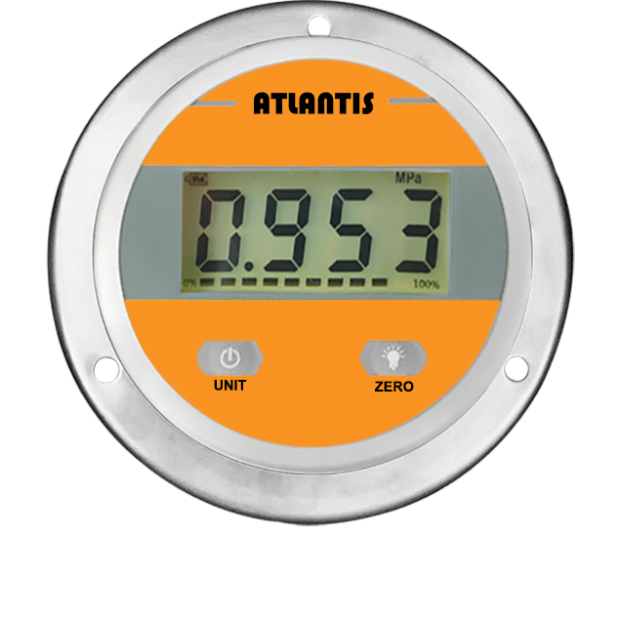

Back mount
▼Size
2.5”(60mm)
▼Pressure connection
Material: SS 304
M20*1.5
G1/4”
G1/2”
1/2”NPT
1/4”NPT
Other thread type available upon request
▼Pressure range
Please refer to pressure range table
▼Applicable media
Liquid and gas that compatible with material of connection
▼Operating temperature
-10~60℃
▼Protection level
IP50
IP54 (with rubber)
Other Specifications
▼Case material
SS304
▼Screen display
4-digit LCD display with backlight function
▼Switchable pressure unit
bar, psi, kgf/cm2, MPa
▼Overpressure
120% (≧10MPa)
150% (<10MPa)
▼Power supply
3V / 24V
▼Battery life
One year
▼Accuracy
±1.0%F.S.
▼Stability
±0.5%F.S. /year
