Automatic Pressure Controller APC-630 Series
Automatic Pressure Controller APC-630 Series

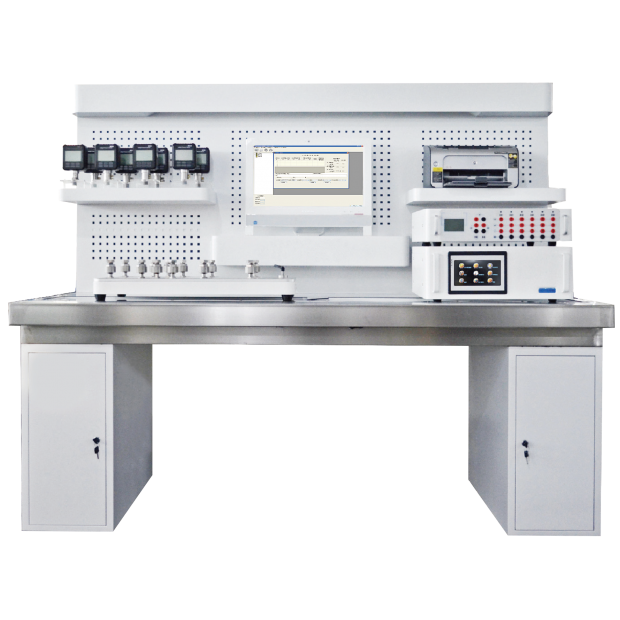

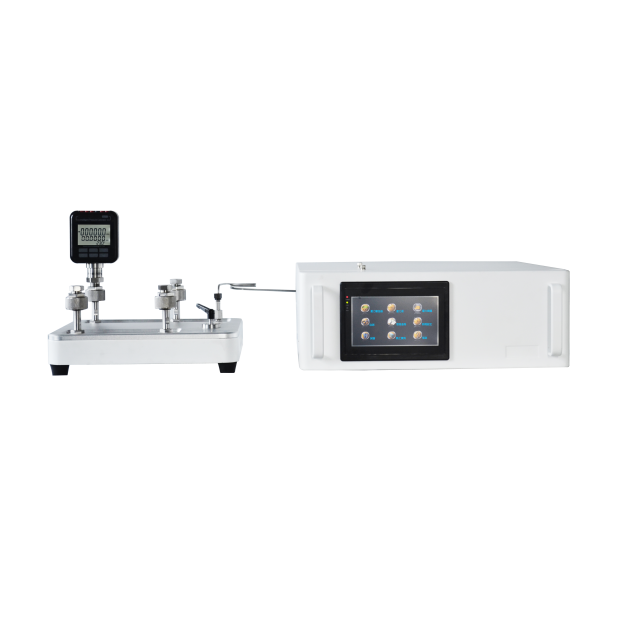

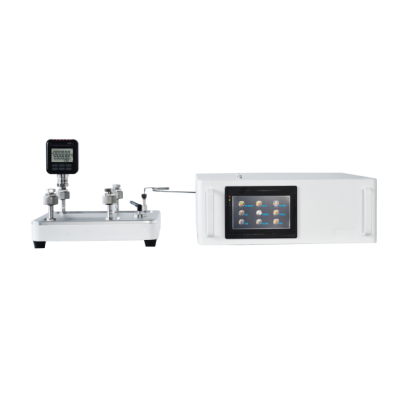

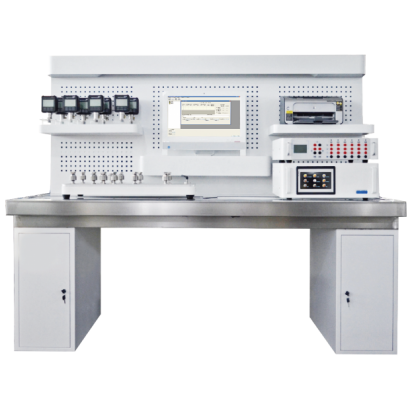

APC-630 automatic pressure controller is composed of pressure calibrator, current and voltage tester, and pressure output test bench, which can simultaneously or batch calibrate multiple sets of high- precision instruments. The operation interface adopts 7”touch panel and menu guide, the graphical interface makes the operation easier.
DETAIL
Model: APC-630 Series
Introduction
APC-630 automatic pressure controller is composed of pressure calibrator, current and voltage tester, and pressure output test bench, which can simultaneously or batch calibrate multiple sets of high-precision instruments. The operation interface adopts 7”touch panel and menu guide, the graphical interface makes the operation easier.
Features

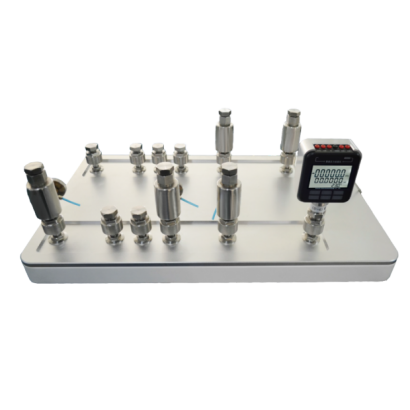

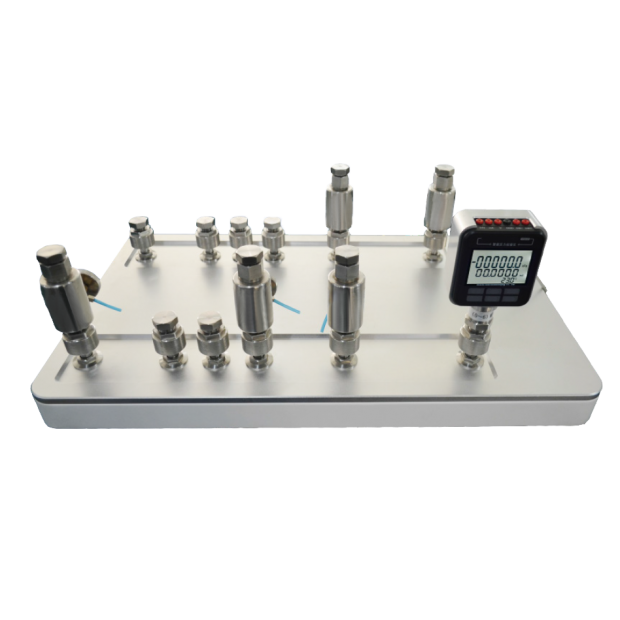

■ The pressure output test bench adopts hard anode aluminum alloy, with anti-scratch and anticorrosion performance. It has 12 sets of connection thread and provided with adapter and O-ring to
prevent pressure leakage

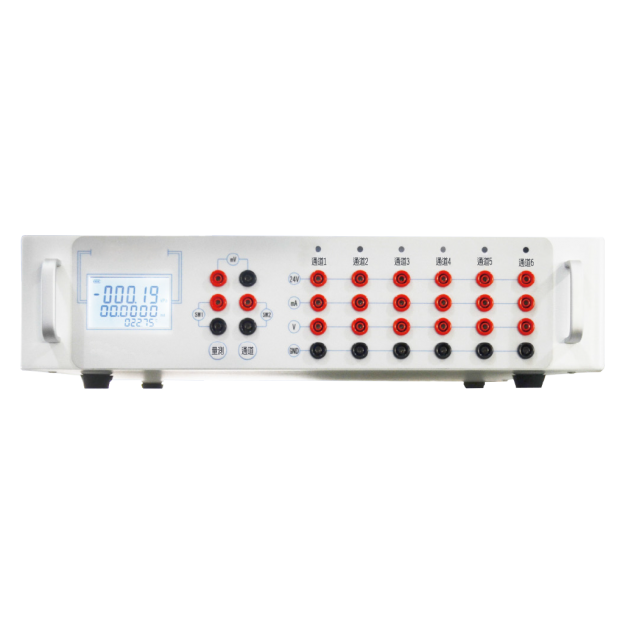

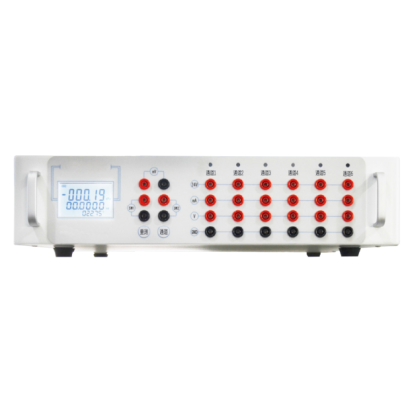

■ There are 6 test channels built in the current and voltage switch instrument. The current/voltage measurement accuracy is±0.01%RD+0.0025%F.S., the voltage control stability can reach to 0.002%,
the voltage will stabilize within 10 sec.
■ With special operation software, the RS232 port can do two-way communication with the computer to achieve automatic voltage control, data collection, calculation, storage and report generation, and can print test results, file management, data sequencing or data statistical analysis according to manufacturer and instrument type
Main Specifications
▼Type
APC-630-M Micro pressure type
APC-630-N General type
APC-630-H High pressure type
▼Size
500 (L) x 450(W) x 180 (H) mm
▼Generate pressure range
Please refer to generate pressure range table
▼Pressure source media
Please refer to generate pressure range table
▼Operating temperature
0 to 40℃
▼Storage temperature
-20 to 70℃
▼Storage humidity
5-95%R.H. (non-condensing)
▼Accessories
Wireless mouse
Special software x1
Test report
Certification report
Warranty card
Manual
O-ring x 100
Insulated tube 10A 5x20mm
Other Specifications
▼Pressure control accuracy
±0.01% F.S.

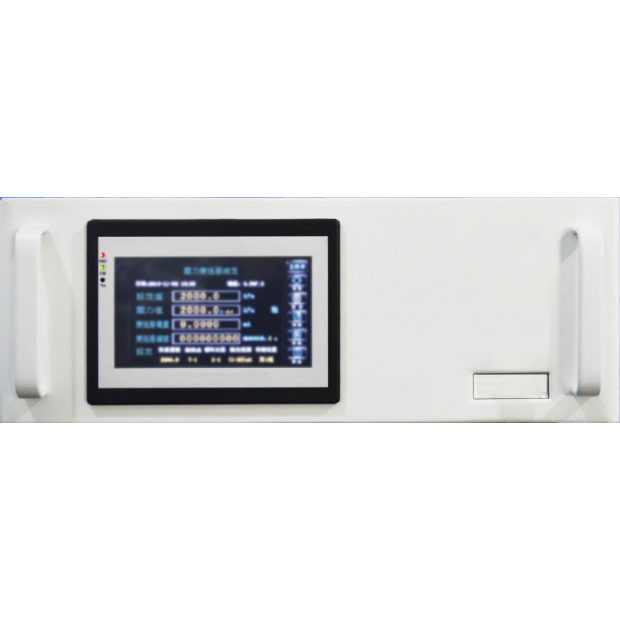

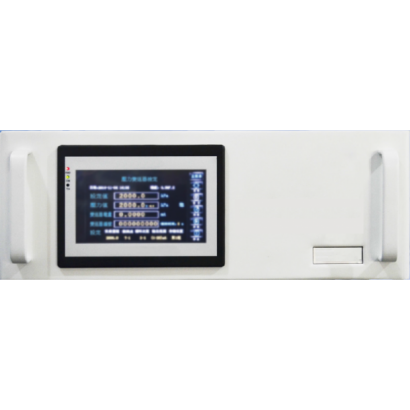

▼Screen display
7”color touch screen
Resolution 800x400 pixels 65536 kinds of color TFT, BGA, Active Matrix
Graphical interface, menu guide
▼Power supply
AC220V
▼Communication port
RS232 two-way communication
▼Pressure unit
kPa, bar, psi, kgf/cm2, mmHg, Pa, MPa, mmH2O
▼Control stability
0.002%F.S.
▼Automatic pressure stability time
<10s
▼Weight
About 26.5kg
