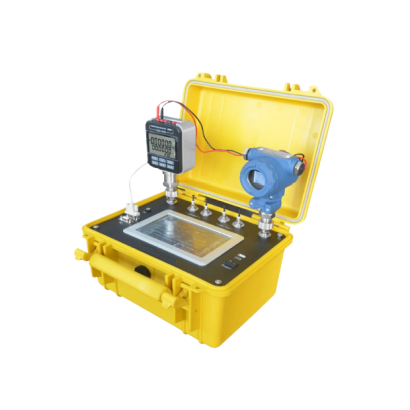

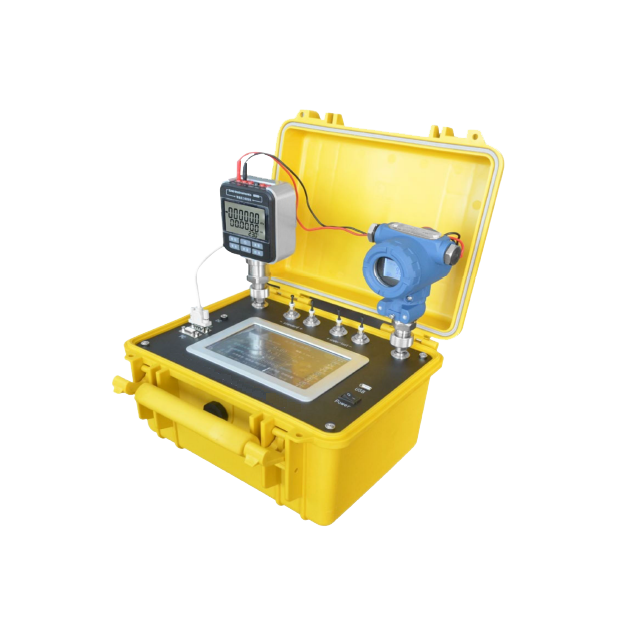

Automatic Pressure Calibrator APC-620
Automatic Pressure Calibrator APC-620
APC-620 automatic pressure calibrator adopts full intelligent control and can output the set pressure value rapidly and accurately. This product strictly follows the instrument calibration procedure, suitable for testing the pressure gauge, pressure transmitter and pressure switch, as well as large and periodic calibration work. Widely used in energy, chemistry, petroleum, metallurgy, precision measurement and military industries.
DETAIL
Model: APC-620
Introduction
APC-620 automatic pressure calibrator adopts full intelligent control and can output the set pressure value rapidly and accurately. This product strictly follows the instrument calibration procedure, suitable for testing the pressure gauge, pressure transmitter and pressure switch, as well as large and periodic calibration work. Widely used in energy, chemistry, petroleum, metallurgy, precision measurement and military industries.
Features
■ Pressure control accuracy ±0.01% F.S.
■ Portable design, only weights 6.5kg
■ Big touch screen－easy operation, beautiful interface, and convenient setting
■ Automatically save data and calculate verification results
■ Automatic protection function - motor overcurrent, overload, power undervoltage, locked-rotor, and leakage test. No pressure is generated when the set value exceeds the range.
■ Switchable pressure unit
Main Specifications
▼Size
298 (L) x 223(W) x 119(H) mm
▼Connection
M20 x 1.5 female thread
Other specifications are available made-to-order
Material: Stainless steel
▼Applicable calibration
pressure type
Gauge pressure
Differential pressure
▼Pressure range
Please refer to generate pressure range table
▼Applicable media
Gas that compatible with material of connection
▼Ambient temperature
0 to 50℃
▼Storage temperature
-20 to 60℃
▼Storage humidity
< 90%R.H. (Non-condensing)
▼Accessories
Power adapter
RS232 data cable
Wireless mouse
Quick plug
Serial port card
O-ring
Manual
Test report
Other Specifications
▼Pressure control accuracy
±0.01% F.S.
▼Screen display
7”LCD screen, English interface
Touch screen
▼Power supply
Adapter AC110V/220V to 25.2V
Internal battery
Continuous operation for more than 12 hours
▼Communication port
RS232 can be two-way communication with the computer
USB
▼Storage function
60 data/time
▼Temp. compensation range
-10 to 50℃
▼Control stability
<0.005%F.S.
▼Noise detection
≤40dB
▼Automatic pressure stability time
<10s
▼Weight
About 6.5kg
▼Other requests (Option)
Third party notarized documents
Tag
Thread adapter
Hose
Pressure calibration software
