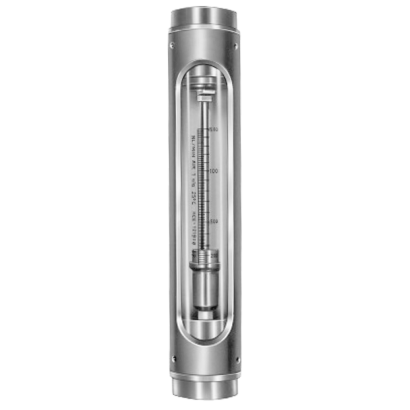

Variable Area Flow Indicator ATP Series
Variable Area Flow Indicator ATP Series
Features
■ Measure fluids and gases easily and accurately
■ High stability
■ Low cost
■ Measure fluids and gases easily and accurately
■ High stability
■ Low cost
DETAIL
Model：ATP Series
Features
■ Measure fluids and gases easily and accurately
■ High stability
■ Low cost
Main Specifications
▼Flow range
Min
Water : 0.01, L/min
Air : 0.1, NL/min
Max
Water : 300 , L/min
Air : 5000, NL/min
▼Tube material
Glass tube / PC
▼Mounting type
Direct mounting
▼Seal material
Neoprene / Viton / Silicon
▼Connection size
1/4”~1-1/4”
▼Connection type
PT / NPT (Female)
▼Applicable fluid
Clean fluid and fluid with low viscosity
▼Temperature influence
Calibration temperature as standard, environment changes per 4°C, 0.25% error increases
▼Max. operating pressure
Glass tube 6kg/cm2
PC tube10kg/cm2
▼Protection
IP54
Other Specifications
▼Housing
SS304 / SS316 / CS / PVC / PP
▼Protection tube
SS304 / SS316 / C.S (Standard) / Acrylic
▼Float
SS304 / SS316 / Teflone / PVC / PP / Nylon
▼Accuracy
Water : ±3% F.S.
Air : ±4% F.S.
