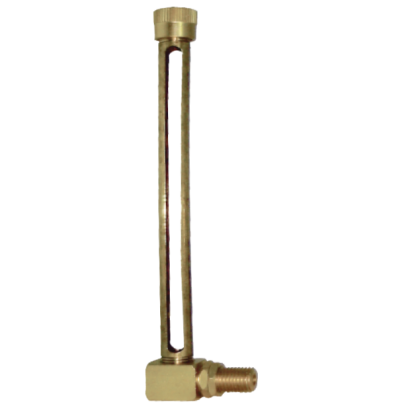

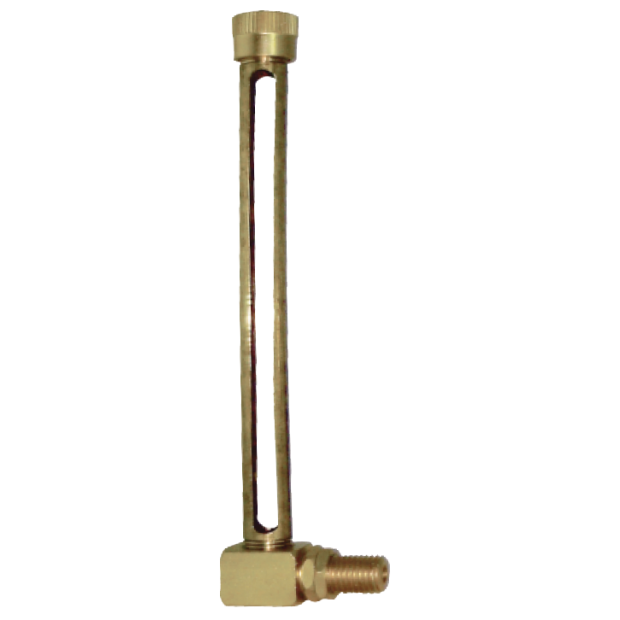

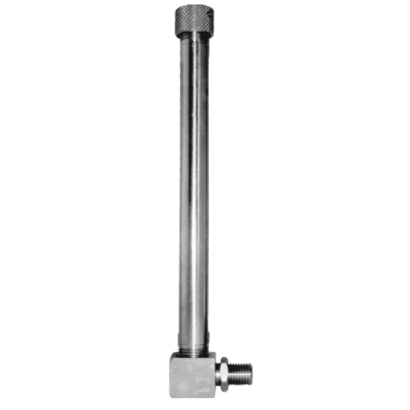

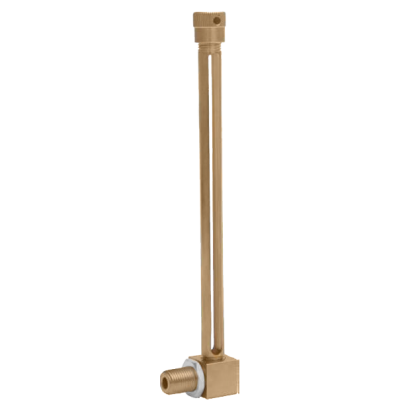

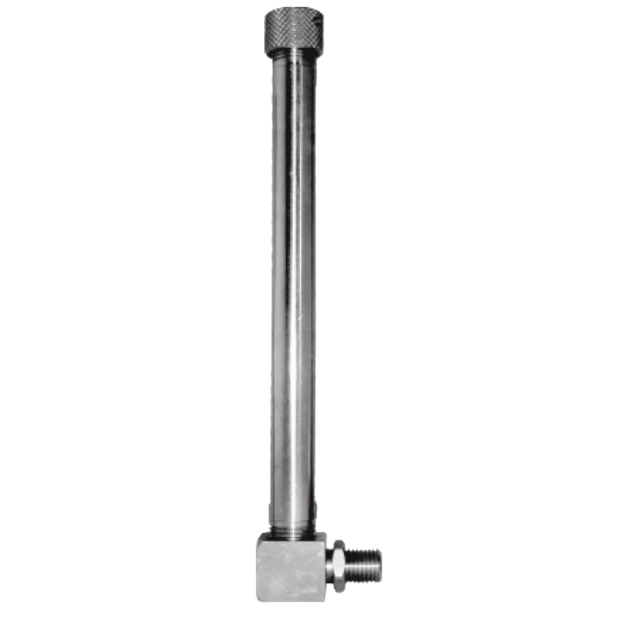

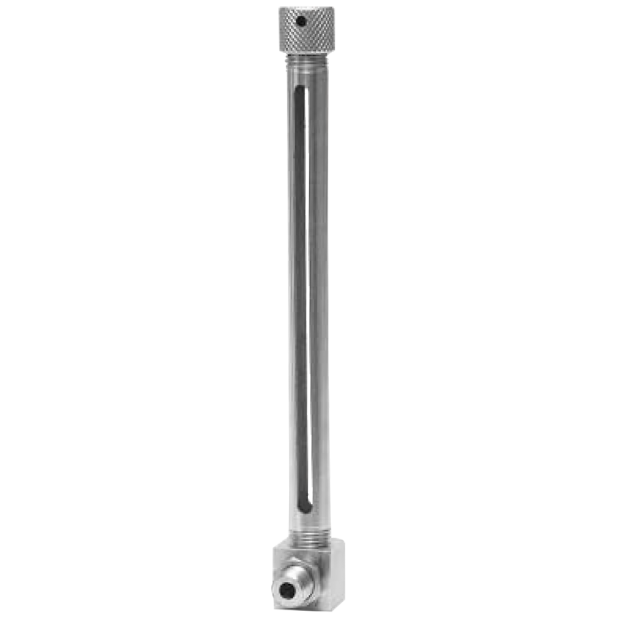

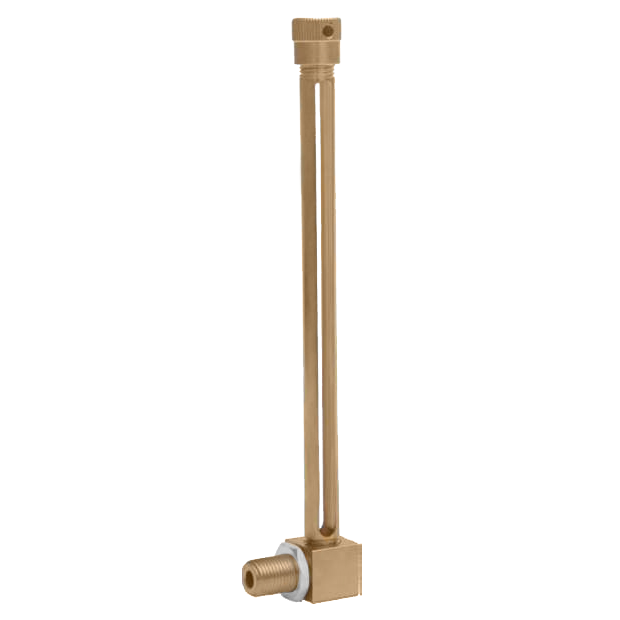

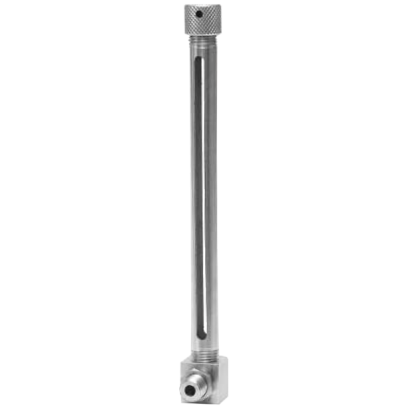

Tubular Level Gauge TLG Series
Tubular Level Gauge TLG Series
Features
■ Various material available: Stainless steel／Copper type
■ Selectable height
■ Max media temperature 100℃
■ Various material available: Stainless steel／Copper type
■ Selectable height
■ Max media temperature 100℃
DETAIL
Model: TLG Series
Features
■ Various material available: Stainless steel／Copper type
■ Selectable height
■ Max media temperature 100℃
Main Specifications
▼Type
Type A / Type B / Type
▼Process connection
Thread size: 1/4”, 3/8”
Thread type: PT, PF
▼Sealing material
Neoprene / Viton
▼Height
50／100／150／200 / 300 / 400mm
▼Applicable fluid
Clean, low viscous liquid
▼Media temperature
+100℃
▼Max operating pressure
4kg/cm2
Other Specifications
▼Tube
Glass
▼Body
Type A: SS304
Type B: SS316
Type C: Copper alloy
▼Pipe shield
Type A: SS304
Type B: SS304
Type C: Copper alloy
▼Cap
Type A: SS304
Type B: SS304
Type C: Copper alloy
▼Measuring principle
Liquid expansion
