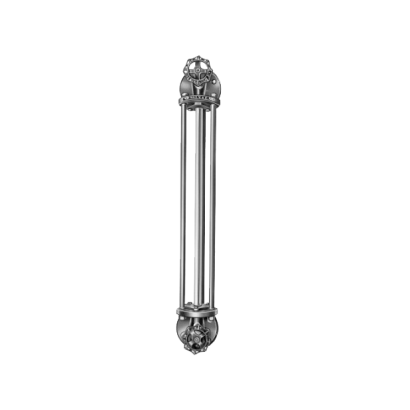

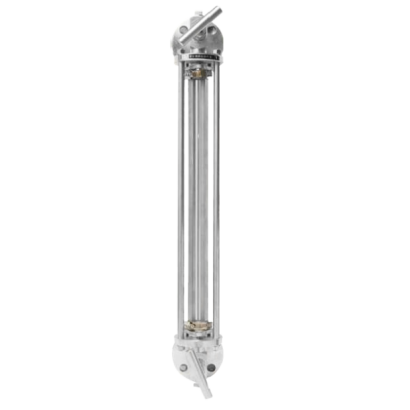

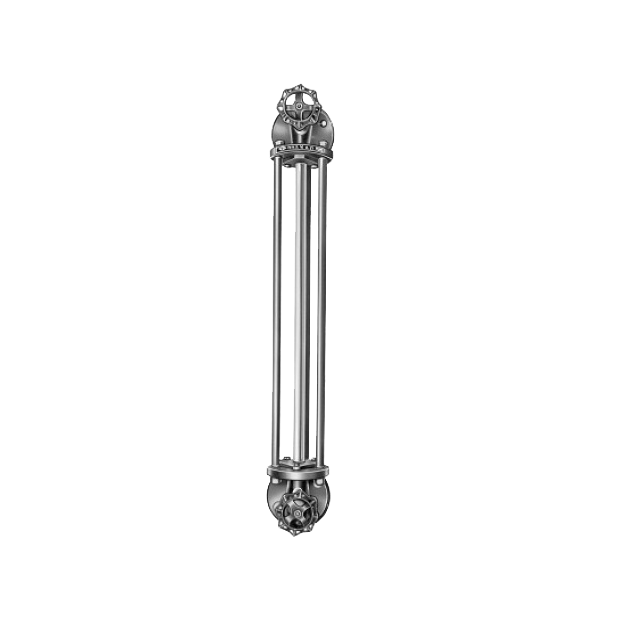

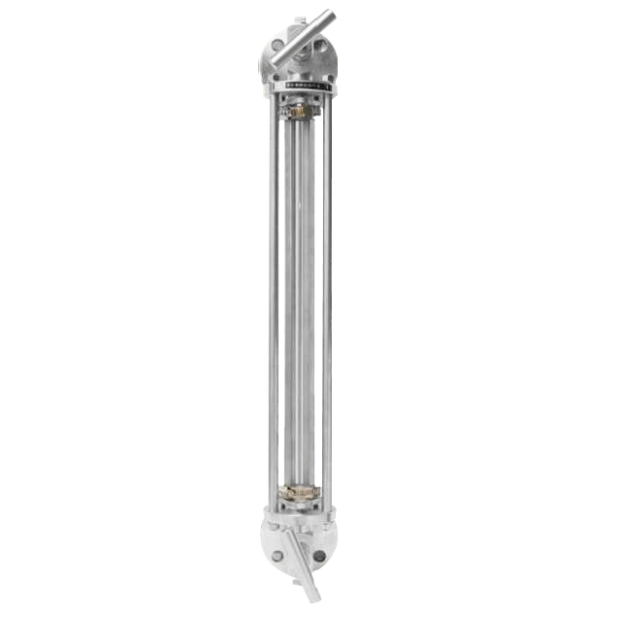

Tubular Level Gauge TLG-T Series
Tubular Level Gauge TLG-T Series
TLG-T Series tubular level gauge can be installed at outside of the tank to observe the inside liquid level.
DETAIL
Model: TLG-T Series
Introduction
TLG-T Series tubular level gauge can be installed at outside of the tank to observe the inside liquid level.
Features
■ OEM service
■ Transparent tube with external support rack
■ 90 degree angle valves at both ends can be used to isolate inside／outside of the tank
■ Tube protector is used to prevent internal tube be damaged by external forces
Main Specifications
▼Type
A－All SS304
B－SS304+SS316
C－PVC
▼Connection
Size: 1/2” or 3/4”
Flange connection
Flange material▼
A－SS304／B－SS 316／C－PVC
▼Tube material
Glass／PVC／Acrylic
▼Optional Accessories
Ball check／Vent cock／Drain cock
Other Specifications
▼Body material
A－SS304／B－SS 316／C－PVC
▼Valve material
A－SS304／B－SS 316／C－PVC
▼Tube protector material
A－SS304／B－SS 304／C－PVC
▼Support rack material
SS304
▼Sealing gasket
Neoprene ／Viton／Teflon
▼Max. operating pressure
Max. 4kg/cm2
▼Max. operating temperature
+100℃
