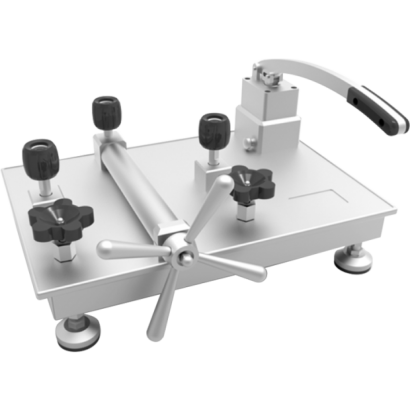

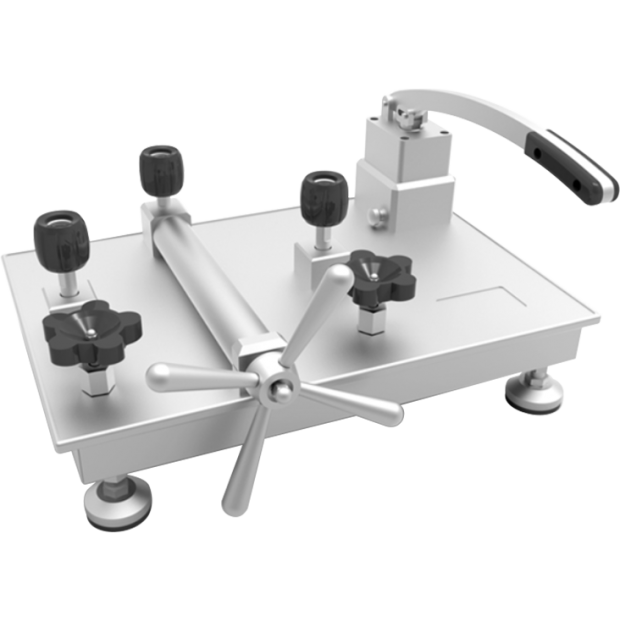

Desk-top Pneumatic Pressure Calibration Pump DH/VCP200E
Desk-top Pneumatic Pressure Calibration Pump DH/VCP200E
Apply to calibrating pressure gauges, transmitters, sensors and other pressure instruments
DETAIL
Model: DH/VCP200E
Introduction
Apply to calibrating pressure gauges, transmitters, sensors and other pressure instruments.
Features
■ Portable design
■ Made up of top quality stainless steel and aluminum materials and with advanced German sealing technology and components
■ The medium of pressure transmission is clean air, increasing the accuracy when calibrating instruments
■ Smoothly switch between positive and negative (vacuum) pressure
■ The open structure enabling easy to clean and maintain
■ Fine adjustment resolution 0.1mbar
Main Specifications
▼Dimension
300 x 300 x 150 mm
▼Thread size
Material: SS316
1/4”, 1/2”
▼Thread type
BSPT, NPT, PF
▼Pressure range
Min: -0.95bar
Max: 60 bar
▼Adjustment resolution
0.1mbar
▼Medium
Air
Other Specifications
▼Body materials
Stainless steel, aluminum alloy
▼Sealing materials
Buna-N
▼Pressurize operation
Manual
▼Weight
10kg
▼Accessory
Sealing components x 10
Switch valve sealing ring x 4
