Liquid Column Manometer LCM Series
Liquid Column Manometer LCM Series
Liquid column manometer consists of glass tube with high precision scale in aluminum alloy socket. UA and UB type liquid column manometer is used for measuring pipeline wind pressure or differential pressure in laboratory or process pipeline in factory.
DETAIL
Model: LCM Series
Introduction
Liquid column manometer consists of glass tube with high precision scale in aluminum alloy socket. UA and UB type liquid column manometer is used for measuring pipeline wind pressure or differential pressure in laboratory or process pipeline in factory.
Features
■ Aluminum alloy case rigid design
■ High precision scale ensures clear observation
■ Wall mount easy installation
■ Various range and size for selection
Main Specifications
▼Type

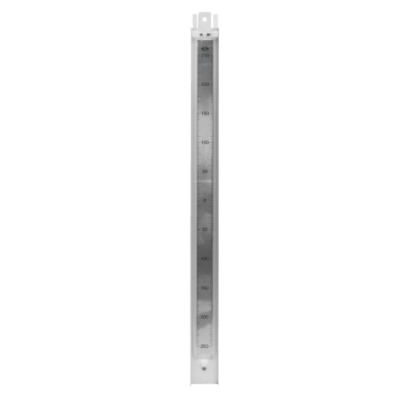

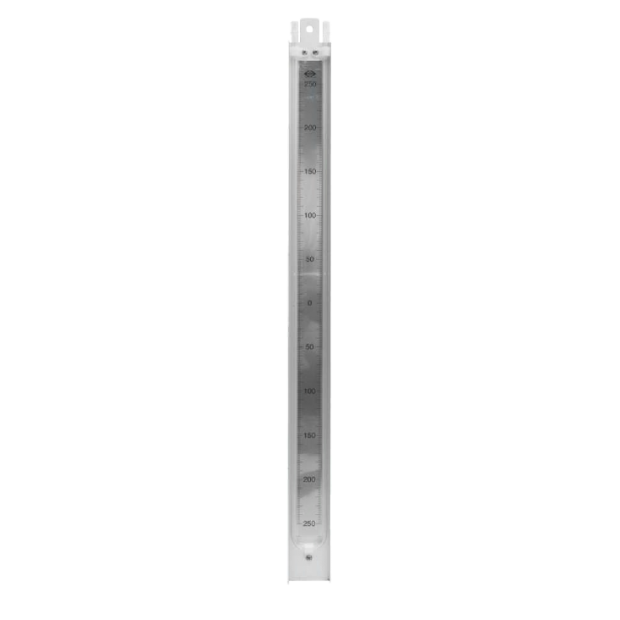

AT-UA simple type

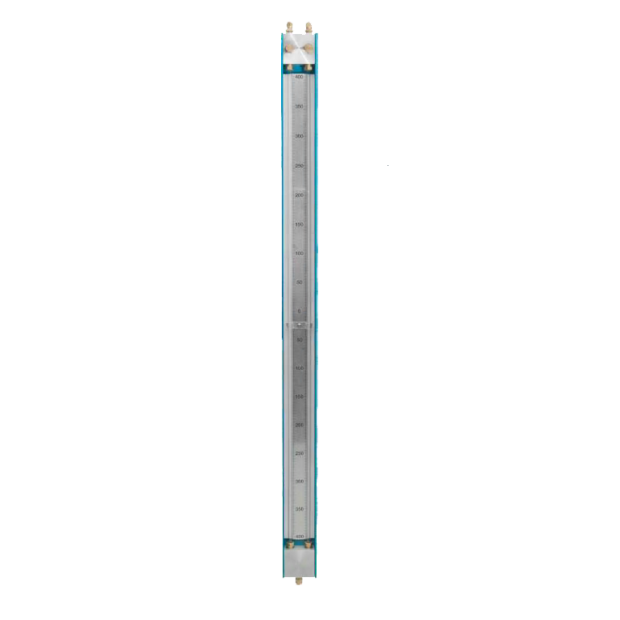

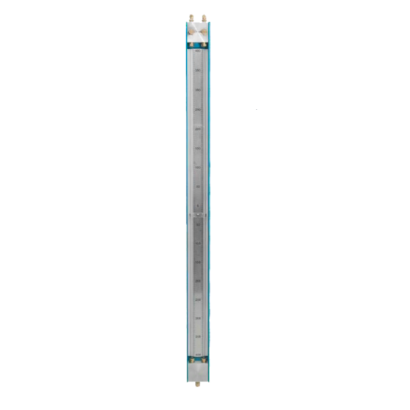

AT-UB rigid type
▼Connection
AT-UA simple type▼
Rubber hose
AT-UB rigid type▼
1/4”PT (female)
▼Installation type
Wall mount
▼Measurement range
±100 / ±150 / ±250 / ±400 / ±500mm
Other Specifications
▼Case
Aluminum alloy
▼Scale
1mm - 1 scale
▼Tube
AT-UA: U-shape glass tube Ø9x5
AT-UB: 2x Vertical glass tube Ø9x5
▼Fix clamp (AT-UA type only)
Acrylic
▼Valve (AT-UB type only)
Vent and exhaust valve
