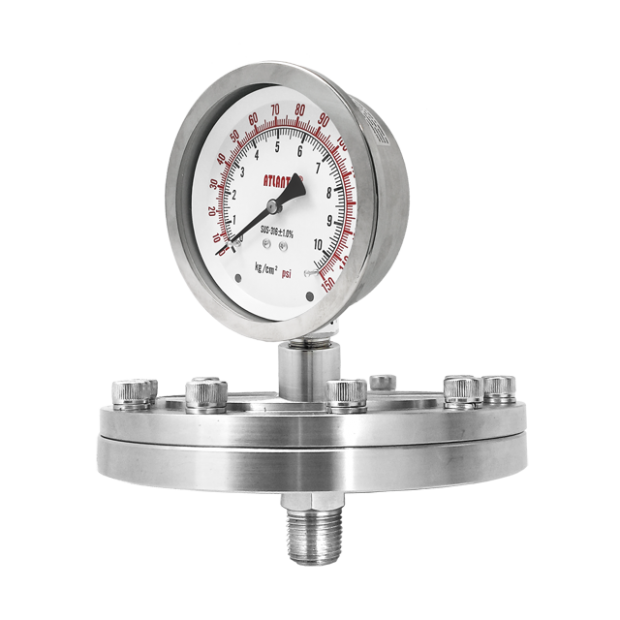

Model: WDS1160(S)
Features
■ OEM service
■ Isolate pressure gauge from corrosive, viscous, and low crystallinity fluid.
■ Threaded diaphragm seals with flushing hole (option)
■ Base on the diaphragm material is PTFE, the minimum measureable pressure is 1000mmH2O
Main Specifications
▼Diaphragm seals diameter
160 mm
▼Structure
Threaded diaphragm seals
Thread connection
▼Filling oil
Glycerin / Silicone oil (depends on media temp.)
▼O-ring
Rubber
▼Threaded size
1/4”,3/8”,1/2”,3/4”,1”
▼Threaded type
BSPT, NPT, PF
▼Pressure range
Min: 0.1 bar
Max: 60 bar
▼Ambient temperature
10°C to 60°C
▼Fluid temperature
+80°C (standard)
For fluid temp. 80℃ to 400℃ or ambient temp. below 10℃: available made-to-order
Ambient application
Petrochemical plant
Chemical plant
Paper mill plant
Waste water treatment
Dye industry
Applicable fluid
Corrosive
Low-crystallinity
