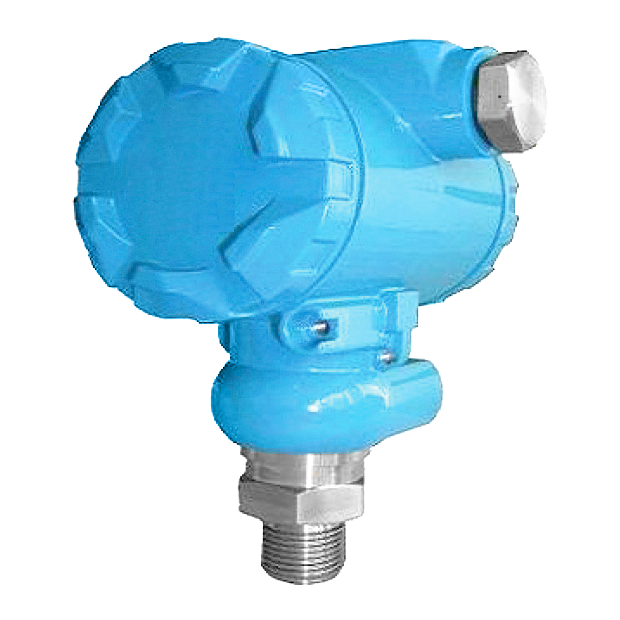

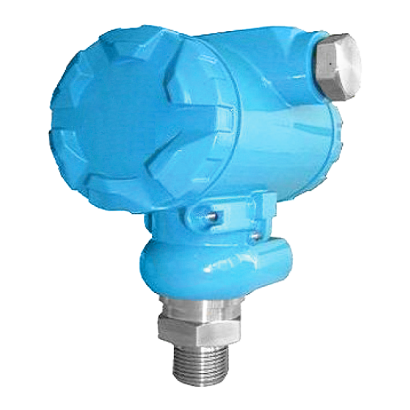

Pressure Transmitter SPT-EP
Pressure Transmitter SPT-EP

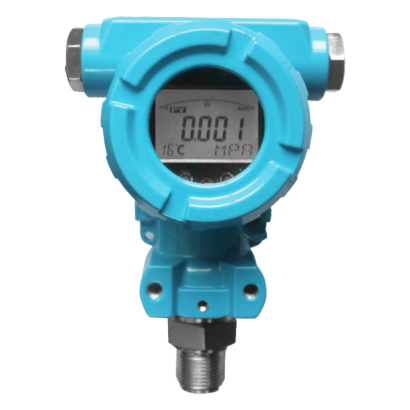

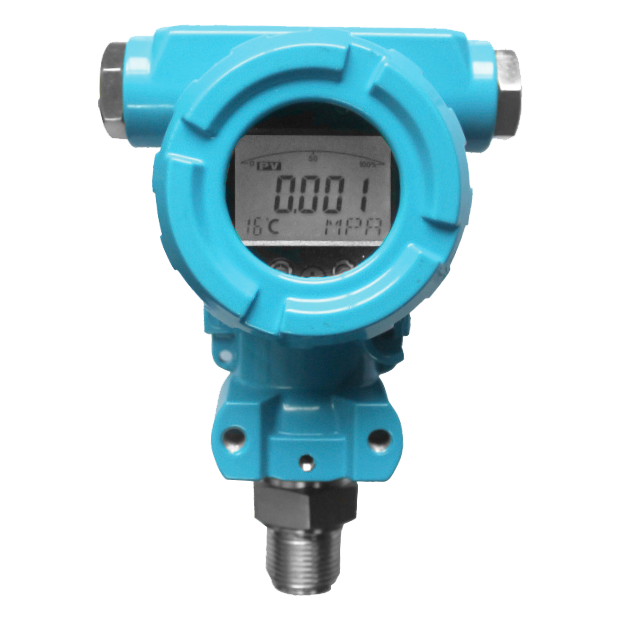

SPT-EP pressure transmitter adopts high quality SS316L diaphragm/ceramic pressure sensor. It features 4-digit LCD display. The easy installation and field operation makes SPT-EP suitable in hydraulic, petroleum, chemical, electronical system and auto industrial process control.
DETAIL
Model: SPT-EP
Introduction
SPT-EP pressure transmitter adopts high quality SS316L diaphragm/ceramic pressure sensor. It features 4-digit LCD display. The easy installation and field operation makes SPT-EP suitable in hydraulic, petroleum, chemical, electronical system and auto industrial process control.
Features
■ OEM service
■ 4.5-digit LCD display
■ Various pressure units available
■ Suitable for extensive data collecting and auto control system
Main Specifications
▼Pressure connection
Material: stainless steel
M20x1.5
G1/2”
G1/4”
1/4”NPT
Other connection
specifications are available
made-to-order
▼Pressure range
-0.1~250 MPa
▼Applicable fluid
Gas and liquid that compatible
with stainless steel
▼Operating temperature
-20 to 85℃
▼Protection level
IP66
Other Specifications
▼Housing
Stainless steel (standard) /
Aluminum die casting
▼Power supply
12~36VDC (standard: 24V)
▼Screen display
4.5-digit LCD display /
4-digit LED display
▼Measuring elements
Diaphragm
Material:
SS316L (standard)/ Ceramic
▼Resistive load
≤ 750Ω
▼Zero & span temp. drift
±0.02% F.S.
▼Accuracy
0.1/0.25/0.5% F.S.
▼Repeatability
≤ 0.1/0.25/0.5% F.S.
▼Stability
±0.25% F.S. / year
▼Overpressure
3*F.S.
▼Response time
≤ 1ms
▼Other requests (Option)
Third party notarized
documents
Inspection report
