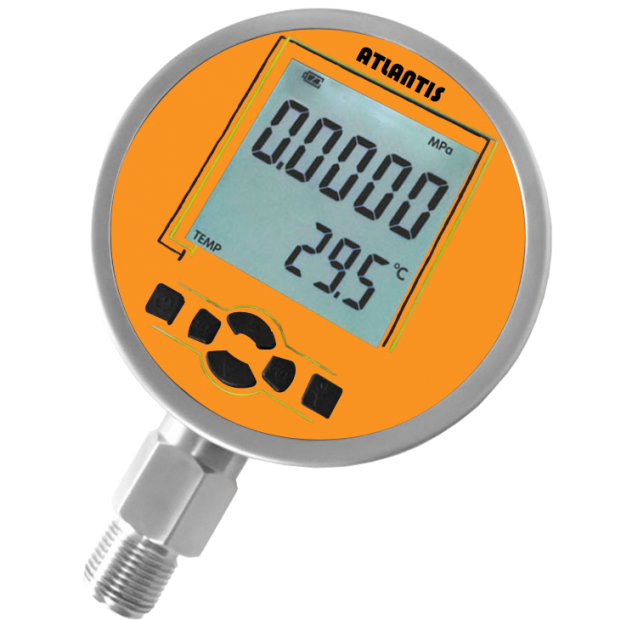

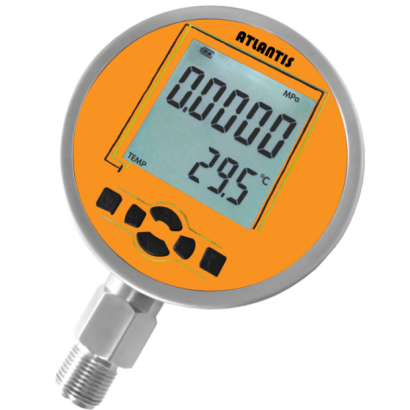

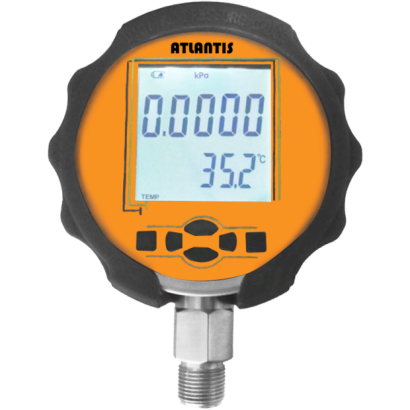

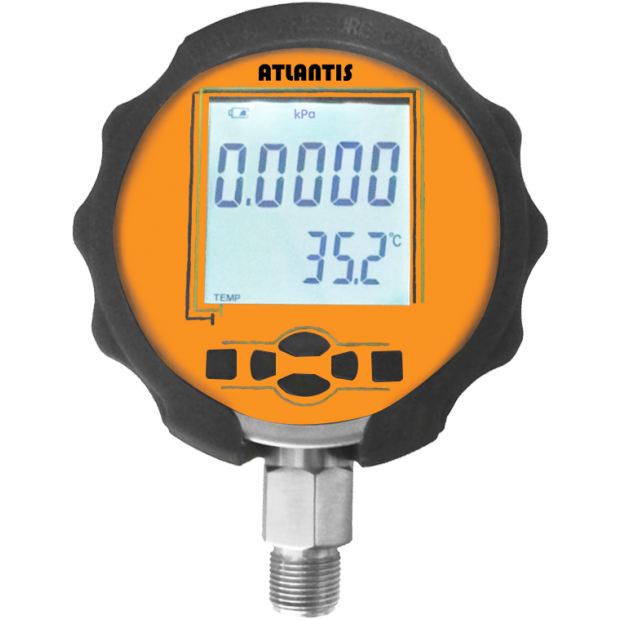

High Accuracy Digital Pressure Gauge DPG-X002

High Accuracy Digital Pressure Gauge DPG-X002

DPG-X002 adopts high accuracy ADC and high-speed microprocessor as measuring elements. It features wide pressure range, lower power consumption, peak and valley value display, and temperature display. Suitable for mechanical and electronic industry, pressure laboratory, and automated construction
machinery.
  • High Accuracy Digital Pressure Gauge
  • High Accuracy Digital Pressure Gauge
DETAIL
High Accuracy Digital Pressure Gauge
Model: DPG-X002

Introduction

DPG-X002 adopts high accuracy ADC and high-speed microprocessor as measuring elements. It  features wide pressure range, lower power consumption, peak and valley value display, and  temperature display. Suitable for mechanical and electronic industry, pressure laboratory, and  automated construction machinery.

Features
■ OEM service
■ Lower power consumption, up to 3600 working hours with AA batteries.
■ 5-digit screen display with white backlight, with peak and valley value & temperature display function
■ Wide pressure range for selections
■ 10 switchable units: MPa, kPa, bar, Pa, mbar, psi, mmHg, mH2O, Torr, kgf/cm2
■ Accuracy can up to 0.05%F.S.

Main Specifications
▼Size
4”(105mm)
▼Pressure connection
Thread spec.:
M20*1.5, G1/4”, G1/2", 1/2"NPT、1/4"NPT
Other thread size and type are available made-to-order
Material: SS304
▼Pressure range
Please refer to pressure range table
▼Applicable media
Liquid and gas that compatible with Stainless steel
▼Operating temperature
-5~40℃

Other Specifications
▼Case material
SS304
▼Screen display
5-digit LCD display with white backlight
Main and sub-line display
▼Pressure unit
MPa, kPa, bar, Pa, mbar, psi, mmHg, mH2O, Torr, kgf/cm2
▼Power supply
AA battery x3
USB power supply
▼Accuracy
±0.05%F.S. / ±0.1%F.S.
▼Stability
±0.1%F.S. / year
▼Sampling rate
1-10 times / sec.
(This can be set by user)
▼Overpressure
150% (>10MPa)
200% (≤ 10MPa)
▼Temperature compensation
0~40℃
▼Accessory
Portable case
USB power line
