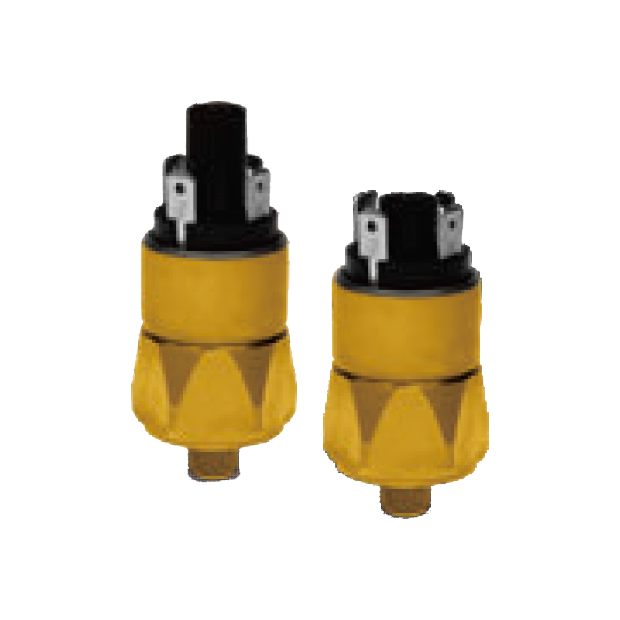

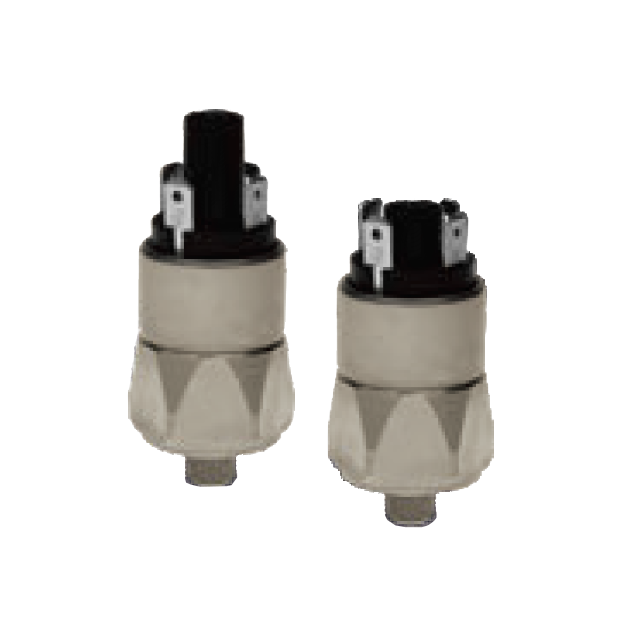

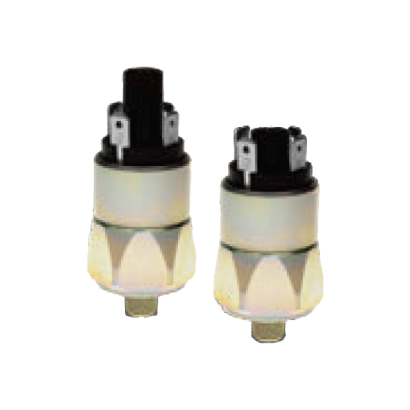

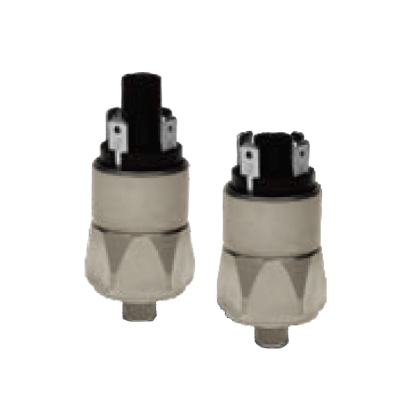

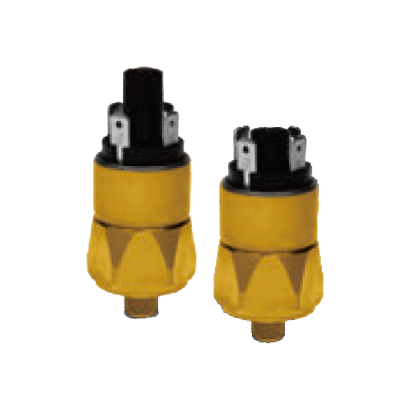

Mechanical Pressure Switch AT-PS275
Mechanical Pressure Switch AT-PS275
AT-PS275 pressure switch is suitable for pressure detection and monitor in piping system, automobile braking system, air compressor, medical equipment and tire manufacturing industry. Opposing the diaphragm is a compression spring. When the process pressure is greater than the force of the compression spring the switch contact will open or close depending on the choice of the contact form.
DETAIL
Model: AT-PS275
Introduction
AT-PS275 pressure switch is suitable for pressure detection and monitor in piping system, automobile braking system, air compressor, medical equipment and tire manufacturing industry. Opposing the diaphragm is a compression spring. When the process pressure is greater than the force of the compression spring the switch contact will open or close depending on the choice of the contact form.
Features
■ Robust in any severe application
■ High quality, cost effective
■ A variety of fixed or adjustable ranges, materials and electrical connections are available
■ Suitable for using in a pressurized system to accommodate the sensing and controlling of process
pressure
Main specifications
▼Contact wiring
Push-on／Spade
▼Hex length
27 mm
▼Pressure connection
M10 x 1, M12 x 1.5 , 1/8”PT, 1/4”PT, G1/8”, G1/4”, 1/8”NPT, 1/4”NPT
▼Adjustable pressure range
0…0.3 to 100bar (≤ 20bar with UL certification)
▼Applicable fluid
Gas and liquid that compatible with connection material
▼Operating temperature
-10~+100℃ (standard)
-30~+100℃ (low-temp type)
▼Vibration resistance
10G/5-200Hz sine-ware
Other Specifications
▼Case material
Zinc-plated steel／SS316／Brass
▼Diaphragm material
NBR／Viton／EPDM
▼Contact type
SPDT
▼Contact rating
2A/50VDC, 4A/250VAC
▼Response frequency
2Hz
▼Max. Voltage
1.5KV
▼Electric insulation
100MΩ
▼Accuracy
±0.1bar / ±0.5bar /±5% F.S. (depends on range)
▼Service life
1.5 x 106 cycles (< 50bar)
▼Screw torque
<0.35Nm
