Melt Pressure Transmitter PT-HTM Series
Melt Pressure Transmitter PT-HTM Series
PT-HTM Series melt pressure transmitter transfer pressure into non-interference amplified signals including 4-20mA, 0-5V, 0-10V, which could be directly input to position machine.
DETAIL
Model: PT-HTM Series
Introduction
PT-HTM Series melt pressure transmitter transfer pressure into non-interference amplified signals including 4-20mA, 0-5V, 0-10V, which could be directly input to position machine.
Features
■ OEM service
■ Wide pressure range
■ Output signal: 4-20mA, 0-5V, 0-10V
■ Accuracy can up to ±0.25%F.S.
■ 4 types of thermocouple are available for selections
■ Screw length is available made-to-order
Main Specifications
▼Installation type
D- Direct measurement type
R- Remote Reading
TP- Temperature and Pressure Integrated
▼Process connection
1/2”-20UNF
M14*1.5
M18*1.5
M22
G3/4”
Other thread spec. are available made-to-order
▼Pressure range▼Installation type

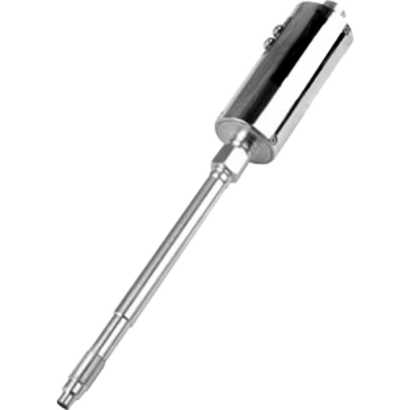

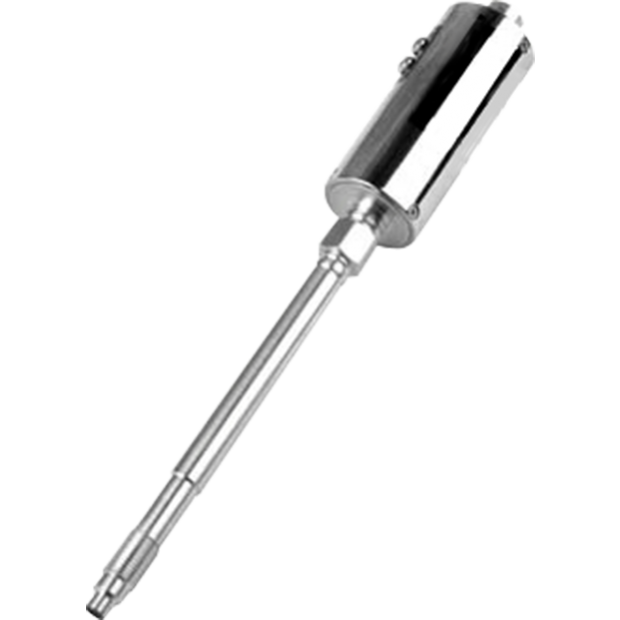

D- Direct measurement type

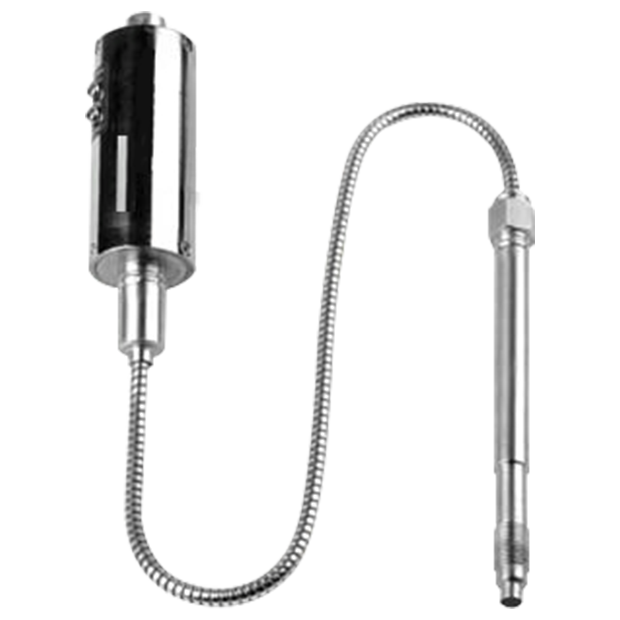

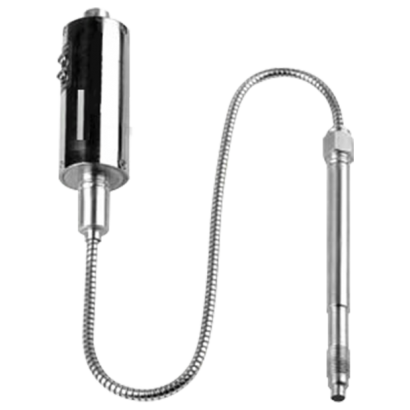

R- Remote Reading

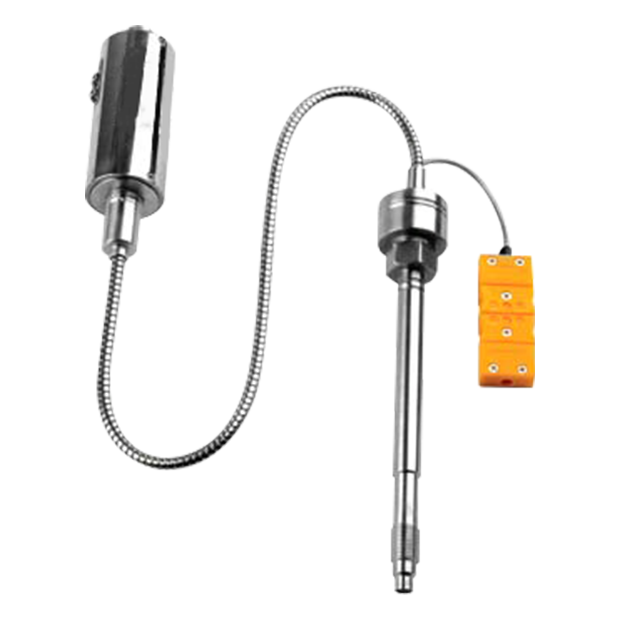

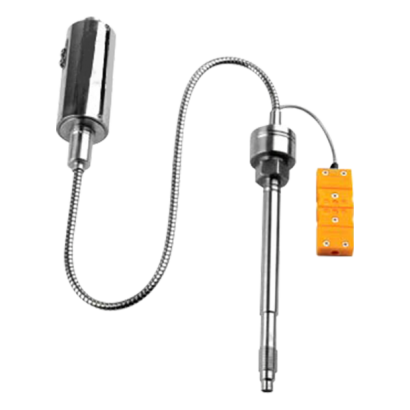

TP- Temperature and Pressure Integrated
▼Process connection
1/2”-20UNF
M14*1.5
M18*1.5
M22
G3/4”
Other thread spec. are available made-to-order
▼Pressure range
0…10 to 2000bar
▼Screw length
Standard: 6 inch (152mm)
Other screw length is available made-to-order
Other Specifications
▼Case material
Stainless steel
▼Power supply
24VDC
▼Output signal
4-20mA, 0-5V, 0-10V
▼Electronic connection
6-pin / 8-pin
▼Thermocouple
Pt100 / E type / J type / K type
▼Accuracy
±0.25%F.S. / ±0.5%F.S.
▼Load resistance
350 Ω±10%
▼Overload
1.5*F.S.
▼Repeatability
±0.2%F.S.
▼Max. diaphragm temp.
D: 320℃
R: 400℃
TP: 500℃
▼Shunt calibration
80%±1%
