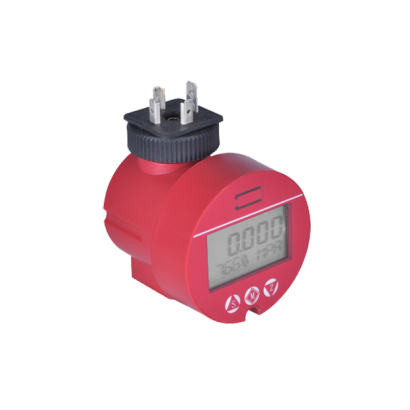

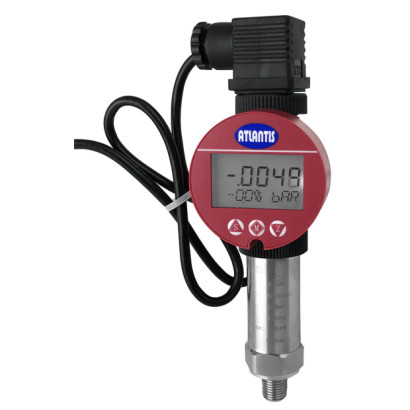

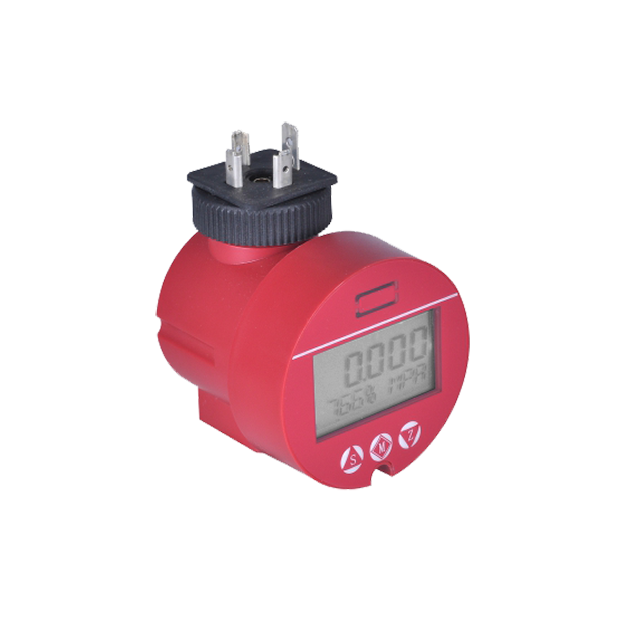

Intelligent display unit AT-LCD11
Intelligent display unit AT-LCD11
LCD intelligent display unit with 3 buttons design enables field parameter adjustment. This rotatable 350° display unit is suitable for all 4-20mA transmitter field readings display and pressure control.
DETAIL
Model: AT-LCD11
Introduction
LCD intelligent display unit with 3 buttons design enables field parameter adjustment. This rotatable 350° display unit is suitable for all 4-20mA transmitter field readings display and pressure control.
Features
■ Adjustable 4-20mA corresponding value
■ 350°rotatable display unit
■ Suitable for all 4-20mA transmitter field display
■ The power is supplied directly from transmitter (4-20mA), without external power supply
■ 36 kind of selectable units (pressure, temperature or speed unit)
■ 3 display modes available: mA, PV, %
■ Switchable decimal point: 0-4 decimal points
■ Four switch states - Hysteresis N.O. / N.C. Window Comparator N.O. / N.C.
■ Adjustable delay time
■ On-off alarm output (option)
Main specifications
▼Screen display
39x23 (W x H)
350° rotatable angle
Double row 5-bit/8-bit, 7-section/16 section with backlight LCD display -19999-99999
ADC sampling: 24-bit
▼Electrical connection (transmitter)
DIN 43650, female seat
M12*1 (5-pin) female seat
▼Electrical connection (system)
DIN 43650, male seat
M12*1 (5-pin) male seat
▼Display units
kPa, MPa, Pa, bar, mbar, psi, mH2O, mmH2O, cmH2O, mmHg, Torr, atm, kg, g, mg, N, kN, ℃, ℉, K, %RH, %, VOL, PPM, %LEL, pH, m, cm, mm, inch, m/s, Ω, kΩ, mV, V
▼Ambient temperature
-20 to 70℃
▼Humidity
5-85% R.H.
▼Vibration resistance
Vibration: 20g (20-5000Hz)
Shock: 100g/11ms
▼Protection level
IP55
▼Certificate
EMC: EN61326
▼Warranty
12 months
Other Specifications
▼Housing
Material: ABS+PC
Color: red/black
▼Display mode
mA, PV, %
▼Input & output signal
4-20 mA
▼Power supply
4-20mA loop power supply
8VDC (max. pressure drop)
▼Accuracy
0.1%F.S., ±1 digit
▼Delay time
0-255ms
▼Switch state
Hysteresis N.O. / N.C.
Window Comparator N.O. / N.C.
▼Switch alarm quantity (option)
PNP/NPN x2 (Max)
▼Alarm warning
Low alarm: 3.5mA
High alarm: 23mA
▼Maximum load
Continuous max load 120mA
▼Refresh rate
Max 10 times/sec
▼Insulation
500V/100MΩ
▼Electrical protection
Short-circuit protection, reverse polarity protection
▼Weight
About 100g
