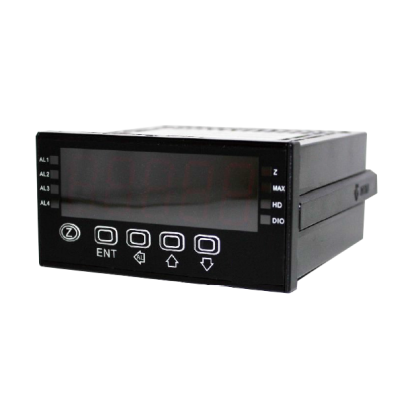

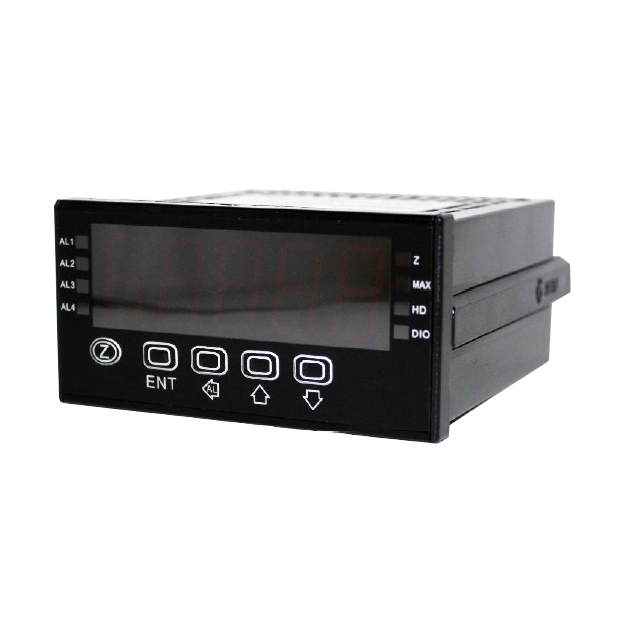

5-digit Multi-Function Panel Meter (AC Average Value Type) ATM-MF5H-A
5-digit Multi-Function Panel Meter (AC Average Value Type) ATM-MF5H-A
Features
■ OEM service
■ High accuracy 0.2% (±1 digit)
■ Wide voltage (up to 600V) and current (up to 10A) range
■ High voltage (up to 10μV) and current (10μA) display resolution
■ Adjustable decimal point
■ High security and stability
■ Flameproof case (PC)
■ Extensive tested product, comply with CE certificate
■ Protection level IP 65 (Install a waterproof case is needed, optional)
■ OEM service
■ High accuracy 0.2% (±1 digit)
■ Wide voltage (up to 600V) and current (up to 10A) range
■ High voltage (up to 10μV) and current (10μA) display resolution
■ Adjustable decimal point
■ High security and stability
■ Flameproof case (PC)
■ Extensive tested product, comply with CE certificate
■ Protection level IP 65 (Install a waterproof case is needed, optional)
DETAIL
Model: ATM-MF5H-A
Features
■ OEM service
■ High accuracy 0.2% (±1 digit)
■ Wide voltage (up to 600V) and current (up to 10A) range
■ High voltage (up to 10μV) and current (10μA) display resolution
■ Adjustable decimal point
■ High security and stability
■ Flameproof case (PC)
■ Extensive tested product, comply with CE certificate
■ Protection level IP 65 (Install a waterproof case is needed, optional)
Main specification
▼Dimension
96 x 48 mm
▼Power supply (voltage)
AC/DC 100-240 / AC/DC 24-60V
▼Allowable power supply voltage range
AC/DC 85~ 265V / AC/DC 22~90V
▼Input signal (Voltage) range
0-50mV / 0-5V / 1-5V / 0~10V / 0-36V / 0-300V / 0-600V
▼Input signal (Current) range
0-20μA / 0-200 μA / 0-2 mA / 0-20 mA / 0-200mA / 4-20mA / 0-2A / 0-5A / 0-10A
▼Output signal
Analog output / DC 0(4)~20mA / 0~5(10)V
▼Alarm
2-4 Relays / 2-4 Open
collectors
▼Operating temperature
0°C to +60°C
▼Storage temperature
-10°C to 70°C
▼Operating humidity
20-90% R.H. (non-condensing)
▼Storage humidity
20-90% R.H. (non-condensing)
▼Temperature coefficient
≦ 100ppm/℃ (0~60℃)
Other specification
▼Power consumption
< 6VA (full mode)
▼Accuracy
Display: ±0.2% (±1 digit)
Analog output: ±0.2%
▼Housing material
PC UL-94V0
▼Installation type
Panel mount
▼Sampling type
Double slope integration
▼Sampling cycle
16 cycles/sec
▼Parameter setting
Click button to set parameter
▼Display screen
0.8”high brightness red LED (with overload and reversed polarity indication)
▼Display range
-19999~99999
Zero adjustment: -19999~99999
▼Output adjustable range
Zero: -40% ~ +40%
Span: -40% ~ +20%
▼Output resolution
15 bit
▼Output response time
< 250 ms (0~90%)
▼Output capability
<0.2W; load 500Ω
Voltage output (10V): ≦ 20mA
Current output (20mA): ≦ 10V
▼Input impedance
Voltage input:
> 2V: 20KΩ/V
≦ 2V: higher than 200MΩ
Current input:
≧ 0.2A: about 100mV
(end pressure drop)
< 0.2A: 1V (end pressure drop)
▼Communications protocol
RS-485 Modbus RTU mode
▼Baud rate
38400 / 19200 /9600 / 4800 bps
▼Insulation property
Among input/output/power/case
▼Insulation impedance
≧100MΩ / DC 500V
▼Voltage endurance test
2KVac/1min (input/power)
▼Weight
About 450g
▼Accessory
Facing / Terminal block case / Support rack / Screws
