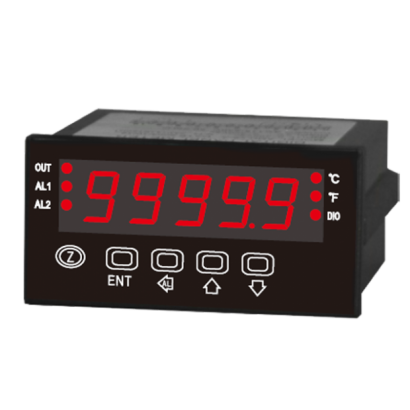

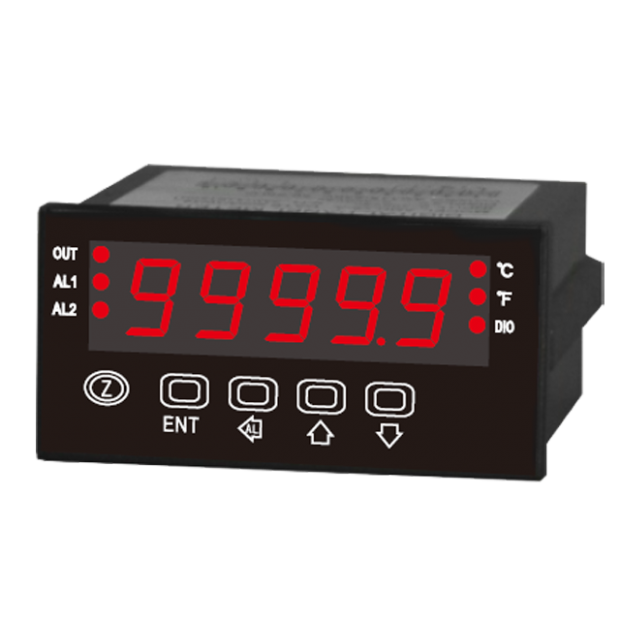

5-digit Micro Process Thermocouple Meter ATM-DC5H-TC
5-digit Micro Process Thermocouple Meter ATM-DC5H-TC
Features
■ Measuring different types of thermocouples (K, J, E, R, S, B, T)
■ 0.56”high brightness red LED display
■ Display range:-19999~99999
■ Switchable temperature unit (℃/℉)
■ High stability
■ Case materials adopt flameproof PC to ensure high safety
■ Measuring different types of thermocouples (K, J, E, R, S, B, T)
■ 0.56”high brightness red LED display
■ Display range:-19999~99999
■ Switchable temperature unit (℃/℉)
■ High stability
■ Case materials adopt flameproof PC to ensure high safety
DETAIL
Model: ATM-DC5H-TC
Features
■ Measuring different types of thermocouples (K, J, E, R, S, B, T)
■ 0.56”high brightness red LED display
■ Display range:-19999~99999
■ Switchable temperature unit (℃/℉)
■ High stability
■ Case materials adopt flameproof PC to ensure high safety
Main specification
▼Dimension
96 x 48 mm
▼Input thermocouple
Type B: 200~1800℃
Type E -185~900℃
Type J: -200~200℃
Type K: -200~1360℃
Type R: 0~1760℃
Type S: 0~1750℃
Type T: -200~395℃
▼Power supply
AC/DC 100~240V / AC/DC 22~60V
▼Power consumption
< 8.5VA (all functions output)
▼Output
1 main control output / 2 alarms output / Analog output / Loop power output / RS-485
Note: the above outputs are options, it is possible to select multiple types of output for the same product
▼Operating temperature
0°C to +60°C
▼Storage temperature
-10°C to 70°C
▼Operating humidity
20-90% R.H. (non-condensing)
▼Storage humidity
20-90% R.H. (non-condensing)
▼Temperature coefficient
100ppm/℃ (0~60℃)
▼Temperature error
Standard: 25℃ max. error: 0.3% F.S/year
Other specification
▼Accuracy
±0.2% F.S.
▼Cold junction compensation
±0.5℃
▼Display screen
0.56”high brightness red LED
▼Sampling cycle
16 cycles/sec
▼Display range
-19999~99999
Zero adjustment: -19999~99999
▼Over range indication
doFL / ioFL or -doFL / -ioFL
▼Polarity indication
“-” will display when input signal polarity is reversed
▼Disconnection indication
“OPEn” will display when thermocouple is disconnected
▼Parameter setting
Click button to set parameter
▼Data storage
EEPROM
▼Alarm action
“≧ (Hi) on” or “< (Lo) on”
▼Alarm action delay time
0~99 sec
▼Relay contact capacity
AC 277V / 7A
DC 30V / 7A
▼Proportion control area
0~999%
▼Proportion control time
0~99 secs
▼Analog output resolution
15 bits
▼Output response time
< 250 ms (0~90%)
▼Output capability
Voltage output: < 20mA
Current output: < 10V
▼Communications protocol
RS-485 Modbus RTU mode
▼Baud rate
38400 / 19200 /9600 / 4800 bps
▼Voltage endurance test
1.5KVac/1min (input/power)
▼Input impedance
Voltage:
> 2V: 20KΩ/V
≦ 2V: more than 200MΩ
Current: ≧ 0.2A: 100mV (end pressure drop)
< 0.2A: 1V (end pressure drop)
