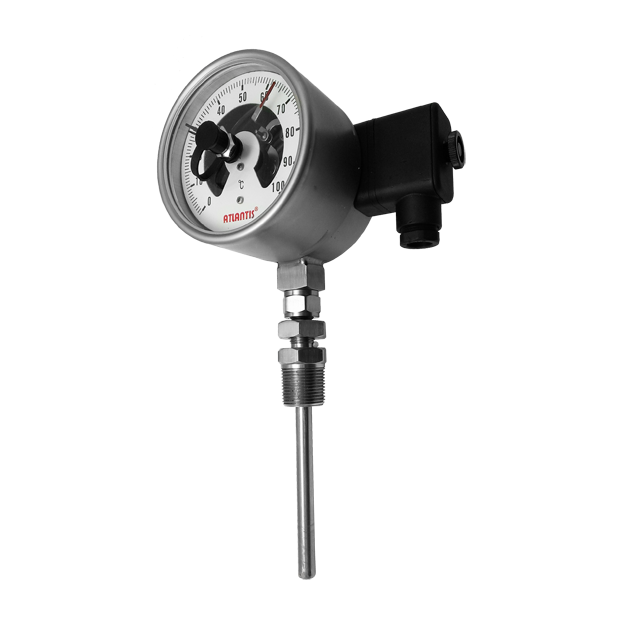

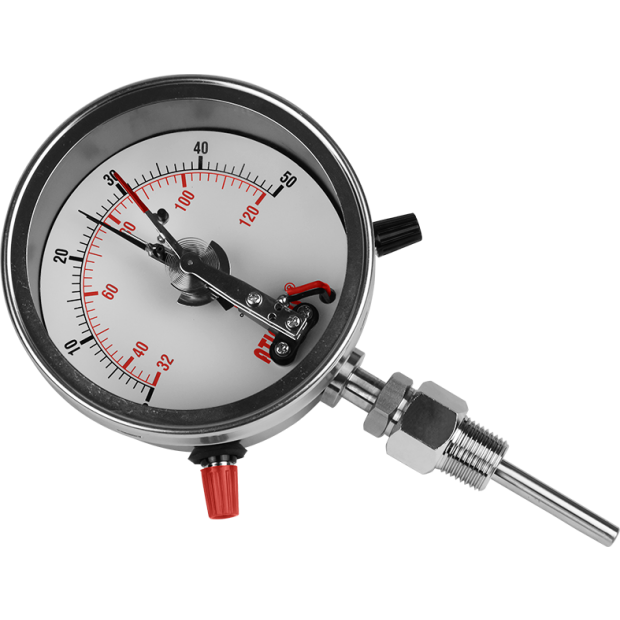

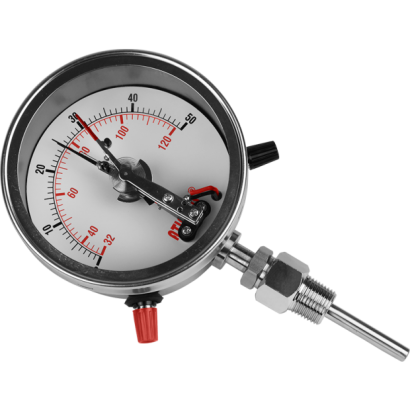

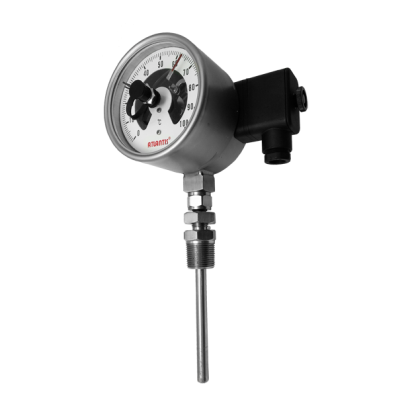

Bimetal Thermometer Gas-inmetal with Electrical Contact (Bottom mount) BTIC
Bimetal Thermometer Gas-inmetal with Electrical Contact (Bottom mount) BTIC
BTIC back mount type thermometer with sliding contact SPST is used to control the facility connected to the thermometer. BTIC has wide temperature measuring range (-50 to 600℃), the stem length and outer diameter can be customized upon request, which makes it suitable for various industrial application.
DETAIL
Model: BTIC
Introduction
BTIC back mount type thermometer with sliding contact SPST is used to control the facility connected to the thermometer. BTIC has wide temperature measuring range (-50 to 600℃), the stem length and outer diameter can be customized upon request, which makes it suitable for various industrial application.
Features
■ OEM service
■ Adopts sliding switch SPST with various contact function
■ All stainless steel design
■ Full scale accuracy within ±1.5%F.S.
■ Stem length and outer diameter can be customized upon request
■ With external adjustable screw
■ Dual temperature unit scale℃/℉
Main Specifications
▼Size
3”, 4”, 5”, 6”
▼Installation type
Bottom mount
▼Window
Acrylic
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”,1/2”,3/4”,1”
Thread type: BSPT, NPT, PF
▼Stem
Material: SS304／SS316
Outer diameter: 6.35mm
Length: 63.5mm ~ 2032mm
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable media
Liquid and gas that compatible with SS304
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS304
With external adjustable screw
▼Wiring type
Visual wiring (FL)／Visual magnet base with junction box (JB)／Concealed magnet base with junction box (H)
▼Contact type
Sliding switch SPST
▼Contact function
Single contact N.O. (1a) / Single contact N.C. (1b) / Double contacts N.O.+N.C. (1a1b)／Double contacts N.C.+N.O. (1b1a)／
Double contacts N.O.x2 (2a)／Double contacts N.C.x2 (2b)
For more information please refer to single / double contacts wiring
▼Contact material
80% silver, 20% nickel, 10μm
gold-plated (>110V)
Gold (≦36V)
▼Number of contacts
SPST*1／SPST*2／SPST*4
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Bimetal
Temperature sensing area: last 2”~4”of stem
▼Temperature accuracy
±1.5%F.S. (Option: ±1% F.S.)
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
