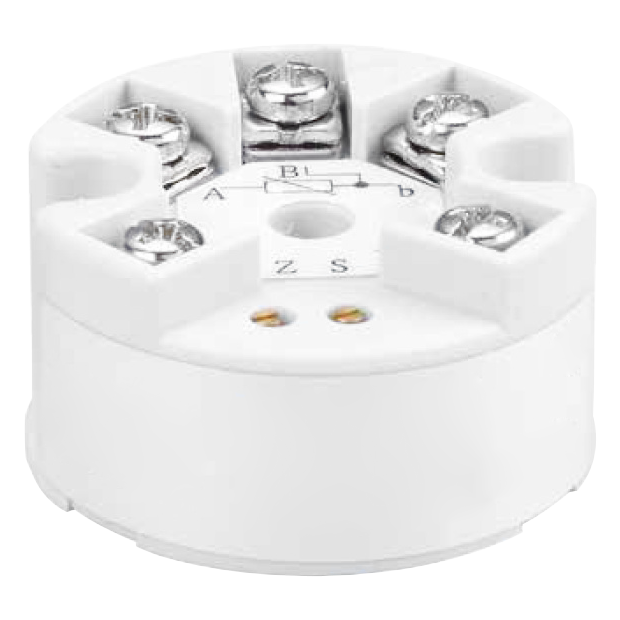

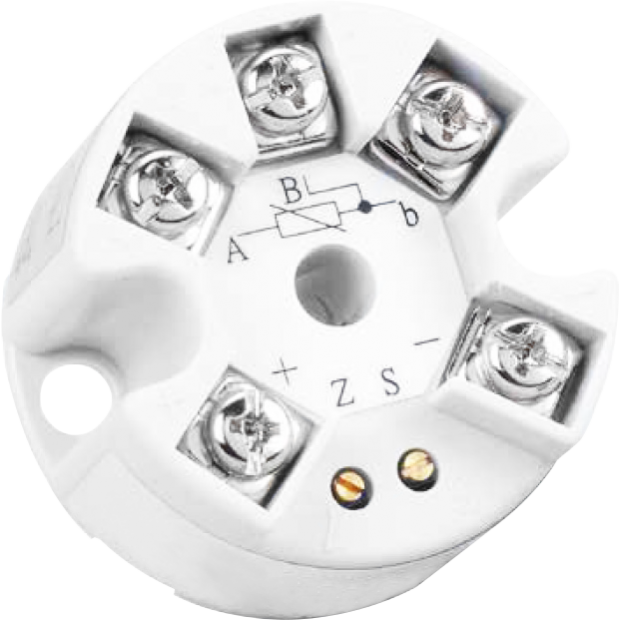

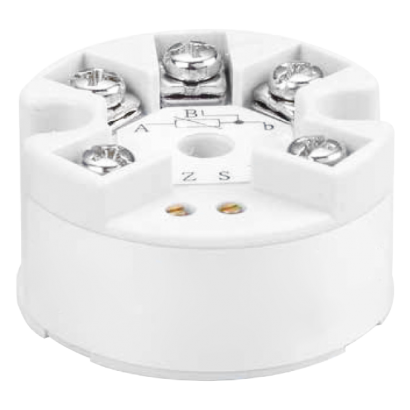

Temperature Transmitter (For head-mounting type) TT-01
Temperature Transmitter (For head-mounting type) TT-01
TT-01 adopts Pt100 as temperature measuring element for linear measurement. To avoid temperature signal attenuation during longdistance transmission, it converts Pt100Ω into standard analog current output 4~20mA DC (2-wire). In this way, a stable and accurate figure can be collected and shown on the display of terminal instrument. The instrument includes PLC, digital display, industrial computer, etc.
DETAIL
Model: TT-01
Introduction
TT-01 adopts Pt100 as temperature measuring element for linear measurement. To avoid temperature signal attenuation during longdistance transmission, it converts Pt100Ω into standard analog current output 4~20mA DC (2-wire). In this way, a stable and accurate figure can be collected and shown on the display of terminal instrument. The instrument includes PLC, digital display, industrial computer, etc.
Features
■ Output signal 4-20Ma
■ Measurable temperature range -50~200℃
■ Adopts Pt100 as temperature measuring elements, ensuring high accuracy±0.1%F.S.
Main Specifications
▼Installation type
Head-mounting
▼Input signal
Pt100 (3-wire)
Cable resistance▼
≤50Ω (3 wires with the same resistance)
▼Output signal
4~20mA (2-wire)
▼Power supply
10~30VDC
Stability▼
±0.025% / V
▼Temperature range
-50~200℃
Other temperature range are available upon request
▼Ambient temperature
-20~60℃
▼Operating humidity
0~95%R.H. (non-condensate)
▼Protection level
Case: IP30
Terminal: IP10
Other Specifications
▼Case
ABS
▼Measuring elements
Pt100
▼Sensor current
<0.8mA
▼Response time
<250ms
▼Zero & span adjustment range
±10%
▼Accuracy
±0.1%F.S.
▼Temperature calibration
20~28℃
▼Temperature drift
<±0.015%F.S./℃
▼Load resistance
≤ (Supply voltage - 8V)/0.02AΩ
Stability▼
±0.05% / 100Ω
▼Pt100Ω signal disconnect protection & output
>23mA
▼Pt100Ω signal short circuit, protection & output
<3mA
▼Weight
40g
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
