Remote Read Micro Thermometer with Coiled Tube RT50 Series
Remote Read Micro Thermometer with Coiled Tube RT50 Series
Features
■ OEM service
■ Compact design with affordable price
■ Suitable for temperature measurement that needs remote reading
■ Full scale accuracy: within ±3.0%F.S
■ Medium-actuated measurement ensuring the fastest reaction to ambient temperature
■ OEM service
■ Compact design with affordable price
■ Suitable for temperature measurement that needs remote reading
■ Full scale accuracy: within ±3.0%F.S
■ Medium-actuated measurement ensuring the fastest reaction to ambient temperature
DETAIL
Model: RT50 Series
Features
■ OEM service
■ Compact design with affordable price
■ Suitable for temperature measurement that needs remote reading
■ Full scale accuracy: within ±3.0%F.S
■ Medium-actuated measurement ensuring the fastest reaction to ambient temperature
Main Specifications
▼Type

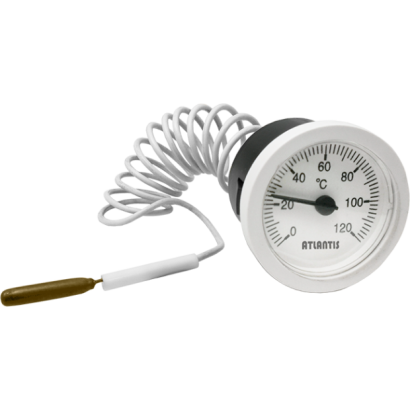

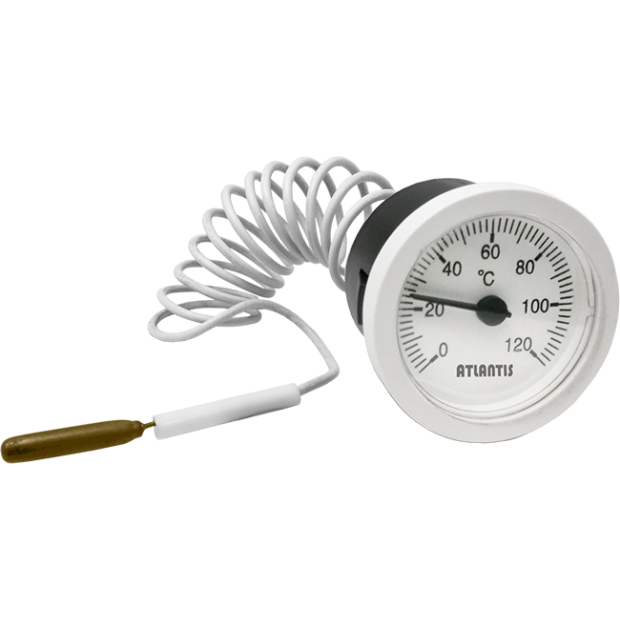

RT50(N): White panel with black scale

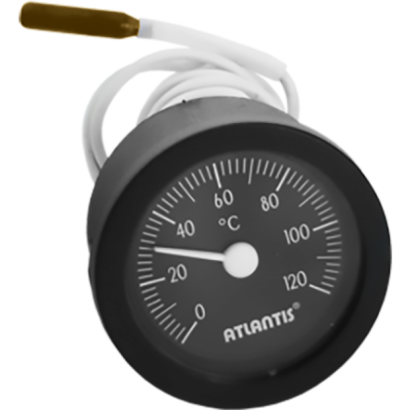

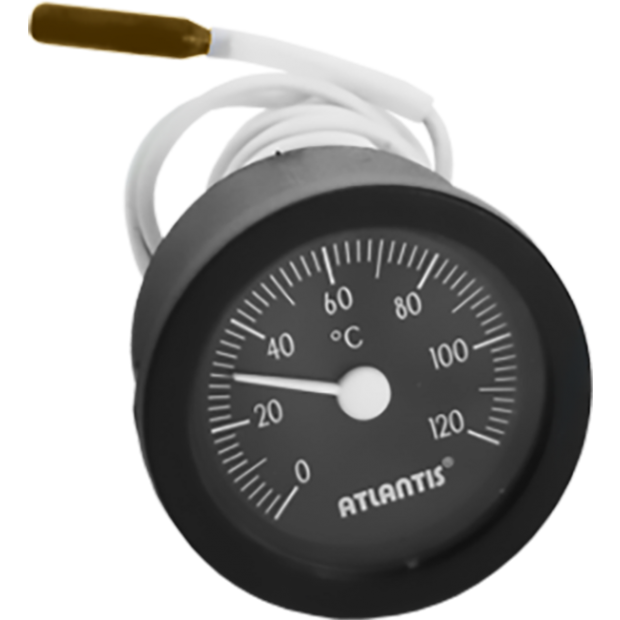

RT50(O): Black panel with white graduations
▼Size
2”
▼Window
PC
▼Mount type
Snap-in design
Secure on socket
▼Stem
Material: copper alloy
Outer diameter 1/4” (6mm)
Length: 32mm
▼Temperature range
Please refer to the temperature range table
(RT50(N) only 0～120℃)
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
ABS
▼Pointer
ABS
▼Measuring elements
Bourdon tube
Material: copper alloy
Liquid-actuated
▼Serpentine pipe
Copper alloy, covered by plastic
Length: 1M+10cm
▼Movement
Copper alloy
▼Temperature accuracy
±3.0%F.S.
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
