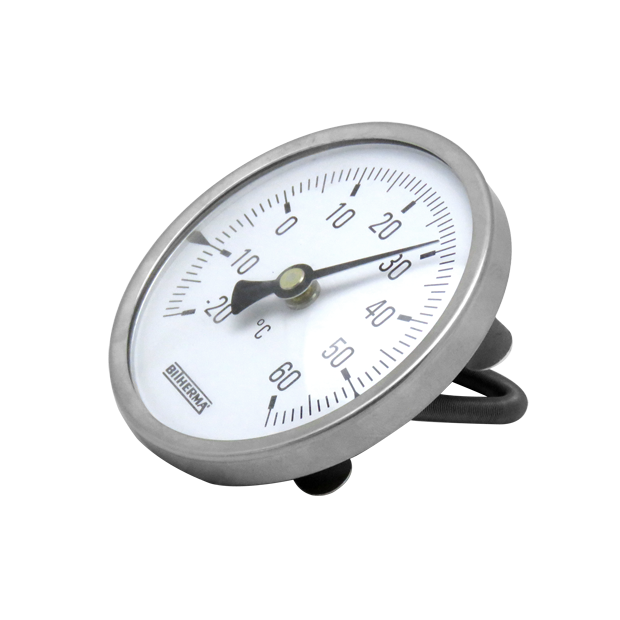

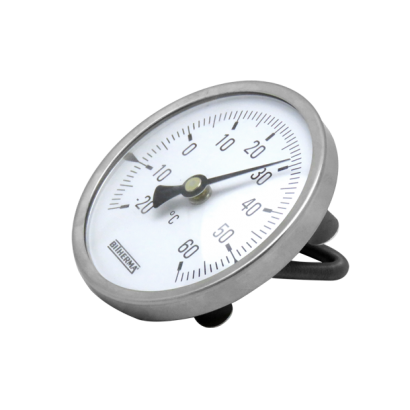

Pipe-Clamp Surface Thermometer BT-SM
Pipe-Clamp Surface Thermometer BT-SM
Features
■ Original imported from German BITHERMAL brand
■ Clamp on pipes surface with a spring instead of intrusive method
■ All stainless steel design
■ Clamp on 1”-2”pipes with spring to measure surface temperature
■ Original imported from German BITHERMAL brand
■ Clamp on pipes surface with a spring instead of intrusive method
■ All stainless steel design
■ Clamp on 1”-2”pipes with spring to measure surface temperature
DETAIL
Model: BT-SM
Features
■ Original imported from German BITHERMAL brand
■ Clamp on pipes surface with a spring instead of intrusive method
■ All stainless steel design
■ Clamp on 1”-2”pipes with spring to measure surface temperature
Main Specifications
▼Size
Standard: 2.5”, 3”
Option: 2”, 4”
▼Window
Glass (with raised edge)
With O-ring sealed
▼Temperature range
Please refer to temperature range table
Min.: -40°C
Max.: +400°C

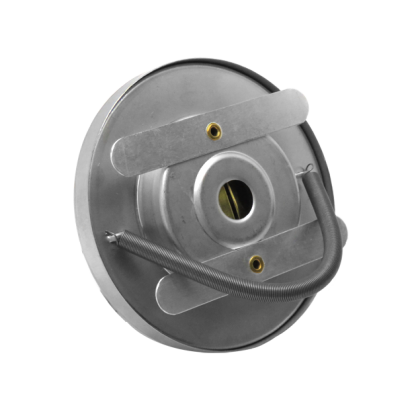

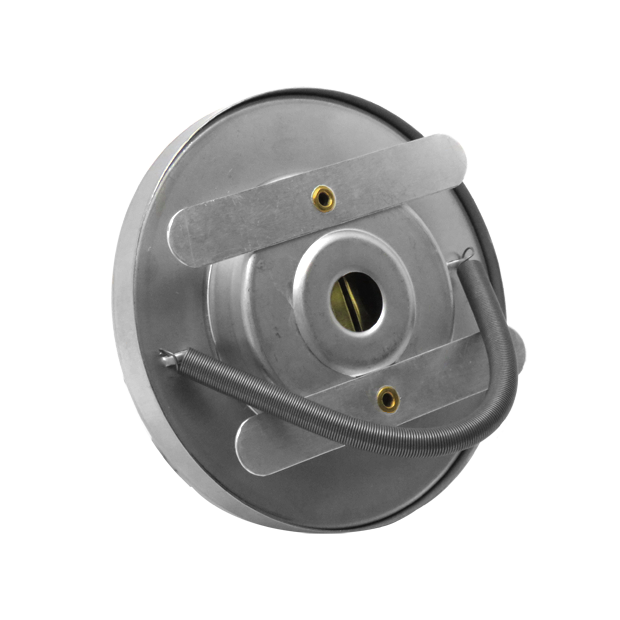

▼Mount type
Back mount with spring
▼Spring size
4.9 x 92.3 mm
(For larger pipe diameter, larger spring size is available upon request)
▼Application
Clamp on 1”-2”pipes with
spring
▼Protection level
IP 54
Other Specifications
▼Housing
Stainless steel
▼Bezel
Stainless steel
▼Back housing
Stainless steel
▼Pointer
Aluminum with black enamel
Adjustable pointer

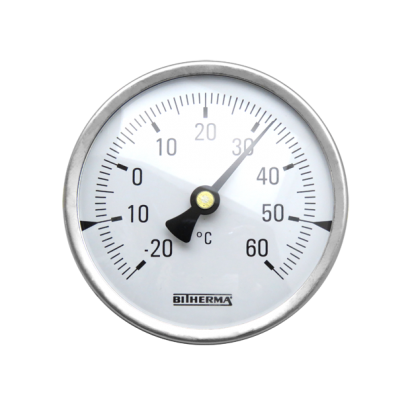

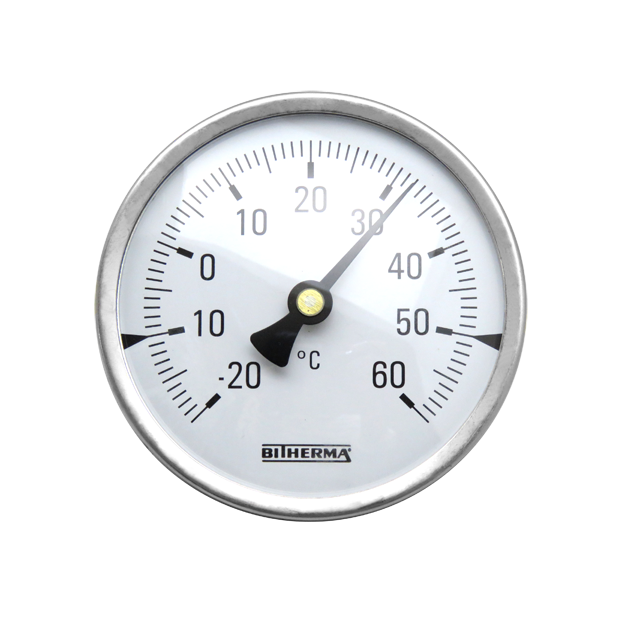

▼Dial face
Aluminum with white enamel
All black scale
▼Measuring elements
Bi-metal spiral spring
▼Temperature accuracy
2%
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
