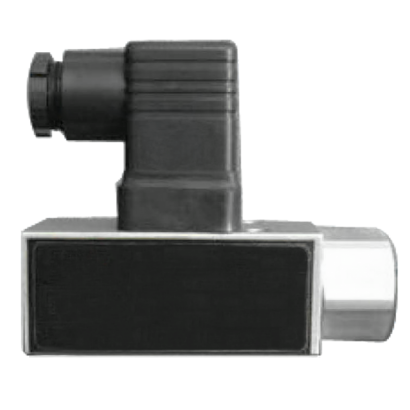

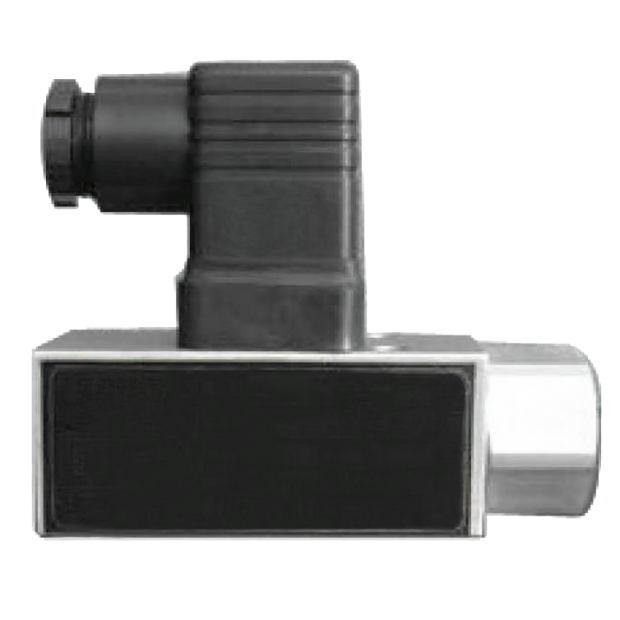

Mechanical Compact Pressure Switch AT505-18D
Mechanical Compact Pressure Switch AT505-18D
AT505-18D pressure switch adopts no leakage steel piston as pressure sensor, which is applicable to hydraulic oil, lubricating oil, light fuel oil and other neutral lubricating media. Adjustable set point range 0.5⋯40MPa.
DETAIL
Model: AT505-18D
Introduction
AT505-18D pressure switch adopts no leakage steel piston as pressure sensor, which is applicable to hydraulic oil, lubricating oil, light fuel oil and other neutral lubricating media. Adjustable set point range 0.5⋯40MPa.
Features
■ OEM service
■ Set point field adjustment, adjustable range 0.5⋯40MPa
■ Adopts no leakage steel piston as pressure sensor
■ High switch frequency: 100 times/min
Main Specifications
▼Pressure connection
Material: stainless steel
Thread spec.: G1/4”
Other thread spec. are available upon request
▼Installation
Bottom mount (15° tilt angle is acceptable)
▼Adjustable set point range
0.5…40MPa
For detail please refer to adjustable set point range table
▼Applicable media
Neutral lubricating media
▼Ambient temperature
-25 to 55℃
▼Media temperature
-25 to 80℃
▼Vibration-proof performance
Max. 100m/s2
▼Protection level
IP54
Other Specifications
▼Case
Die casting aluminum
▼Measure element
Piston
Material: Steel
NBR O-ring
▼Switch type
SPDT micro switch
▼Switching frequency
100 times/min
▼Repeatability
≤2.5%
▼Contact rating
AC220V, 6A (resistive load)
▼Weight
0.2kg
▼Other request (Option)
Third party notarized documents
Inspection report
