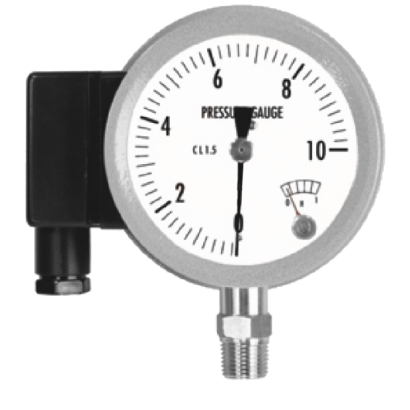

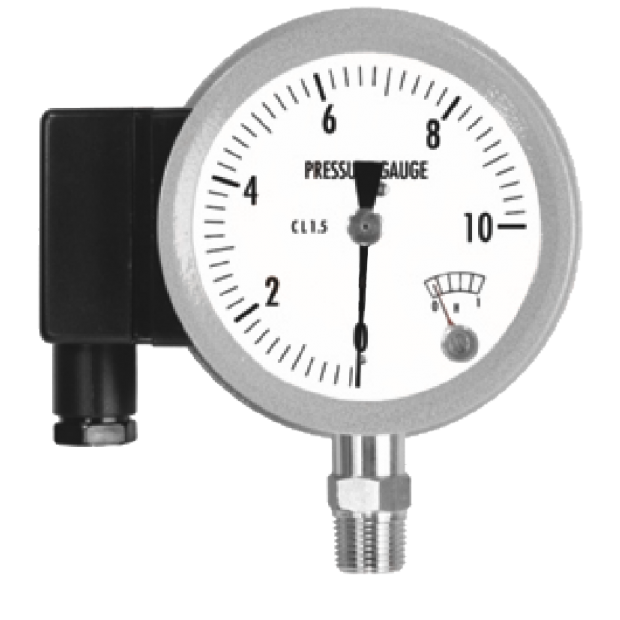

All Stainless Steel Pressure Gauge with Electrical Contact (Micro-switch Type) MSPS
All Stainless Steel Pressure Gauge with Electrical Contact (Micro-switch Type) MSPS
MSPS contact adopts micro switch, it has better indicate accuracy, set point accuracy, and repeatability error than other contact pressure gauge. It is suitable for all kinds of pressure measurement, alarm system, industrial special oil production line.
DETAIL
Model: MSPS
Introduction
MSPS contact adopts micro switch, it has better indicate accuracy, set point accuracy, and repeatability error than other contact pressure gauge. It is suitable for all kinds of pressure measurement, alarm system, industrial special oil production line.
Features
■ OEM service
■ Micro switch, SPDT x1, SPDT x2, DPDT x1 for selection
■ Gauge accuracy ±1.5%F.S. , set point accuracy ±3.0%F.S.
■ Adjustable set point (any point on full scale)
Main Specifications
▼Size
4”(100mm) ／6”(150mm)
▼Installation type
Bottom mount／Bottom mount with flange／Back mount with flange
▼Window
Safety glass
▼Pressure connection
Material: SS304 (std.)／SS316 (option)
Size: 3/8”, 1/2”
Specifications: PT, NPT, PF
▼Electrical connector
Hirschmann connector DIN 43650
▼Pressure range
Gauge pressure▼
0…350bar
0….1000bar (Only for 6”)
Negative pressure▼
-1…0bar
Compound pressure▼
-1…0 to 20bar
▼Operating temperature
-20℃ to +65℃
▼Applicable media
Liquid and gas that compatible with the connection
▼Protection level
IP54
▼Optional accessory
Installation rack
Other Specifications
▼Case & bezel material
SS304
▼Measuring elements
Bourdon tube
Material: SS316
▼Measuring elements
Bourdon tube
Material : SS304(std.) / SS316(option)
▼Movement
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
White dial face, all black scale (customized available upon request)
▼Gauge accuracy
±1.5%F.S.(std.)
±1.0%F.S. (option)
▼Switch set point accuracy
±3.0%F.S
▼Contact switch type
SPDT x1 (std.)
SPDT x2／DPDT x1 (option)
Adjustable set point (any point on full scale)
▼Contact switch rated voltage
AC 110V, 5A／220V, 3A
▼Contact material
Pure silver 999.9
▼Operating voltage
AC: Max. 250 VAC
DC: Max. 28 VDC
▼Operating pressure
Stable: 3/4*F.S.
Fluctuation: 2/3*F.S.
Transient: 1*F.S.
Overpressure: 1.3*F.S.
