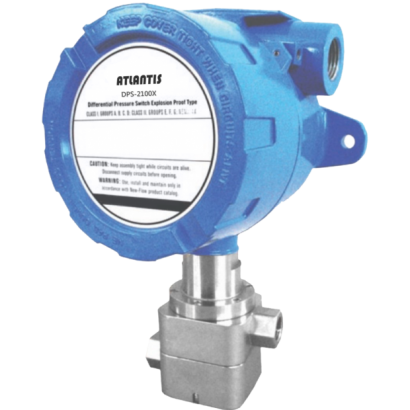

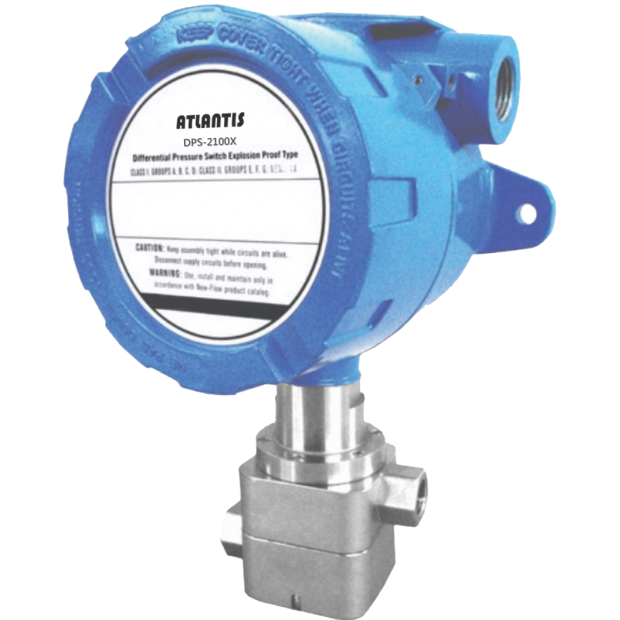

Differential Pressure Switch DPS-2100X
Differential Pressure Switch DPS-2100X
DPS-2100X Differential Pressure Switch with explosion-proof design is suitable for process control system. It features various pressure range with easy operation and installation.
DETAIL
Model: DPS-2100X
Introduction
DPS-2100X Differential Pressure Switch with explosion-proof design is suitable for process control system. It features various pressure range with easy operation and installation.
Features
■ Explosion-proof type differential pressure switch
■ Various differential pressure range selection
■ High set point repeatability
■ Easy set point adjustment, no special tools needed
■ All wetted part adopts SS316
Main Specifications
▼Pressure connection
Material: SS316
1/2”NPT (female)
1/4”NPT (female)
▼Conduit connection
3/4”NPT (female)
1/2”NPT (female)
▼Adjustable setting range
0…3 to 500psi
For detail please refer to range selection table
▼Dead band
0.15~25 psi
For detail please refer to range selection table
▼Applicable fluid
Liquid and gas that compatible with SS316
▼Ambient temperature
-10°C to +55°C
▼Fluid temperature
-30°C to +205°C
▼Protection level
IP68
Other Specifications
▼Housing
Die casting aluminum
▼Measuring elements
Welded type diaphragm
▼Switch type
SPDT x1
SPDT x2 (one setting point)
▼Contact rating
15A, 125/250VAC
0.4A, 125VDC
3A, 30VDC
1A, 125/250VAC (gold contact)
▼Max. operating pressure
1000psi
▼Other requests (Option)
Third party notarized document
Inspection report (issued by Re-Atlantis)
Tag
Gold contact (SPDT)
