All Stainless Steel Pressure Gauge SUS

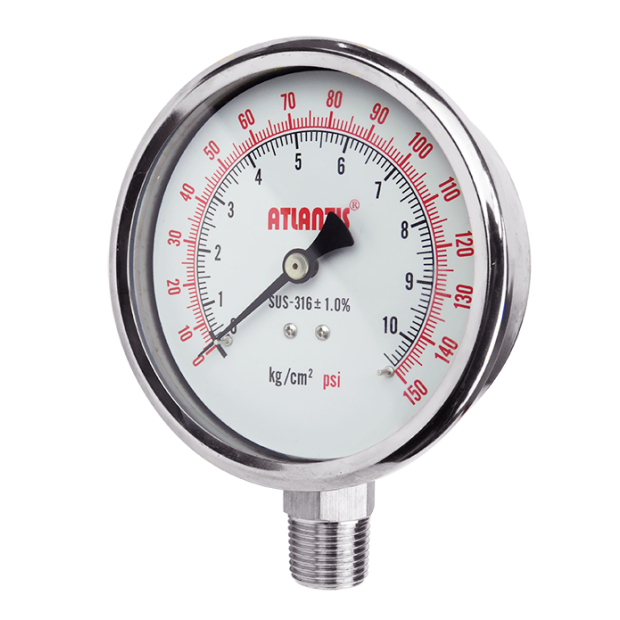

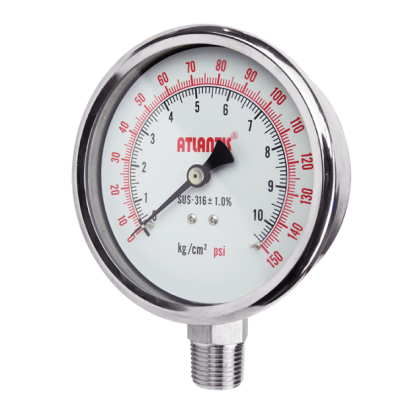

All Stainless Steel Pressure Gauge Model: SUS

Introduction
SUS pressure gauge has various size and installation type for selection. It applicable to measure slight corrosive media that compatible with stainless steel. Particularly used in chemical, petrochemical, food industry, biochemistry and any rush industries.

Features
■ OEM Service
■ All stainless steel design
■ Multiple choices of size and thread gauge, suitable for various installation environment
■ Filled with liquid to improve vibration-proof performance and service life (option)
■ Install blow out disk or use safety glass to ensure safety operation

Main Specifications
▼Size
1.5”, 2”, 2.5”, 3”, 4”, 6”, 8”, 10”
▼Installation type
Bottom mount (A) / Bottom mount with back flange(B) / Back mount (Centric thread) (ADC) / Back mount (Eccentric thread) (ADE) / Back mount with front flange (Centric thread) (BDC)／Back mount with front flange (Eccentric thread) (BDE) / Back mount with U-Clamp (Centric thread) (UDC)／Back mount with U-Clamp (Eccentric thread) (UDE)／Back mount with front flange and U-Clamp (Centric thread) (UBDC) / Back mount with front flange and U-Clamp (Eccentric thread) (UBDE)
▼Window
PC／Glass
Option: Safety glass
▼Pressure connection
Material: SS316
Thread size:
1/8”, 1/4”, 3/8”, 1/2”
Thread type:
BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar
(> 1000bar is available madeto-order)
Negative pressure▼
-1…0bar／-76…0cmHg
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with stainless steel
▼Ambient temperature
Dry: -40℃~60℃
Glycerin-filled: -20℃~60℃
Silicone oil-filled: -40℃~60℃
▼Media temperature
Dry: +100℃
Glycerin filled: +100℃
Silicon oil filled: +100℃
<Silicon oil filled type can be for medium +200℃ only if the case and connection are welded together (argonarc welding), available forΦ2.5” ~ 10”>
▼Liquid-filling
Dry
Glycerin
Silicone oil
Oil-free treatment

Other Specifications
▼Ring
Stainless steel
▼Ring mount
Crimp／Bayonet／Snap-in
For more details please check
Size-Ring table
▼Housing
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Other pressure unit, scale & color available upon request
▼Measuring elements
Bourdon tube
Material : SS316
▼Protection design (option)
Blow out disk
▼Movement
Stainless steel
▼Accuracy
±2.0% F.S. for (Φ1.5”, 2” )
±1.5% F.S. for( Φ2” ~ 3”)
±1.0% F.S. for (Φ3” ~ 10”)
▼Operating pressure
Stabilization 3/4* full scale
Fluctuation 2/3* full scale
Impulse 1* full scale
▼Other requests
Third party notarized documents
Inspection report Tag
Customized dial face (scale, color, unit, etc.)
Install a diaphragm
Dampened movement
Window – Safety glass (Only available for size >4”)
Peak hold pointer
Case material: SS316
External indicator (Red, green, yellow)
Adjustable pointer (Only available for size >4”)
Blow out disk
