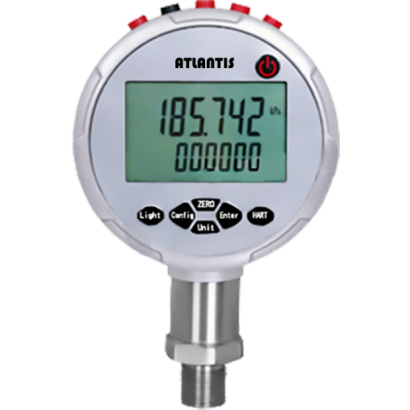

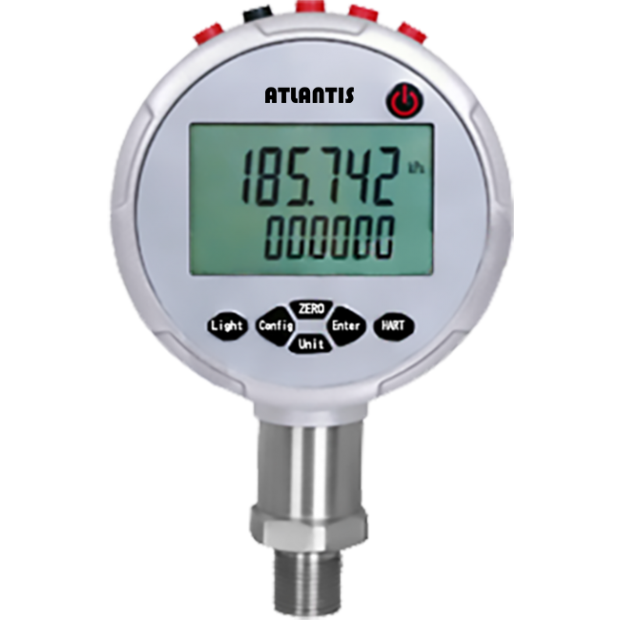

Intelligent pressure calibrator IPC-801
Intelligent pressure calibrator IPC-801
IPC-801 intelligent pressure calibrator features high accuracy in pressure, voltage and current measurement. IPC-801 is suitable in calibrate general/ precision pressure gauge, pressure and differential transmitter, pressure adjustment valve and pressure switch.
DETAIL
Model: IPC-801
Introduction
IPC-801 intelligent pressure calibrator features high accuracy in pressure, voltage and current measurement. IPC-801 is suitable in calibrate general/ precision pressure gauge, pressure and differential transmitter, pressure adjustment valve and pressure switch.
Features
■ High accuracy in pressure, voltage and current measurement
■ Nine switchable pressure units
■ In-built a pressure transmitter
■ Two point field calibration for easy operation
■ Data record/saving and debug function
■ HART communication (option)
Main specifications
▼Dimension
114 x 39
Length:180mm
▼Pressure connection
1/2”PT
Material: SS316
▼Pressure type
Gauge pressure / Differential pressure / Compound pressure
▼Pressure range
Gauge pressure:
Min. :-100kPa
Max.: 250MPa
Differential pressure:
Min.: 60Pa
Max: 10kPa
Compound pressure: -100…0 to 250 kPa
▼Applicable media
< 250 kPa: Pure, non-corrosive gas
> 250 kPa: Liquid and gas that compatible with SS 316
▼Ambient temperature
-20 to 70℃
▼Storage temperature
-40 to 85℃
▼Fluid temperature
-10°C to +50°C
▼Relative humidity
<95%RH
▼Atmospheric pressure
860…1060 mbar
Other specifications
▼Body material
Aluminum die casting
▼Screen display
6-digit LCD
Backlight on/off
Reset to zero function
▼Pressure unit (Switchable)
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
▼Communication protocol
RS232
(Option: USB to RS232 converter)
▼Power supply
Rechargeable lithium battery or specialized power adapter
Battery life: about 100hrs
Charging period: 3hrs
▼Current measurement
25.0000mA
Accuracy: ±(0.02Readings+0.003%F.S.)
▼Voltage measurement
25.0000V
Accuracy: ±(0.02Readings+0.003%F.S.)
▼Switch measurement
Makes/Breaks
Voltage range: 1~12V
▼Power output
Range: DC24V±0.5V
Maximum current 50mA
Overcurrent protection 120mA
▼Compensated temperature
0°C to 50°C (standard)
▼Weight
0.6kg
