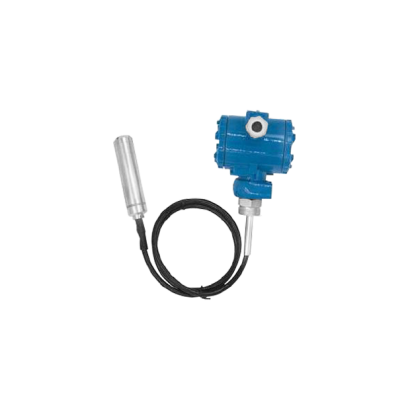

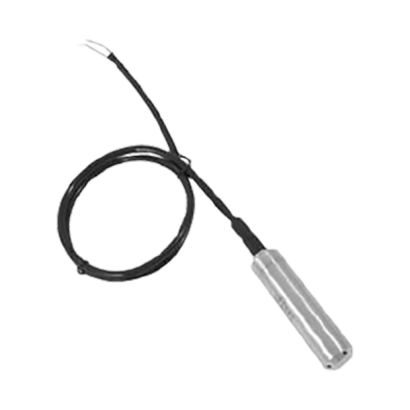

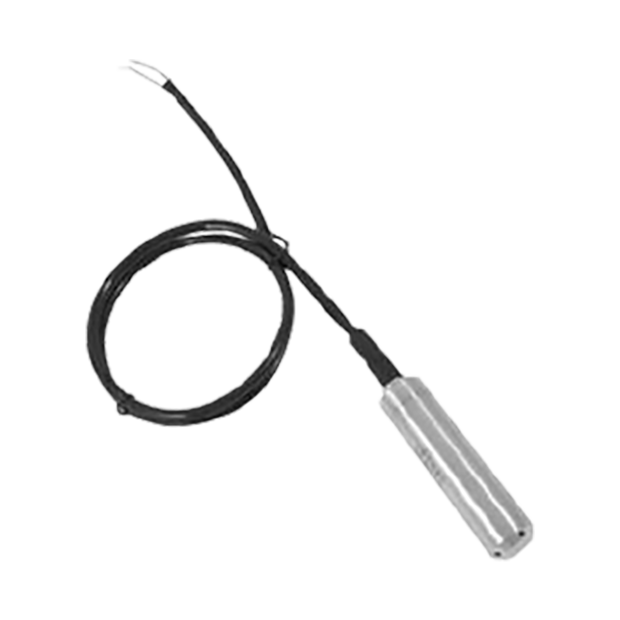

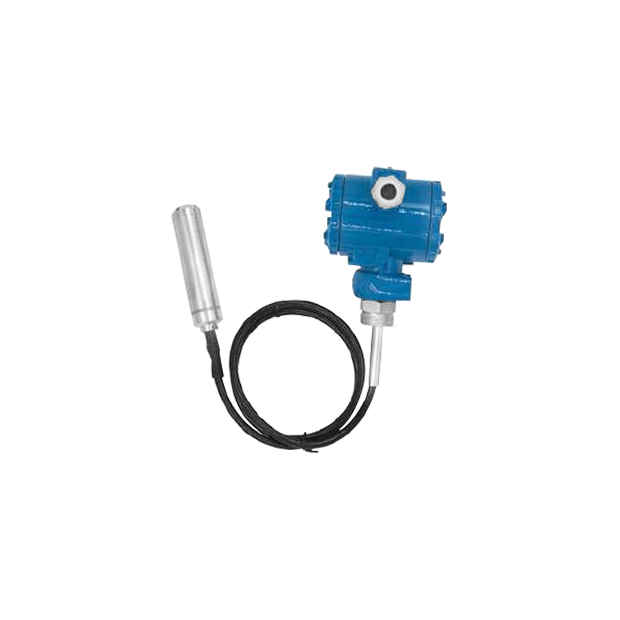

Submersible Level Transmitter LPT-260
Submersible Level Transmitter LPT-260
LPT-260 submersible level transmitter adopts high performance piezoresistive silicon chip as the measuring element to measure static pressure of the liquid proportional to the level depth.
DETAIL
Model: LPT-260
Introduction
LPT-260 submersible level transmitter adopts high performance piezoresistive silicon chip as the measuring element to measure static pressure of the liquid proportional to the level depth.
Features
■ OEM service
■ Submersible transmitter for liquid level measurement
■ Wide measurement range: 0⋯0.5 ~ 200mH2O
■ Compact design with easy installation
■ High accuracy and stability
■ Anti-corrosive stainless steel adopted, applicable to various industry fields
■ Multiple rigid structure design ensures high protection ability
Main Specifications
▼Electrical connection
Cable outlet with polyurethane wire
▼Measurement range
0…0.5~ 200mH2O
▼Applicable fluid
Liquid that compatible with SS304
▼Operating temperature
-20 to 85℃
▼Media temperature
-20 to 100℃
▼Storage temperature
-40 to 125℃
▼Vibration resistance
20g (20 to 5000Hz)
▼Shock resistance
100g (11ms)
▼Protection level
IP 67
▼Application
Level measurement
Petroleum, chemical, electrical industry
Hydraulic / pneumatic system
Energy and water treatment
Auto control equipment
Industrial process control
Other Specifications
▼Probe
SS304
▼Case
Stainless steel
▼Output signal
4~20mA
1-5V
0-5V
▼Measuring elements
Piezoresistive silicon chip SS316L diaphragm
▼Temperature compensation
0 to 60℃ (0 to 10mH2O)
-10 to 70℃ (10m to 200mH2O)
▼Power supply
24VDC / 12VDC
▼Insulation
200MΩ/250VDC
▼Response time
≤ 1ms
▼Zero & span temp. drift
±1.5% F.S. max (within compensated temperature)
▼Accuracy (include non-linearity, hysteresis and repeatability)
±0.5% F.S.
▼Stability
≤ 0.2% F.S.
▼Overpressure
1.5*F.S.
